Tplink TL-FC111A20 Dubai

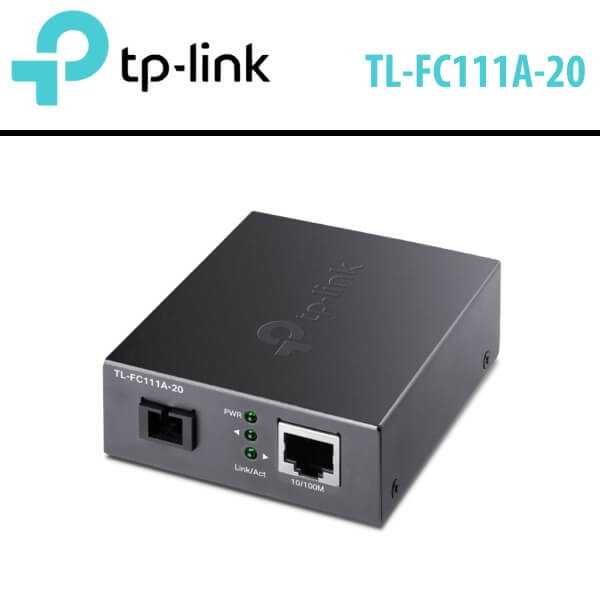

The Tplink TL-FC111A20 Dubai is a versatile 100M media converter equipped with both a 100M RJ-45 port and a 100M SC fiber port, enabling seamless conversion between electrical and optical signals. This capability makes it ideal for long-distance data transmission via optical fiber, making it well-suited for various commercial applications such as park security monitoring and wireless networking.

One of the standout features of the Tplink TL-FC111A20 Dubai is its utilization of WDM (wavelength division multiplexing) technology. This technology empowers the converter to transmit and receive data over a single fiber at distances of up to 20km (12.4 miles). By doing so, it significantly reduces cable deployment costs for customers. Specifically, the Tplink TL-FC111A20 Dubai transmits data at a wavelength of 1550nm and receives data at 1310nm over optical fiber. Its counterpart at the other end of the connection performs the reverse operation, receiving data at 1550nm and transmitting data at 1310nm. This innovative approach maximizes efficiency and cost-effectiveness in data transmission.

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • 9/125 μm SMF (Single-Mode Fiber)
  • Bidirectional WDM communication on a single fiber
  • Ranges up to 20km (12.4 miles)
  • Work with TL-FC111B-20 as a pair

Technical Specs

HARDWARE FEATURES
Interface 1× 100 Mbps SC Fiber Port

1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)

Network Media 100BASE-Tx : 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply External Power Adapter : 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 94.5*73*27 mm
Wave Length 1550 nm TX, 1310 nm RX
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function Auto-negotiation of half-duplex / full-duplex transfer mode

Full-duplex flow control (IEEE 802.3x)

Half-duplex flow control (Backpressure)

Extends fiber distance up to 20km (12.4 miles)

Ports 1x 100M single SC/UPC port

1x 10/100M RJ45 port (Auto MDI/MDIX)

WDM TX 1550 nm
WDM RX 1310 nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-FX Single-mode fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External Power Adapter : 5 V/0.6 A
Safety & Emission FCC, CE, RoHS
Fiber Type 9/125 μm single-mode fber (≤20 km)
Environment Operating Temperature : 0℃~50℃ (32℉~122℉)

Storage Temperature : -40℃~70℃ (-40℉~158℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90% non-condensing

NETWORK
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
OTHERS
Package Contents Media Converter TL-FC111A-20

Power Adapter

Installation Guide
