Tplink TL-FC311A2 Dubai

Tplink TL-FC311A2 Dubai

The Tplink TL-FC311A2 Dubai boasts an impressive range of up to 1.2 miles when employed with a 9/125µm single-mode fiber cable, while also supporting the use of extended 328-foot Cat 5/5e Ethernet cables.

Category:

Description

Tplink TL-FC311A2 Dubai

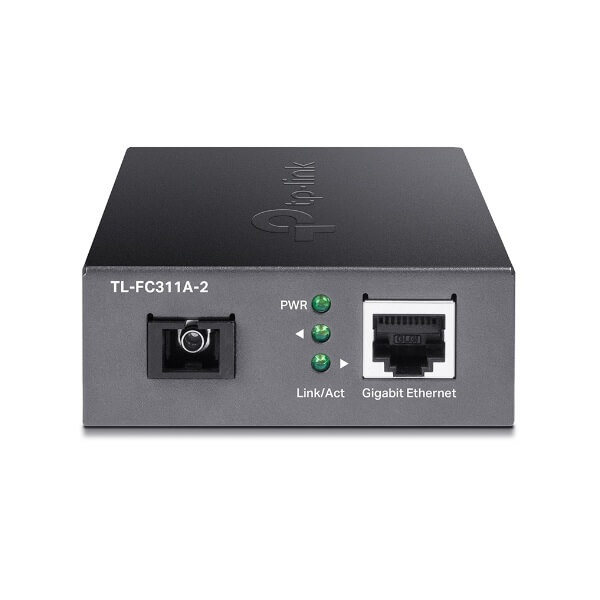

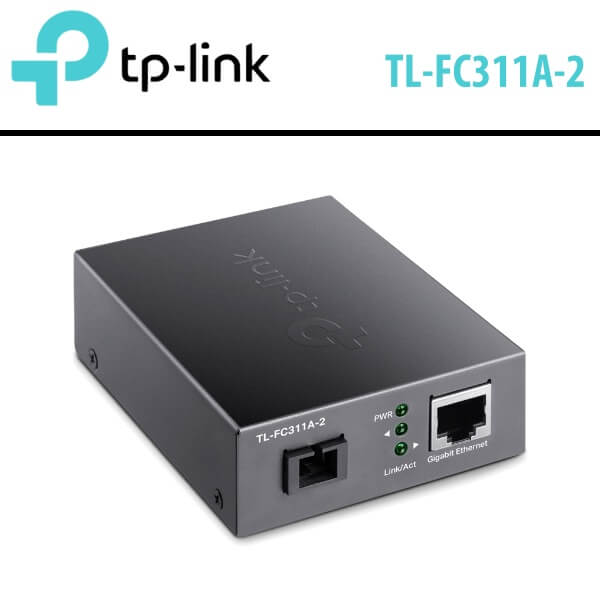

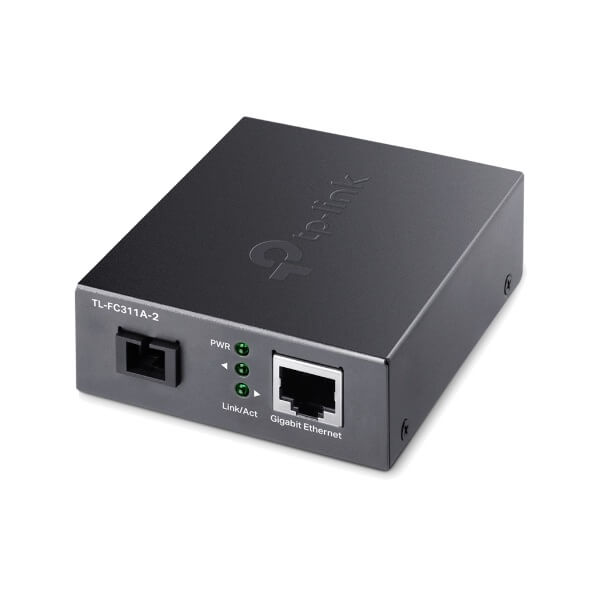

The Tplink TL-FC311A2 Dubai Gigabit WDM Media Converter empowers you to seamlessly transform Gigabit Ethernet RJ45 electrical signals into optical signals via its Gigabit SC fiber port. Specifically designed to facilitate long-distance video surveillance and other data transmissions, the Tplink TL-FC311A2 Dubai boasts an impressive range of up to 1.2 miles when employed with a 9/125µm single-mode fiber cable, while also supporting the use of extended 328-foot Cat 5/5e Ethernet cables with its RJ45 port.

Operating at a frequency wavelength of 1550nm for transmission and 1310nm for data reception, the Tplink TL-FC311A2 perfectly complements the TP-Link TL-FC311B-2 WDM Media Converter. Moreover, it intelligently negotiates between half- and full-duplex modes, ensuring seamless and efficient data transfer.

Features

  • Ethernet 1000Base-SC, Ethernet 1000Base-T, WDM Cabling
  • Supports Gigabit Ethernet Networking
  • Data Transfer Speeds up to 1Gbps

Specifications

NETWORK
Standards and Protocols IEEE 802.3i, 802.3u, 802.3ab, 802.3z
ENVIRONMENT
Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
HARDWARE FEATURES
Interface 1× Gigabit SC Fiber Port

1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

Network Media Single-mode Fiber

UTP category 5, 5e cable (maximum 100m)

Power Supply External Power Adapter : 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 3.7×2.9×1.1 in (94.5×73.0×27.0 mm)
Wave Length 1550 nm TX, 1310 nm RX
MEDIA CONVERTER & MODULE
Fiber Type 9/125 μm single-mode fiber (≤2 km)
OTHERS
Package Contents Media Converter TL-FC311A-2

Power Adapter

Installation Guide
