Tplink TL-POE10R Dubai

Tplink TL-POE10R Dubai

The Tplink TL-POE10R Dubai PoE Splitter is fully in accordance with the IEEE 802.3af standard and is compatible with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapters. Examples of such adapters include TP-LINK’s T1600G-52PS, TL-SG1008PE, TL-POE150S, and similar products.

Category:

Description

Tplink TL-POE10R Dubai

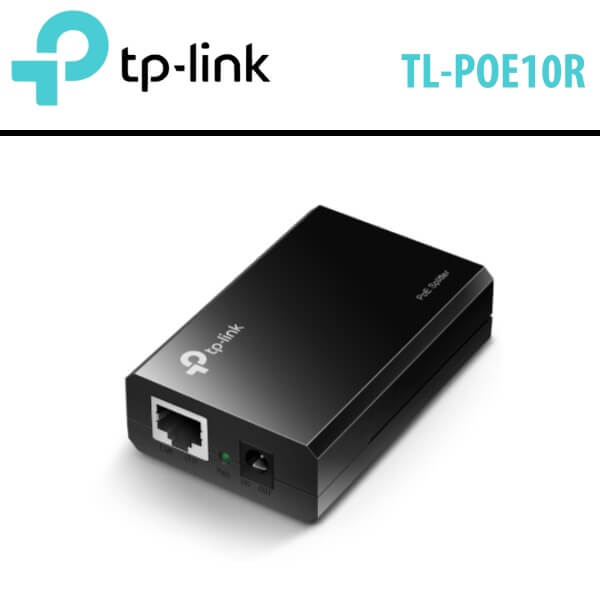

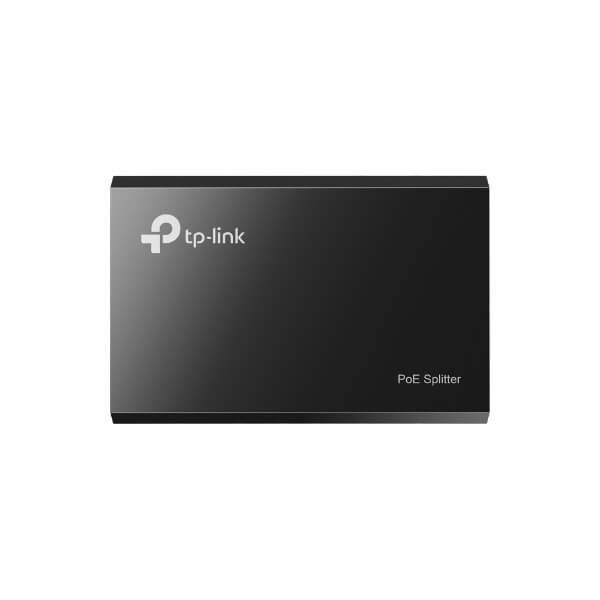

The Tplink TL-POE10R Dubai PoE Splitter is fully in accordance with the IEEE 802.3af standard and is compatible with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapters. Examples of such adapters include TP-LINK’s T1600G-52PS, TL-SG1008PE, TL-POE150S, and similar products. This PoE Splitter efficiently delivers 12V, 9V, or 5V Direct Current to locations lacking power lines or outlets, enabling you to connect devices like access points, IP cameras, or IP phones where needed.

Features

  • IEEE 802.3af compliant
  • Output :  12VDC 1A, 9VDC 1A, 5VDC 2A selectable
  • Gigabit speed support
  • Plug-and-Play, requires no configuration

Technical Specs

HARDWARE FEATURES

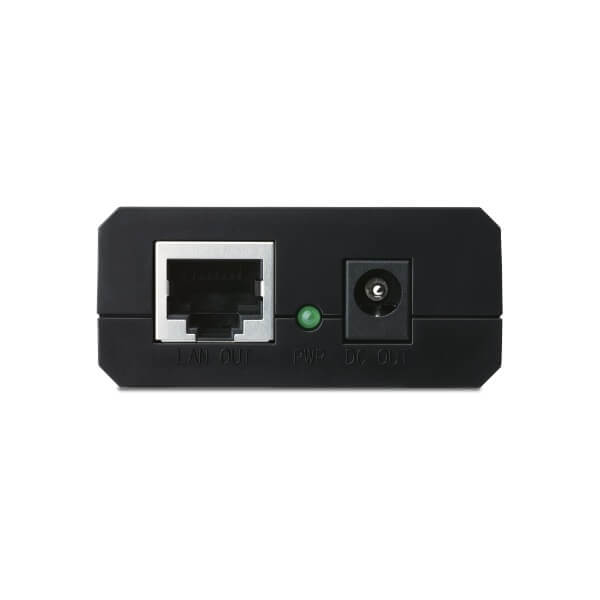

Interface 2 10/100/1000Mbps RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

1 POWER OUTPUT PORT (5.5 mm round barrel)

Network Media 10BASE-T : UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX : UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

1000BASE-T : UTP category 5, 5e, 6 cable (Max 100m)

Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
Basic Function Compatible With IEEE 802.3af Compliant PSEs

Delivers Power Up To 100 Meters

Optional 12VDC, 9VDC or 5VDC Power Output

LED Indicator PWR
Dimensions ( W x D x H ) 3.2 × 2.1 × 0.9 in.
(81 × 54 × 24 mm)
SOFTWARE FEATURES
Basic Function Compatible with IEEE 802.3af compliant power sources (PSE)

Delivers power up to 100 meters

Selectable 12VDC, 9VDC or 5VDC power output

OTHERS
Certification FCC, RoHS
Package Contents PoE Splitter TL-POE10R

Power Cord

RJ45 Cable

Installation Guide

Environment Operating Temperature : 0℃~40℃ (32℉~104℉)

Storage Temperature : -40℃~70℃ (-40℉~158℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90% non-condensing
