Description

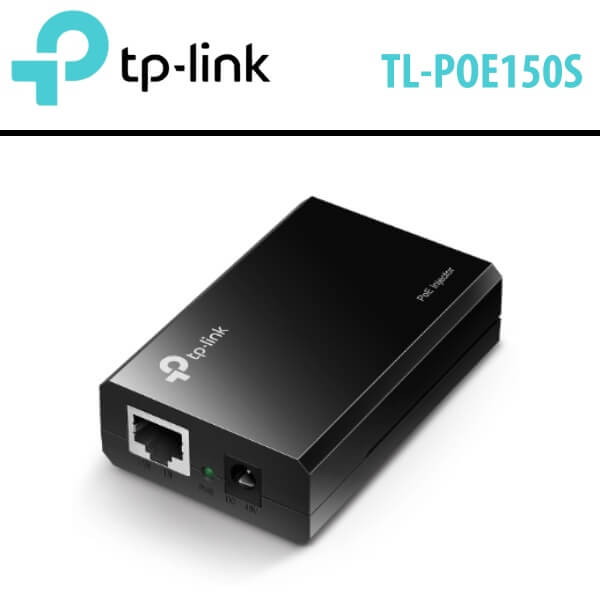

Tplink TL-POE150S Dubai
The Tplink TL-POE150S Dubai Power Over Ethernet Injector by TP-Link empowers you to extend your internet connectivity to previously inaccessible areas in your network. This versatile device allows you to effortlessly connect your existing non-PoE router or switch to the injector. Once connected, you can then use an Ethernet cable to directly link your PoE-compatible device to the injector, benefiting not only from the data connection but also the power supply delivered by the Tplink TL-POE150S Dubai.
In addition to supplying power to compatible PoE devices, the Tplink TL-POE150S Dubai offers advanced features such as power classification and robust safety measures, including short circuit protection. Its intelligent auto-sensing algorithm ensures compliance with 802.3af standards, making it a seamless addition to your current network setup. With power classification support, the Tplink TL-POE150S Dubai can automatically detect and provide the necessary power levels for your connected devices, while the integrated short circuit protection ensures a secure PoE solution. This injector’s adherence to 802.3af standards guarantees smooth integration into your existing network configuration.
Features
Power Over Ethernet
PoE or Power Over Ethernet describes a system to pass electrical power safely along with data, on Ethernet cabling. This Tplink TL-POE150S Dubai power over Ethernet injector makes it possible to turn a standard switch or router into a PoE compatible device effectively providing a power source through existing Ethernet cabling.
PoE Compatibility
The Tplink TL-POE150S Dubai PoE Adapter can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) to expand your network to where there are no power lines or outlets, where you wish to fix devices like Wireless Access Points, IP Cameras, or IP Phones, etc.
Plug & Play Installation
Configuration of the Tplink TL-POE150S Dubai is simple. Utilize the included power adapter to plug the device into an existing outlet. Once plugged in, utilize the LAN In port to plug in your non-PoE router or switch. Then plug your Wireless Access Point, IP Camera, or IP Phone, etc. into the TL-POE150S to take full advantage of PoE capabilities.
Technical Specs
| Type | Injector |
| General | |
| Connectors | 1 x RJ45 Gigabit Ethernet (Input)
1 x DC Barrel (Input) 1 x RJ45 Gigabit Ethernet PoE (Output) |
| Supported IEEE Standards | 802.3, 802.3af, 802.3u |
| Electrical | |
| DC Input Power | VDC at 0.35 A |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | CE, FCC |
| Physical | |
| Maximum Operating Distance | 328.1′ / 100 m |
| LED Indicators | Yes |
| Dimensions | 3.2 x 2.0 x 0.9″ / 82.0 x 52.0 x 24.0 mm |
| Packaging Info | |
| Package Weight | 0.73 lb |
| Box Dimensions (LxWxH) | 7.85 x 6.7 x 2.55″ |
