Tplink TL-POE160S Dubai

Tplink TL-POE160S Dubai

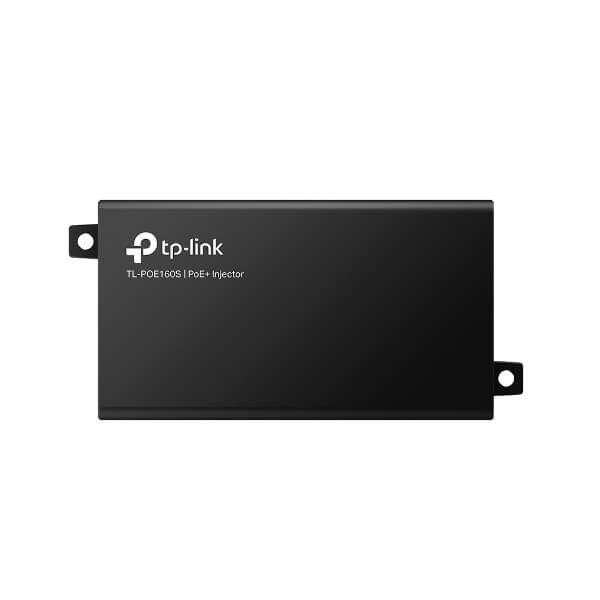

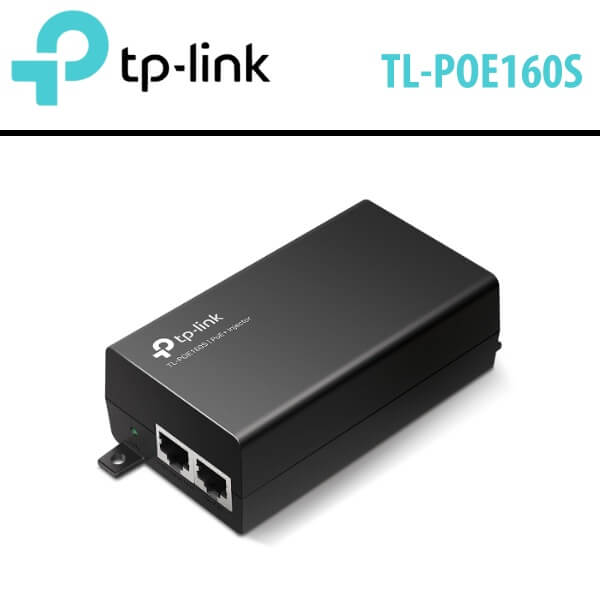

The Tplink TL-POE160S Dubai PoE+ Injector is in full compliance with IEEE 802.3af/at standards. It seamlessly pairs with any IEEE 802.3af/at PoE compatible Powered Devices (PDs) or PoE Receiver Adapters.

Category:

Description

Tplink TL-POE160S Dubai

The Tplink TL-POE160S Dubai PoE+ Injector is in full compliance with IEEE 802.3af/at standards. It seamlessly pairs with any IEEE 802.3af/at PoE compatible Powered Devices (PDs) or PoE Receiver Adapters. This enables you to extend your network to locations where there is no access to power lines or outlets. It’s an ideal solution for installing devices like Access Points (APs), IP Cameras, IP Phones, and more in such locations. Additionally, it’s compatible with products like TP-Link’s TL-POE10R and other equivalent alternatives.

Features

  • 2 Gigabit ports ensure faster transmission
  • Tplink TL-POE160S Dubai complies with IEEE802.3af/at standards, supplies up to 30 W
  • The Tplink TL-POE160S Dubai reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device’s need
  • Tplink TL-POE160S Dubai has a wall-mounting and desktop design which accommodates most installation scenarios
  • Plug & Play installation, requires no configuration
  • Integrated power supply

Technical Specs

HARDWARE FEATURES
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100 m)
  • EIA/TIA-568 100Ω STP (maximum 100 m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100 m)
  • EIA/TIA-568 100Ω STP (maximum 100 m)
  • 1000BASE-T : UTP category 5, 5e, 6 cable(maximum 100 m)
Ports
  • 1 10/100/1000Mbps RJ45 data-in port
  • 1 10/100/1000Mbps RJ45 power+data-out port
  • 1 AC power port
Power Consumption
  • Input : 100-240 V, 50/60 Hz
  • Output : Auto-determine the necessary power requirements (max. 30 W)
Basic Function
  • Auto-Sensing Algorithm enables providing power with 802.3af/at PD
  • Auto-determine the necessary power requirements
  • Wall-mounting and desktop installation supported
  • Plug-and-Play
LED Indicator ON : Supplying power normally
OFF : No power supply
Dimensions ( W x D x H ) 4.9 x 2.3 x 1.4 in
(125 x 59 x 37 mm)
NETWORK
Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
GENERAL
Certification FCC, CE, RoHS
Environment
  • Operating Temperature : 0°C to 40°C (32°F to 104°F)
  • Storage Temperature : -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity : 10% to 90%RH non-condensing
  • Storage Humidity : 5% to 90%RH non-condensing
PACKAGE CONTENTS
Package Contents
  • PoE+ Injector TL-POE160S
  • Installation Guide
  • Power Cord
  • RJ45 Cable
  • Wall Mounting Kits
