Tplink TL-POE200 Dubai

Tplink TL-POE200 Dubai

The Tplink TL-POE200 Dubai Power over Ethernet Adapter Kit is engineered to transmit both power and data over a single Ethernet cable, reaching Ethernet-enabled devices located up to 100 meters away. This PoE kit comprises two components: the ‘injector,’.

Category:

Description

Tplink TL-POE200 Dubai

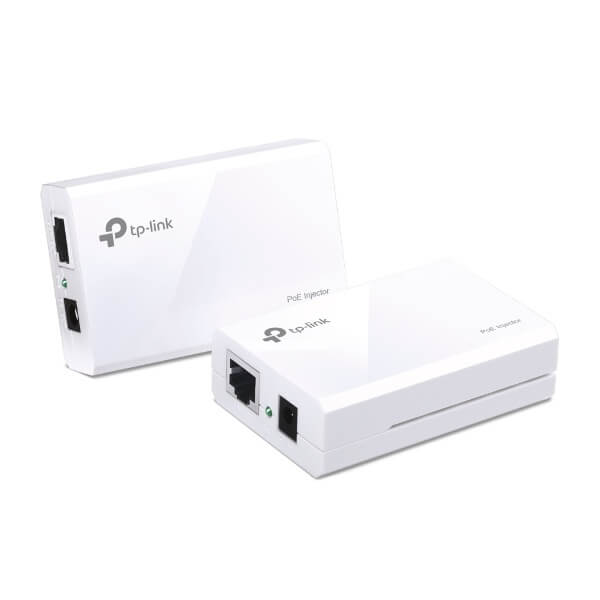

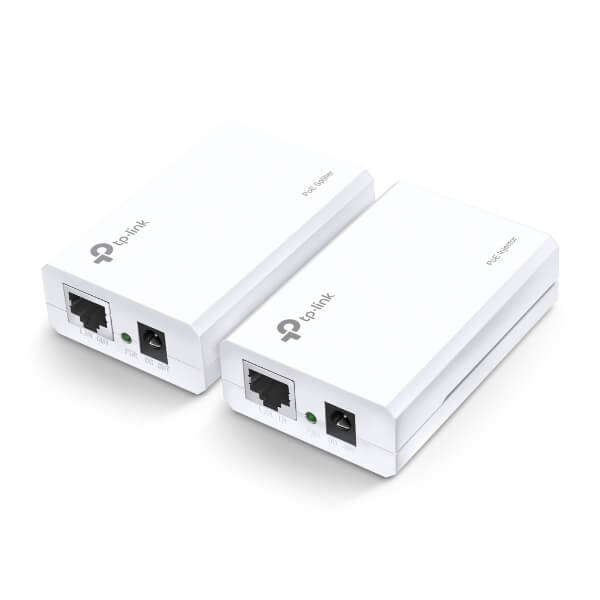

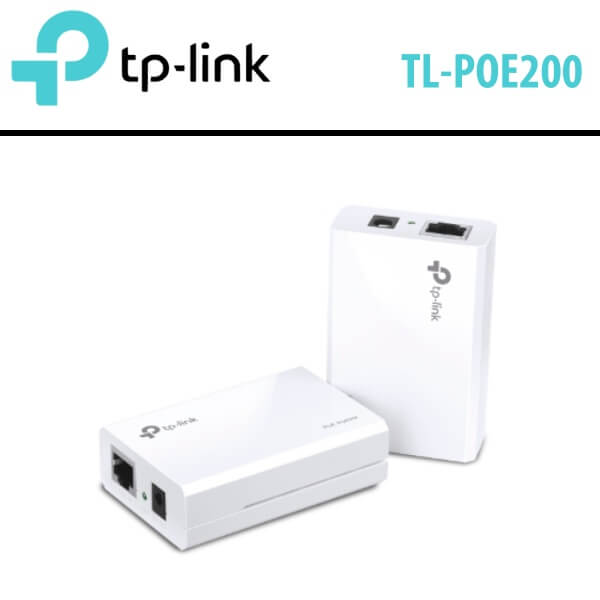

The Tplink TL-POE200 Dubai Power over Ethernet Adapter Kit is engineered to transmit both power and data over a single Ethernet cable, reaching Ethernet-enabled devices located up to 100 meters away. This PoE kit comprises two components: the ‘injector,’ which combines power and data into a single Ethernet cable, and the ‘splitter,’ positioned at the receiving end to separate the power and data into two cables for use by the connected Ethernet device.

This seamless solution empowers users to deploy Ethernet-enabled devices like access points, IP cameras, or VoIP phones wherever they are most strategically placed, without the need for a nearby power outlet. This flexibility ensures optimal performance for all connected devices, even in locations where power sockets are scarce.

Features

  • Carries power & data over a single Ethernet cable up to 100 meters away
  • Selectable power output
  • Plug-and-Play, requires no configuration

Specifications

HARDWARE FEATURES
INTERFACE For POE200A:

1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port

1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PSE port

1 48VDC power input port

For POE200B :

1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port

1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PD port

1 12/9/5VDC power output port

LED INDICATOR PWR
DIMENSIONS ( W X D X H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
OTHERS  FEATURES
SYSTEM REQUIREMENTS Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
POWER SUPPLY UNIT OF POE INJECTOR Input : 100~240VAC

Output : 48V, 0.5A Switching PSU

OUTPUT POWER FOR POE SPLITTER 12/9/5VDC
ENVIRONMENT Operating Temperature : 0℃~40℃ (32℉~104℉)

Storage Temperature : -40℃~70℃ (-40℉~158℉)

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 5%~90% non-condensing
