Description

Tplink TL-RP108GE Dubai

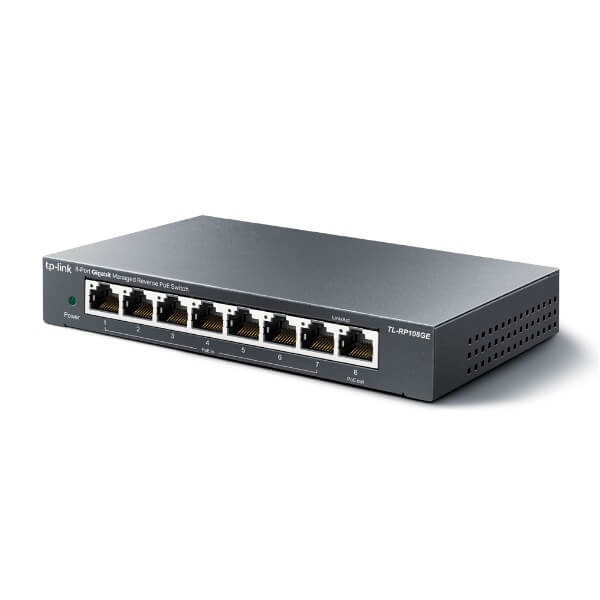

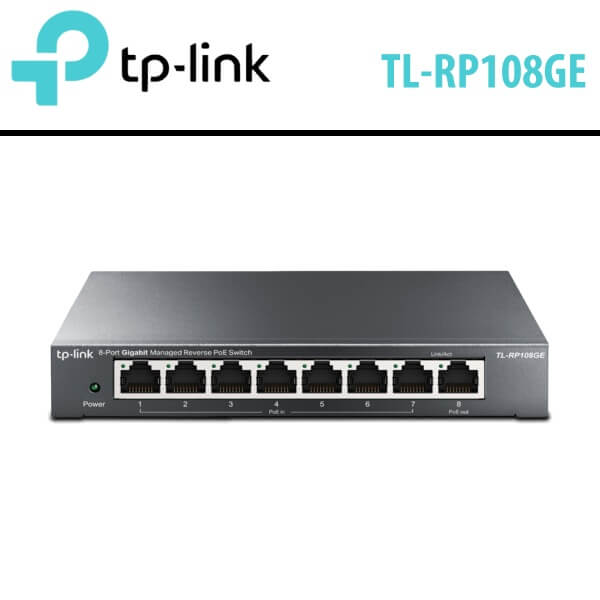

The Tplink TL-RP108GE Dubai 8-Port Managed Gigabit Reverse PoE Switch boasts seven (7) gigabit PoE input ports designed to receive power from user outlets via PoE injectors. Additionally, it is equipped with one (1) PoE output port, Port 8, which can efficiently provide power to CPEs and similar devices. The DC output port is versatile, supporting both 5 V and 12 V optional output voltage settings, making it suitable for powering devices such as ONTs.

This innovative switch combines data switching and PoE capabilities within a single unit, resulting in a space-saving solution that reduces cable clutter. It eliminates the need for dedicated electrical outlets, thereby reducing deployment costs and simplifying the installation process for PoE-enabled devices.

Features

• Seven (7) PoE input and one (1) PoE output 10/100/1000 Mbps RJ45 Ports.
• One (1) DC output port that supports both 5V and 12 V voltage switching.
• Tplink TL-RP108GE Dubai comes with a durable metal casing of superior quality and professional appearance.
• Intelligent management via a web user interface and downloadable utility.
• Tplink TL-RP108GE Dubai supports Green technology which reduces power consumption.

Technical Specs

Standards and Protocols

• CSMA/CD

Interface

• 7 Passive PoE-in RJ45 Ports :
  • 10/100/1000Mbps Auto-Negotiation
  • Voltage : 24/48 V (mixture is not supported)
  • Power pin of Ethernet cable : 4/5+ 7/8-
• 1 Passive PoE-out RJ45 Port :
  • 10/100/1000Mbps Auto-Negotiation
  • Voltage : depending on the input voltage of -PoE-in ports
  • Power pin of Ethernet cable : 4/5+ 7/8-

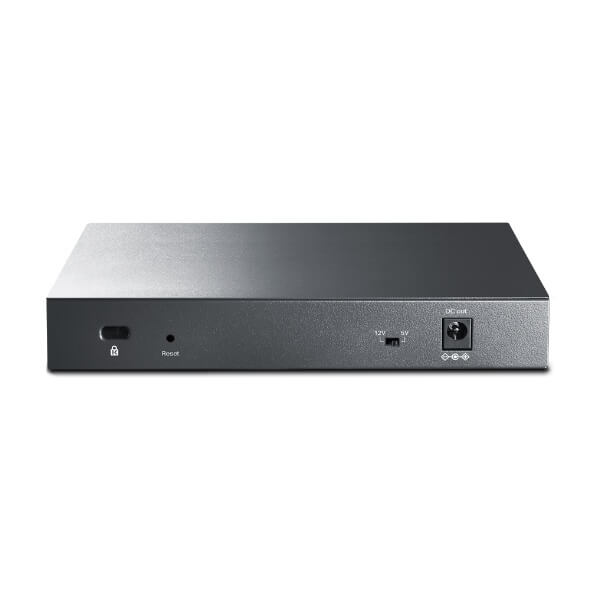

• 1 DC Output Port :
  • Voltage : 5/12 V

Network Media

• 10Base-T :
  • UTP category 3, 4, 5 cable (maximum 100 m)
  • EIA/TIA-568 100 O STP (maximum 100 m)
• 100Base-TX :
  • UTP category 5, 5e cable (maximum 100 m)
  • EIA/TIA-568 100 O STP (maximum 100 m)
• 1000Base-T :
  • UTP category 5e cable (maximum 100 m)
  • EIA/TIA-568 100 O STP (maximum 100 m)

Packet Forwarding Rate

• 11.9 Mbps

Mac Address Table

• 4 K

Jumbo Frame

• 16 KB

Switching Capacity

• 16 Gbps

IEEE Standards

• IEEE802.3ab, IEEE802.3i, IEEE802.3p
• IEEE802.3q, IEEE802.3x, IEEE802.3u

Data Rates

• Ethernet : 10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
• Fast Ethernet : 100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
• Gigabit Ethernet : 2000 Mbps (Full Duplex)

LED Indicator

• Power, Link/Act LED

Dimensions ( W x D x H )

• 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)

Max Power Consumption

• 3.98 W (with no PD connected)
• 18.01 W (24 V with PD connected)
• 32.74 W (48 V with PD connected)

Max Heat Dissipation

• 13.57 BTU/h (with no PD connected)
• 61.41 BTU/h (24 V with PD connected)
• 111.64 BTU/h (48 V with PD connected)

SOFTWARE FEATURES

Quality of Service

• Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control

L2 Features

• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention

VLAN

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN

Transmission Method

• Store-And-Forward

OTHERS

Certification

• FCC, CE, RoHS

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

Environment

• Operating Temperature : 0ºC~40ºC (32ºF~104ºF)
• Storage Temperature : -40ºC~70ºC (-40ºF~158ºF)
• Operating Humidity : 10%~90% non-condensing
• Storage Humidity : 5%~90% non-condensing

Package Contents

• 1 x TL-RP108GE
• 1 x Power Cord
• 1 x Installation Guide
• 1 x Rubber Feet
