Tplink TL-SF1005D Dubai

Tplink TL-SF1005D Dubai

The Tplink TL-SF1005D Dubai is an excellent option for enhancing your high-performance wired network. Additionally, it features innovative energy-efficient technology.

Category:

Description

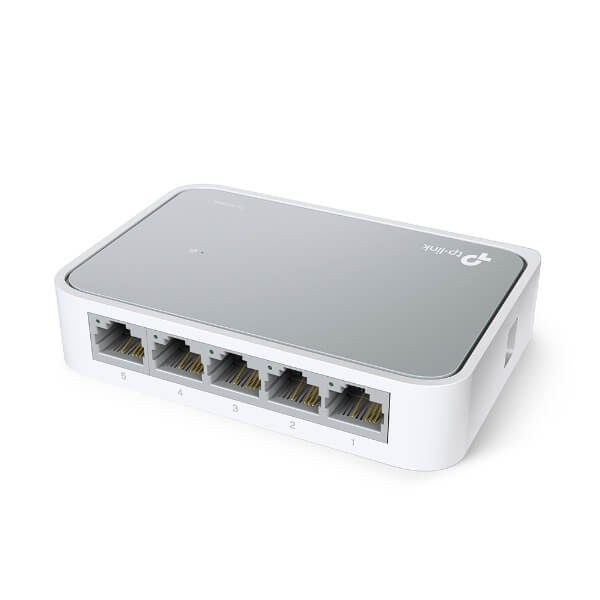

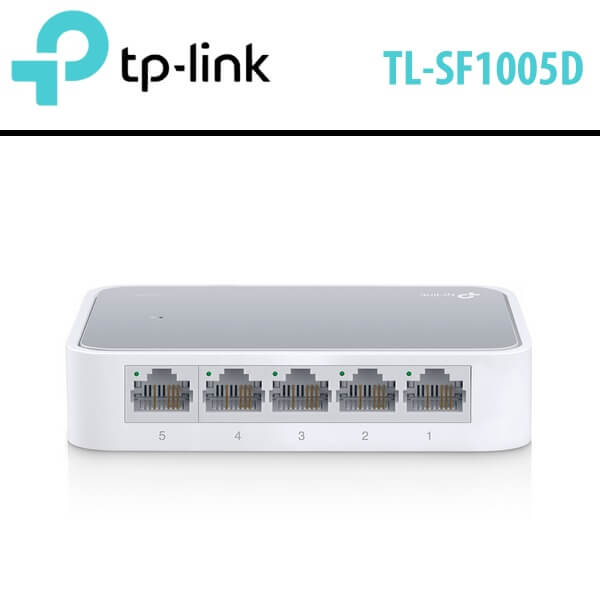

Tplink TL-SF1005D Dubai

The Tplink TL-SF1005D Dubai if you need a simple way to expand your wired network. This unmanaged desktop switch has 5 10/100Mbps ports that support auto-MDI/MDIX, eliminating cable compatibility concerns. With full duplex mode, the Tplink TL-SF1005D Dubai is an excellent option for enhancing your high-performance wired network. Additionally, it features innovative energy-efficient technology, allowing for reduced power consumption and making it an environmentally friendly solution for your home or office network.

Characteristics: Superior Performance The Tplink TL-SF1005D Dubai Fast Ethernet Switch delivers excellence through its 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports come equipped with Auto MDI/MDIX functionality, negating the necessity for crossover cables or separate Uplink ports. Employing a non-blocking switching architecture, the TL-SF1005D ensures seamless forwarding and packet filtering at full wire-speed, maximizing throughput. Enhanced by a 2K Jumbo frame, the switch significantly bolsters the performance of extensive file transfers. Additionally, IEEE 802.3x flow control operates in Full Duplex mode, while backpressure manages Half Duplex mode, effectively alleviating traffic congestion and instilling dependable functionality in the Tplink TL-SF1005D Dubai .

User-Friendly Experience :The automated attributes of the Tplink TL-SF1005D ethernet switch streamline the installation process, making it effortless and devoid of complications. No manual configuration is necessary. Auto MDI/MDIX eliminates the requirement for crossover cables. On each port, automatic negotiation detects the network device’s link speed (10, 100 Mbps), intelligently adjusting for compatibility and optimal performance.

Technical Details

HARDWARE FEATURES
Interface 5 × 10/100Mbps RJ45 Ports

Auto Negotiation / Auto MDI/MDIX

Fan Quantity Fanless
External Power Supply External Power Adapter(Output: 5.0VDC / 0.6A)
Dimensions ( W x D x H ) 4.1 × 2.8 × 0.9 in.
(104 × 70 × 22 mm)
Max Power Consumption 1.9W
Max Heat Dissipation 6.4 BTU/h
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions Green Technology

802.3X Flow Control, Back Pressure

OTHERS
Certification FCC, RoHs
Package Contents 5-Port 10/100Mbps Desktop Switch

Power Adapter

Installation Guide

Environment Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~60℃ (-40℉~140℉);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
