Description

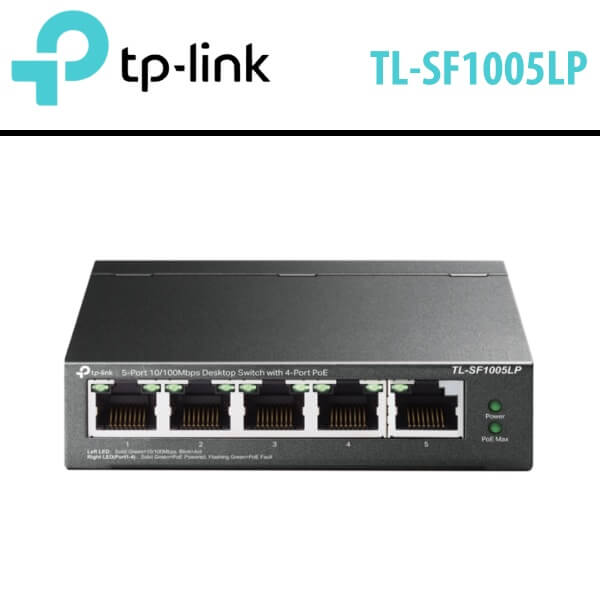

Tplink TL-SF1005LP Dubai
The Tplink TL-SF1005LP Dubai switch is furnished with five Ethernet ports, all operating at speeds of 10/100 Mb/s, and of these, four adhere to the 802.3af PoE standard. This feature empowers you to directly power various PoE-compatible devices such as access points and IP phones through the switch. With an impressive power budget of up to 67W, you have ample power at your disposal. In cases where the connected devices surpass this power budget, the switch has the capability to disable power to specific network ports, starting with port 4, to manage power distribution efficiently.
Once the switch is installed, connected clients can enjoy bandwidth speeds of up to 1 Gb/s, and the switch incorporates a 2K MAC address table to guarantee optimal network performance.
Setting up the Tplink TL-SF1005LP Dubai 5-Port 10/100 Mb/s PoE-Compliant Unmanaged Switch from TP-Link is hassle-free, as it requires no installation or configuration. This simplifies the process of connecting additional Ethernet-enabled devices to your network with ease.
Key Features:
A Dedicated 4-Port PoE Switch (41 W Budget) for Versatile Applications
Compliant with the 802.3af PoE standard, this switch offers a robust power supply of up to 15.4 W on each PoE port. With a total PoE power budget of 41 W across the 4× PoE ports, it opens up a wide array of applications, making it ideal for surveillance in offices, dormitories, and small businesses. It provides full compatibility with a variety of devices, including IP cameras, access points, IP phones, computers, printers, and more.
Perfect for IP Surveillance with Extended Range (Up to 250 m)
With extend mode activated, the Tplink TL-SF1005LP Dubai extends the PoE transmission distance to an impressive 250 meters**, making it an excellent choice for deploying IP cameras across large areas.
Priority Video-Quality Assurance
The Tplink TL-SF1005LP Dubai prioritizes sensitive applications, such as video monitoring in critical business areas, by offering higher priority options for ports 1–2 when the one-touch Priority Mode is enabled.
Intelligent Power Management
To prevent power overload, the switch employs intelligent power management. If the total power consumption exceeds 41 W, it will cut power to the lower priority ports, ensuring the power supply to high-priority ports while safeguarding devices from potential damage. Additionally, it automatically detects and supplies the required power for your PoE devices, protecting both PoE and non-PoE equipment.
Durable Metal Casing for Longevity
The Tplink TL-SF1005LP Dubai features a high-quality metal casing that protects its internal components, ensuring a prolonged product lifespan. Having undergone a series of rigorous reliability tests, the TL-SF1005LP delivers dependable switching performance you can rely on.
Technical Specs
HARDWARE FEATURES | |
Interface |
|
Network Media |
|
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output : 53.5 V DC / 0.81 A) |
Packet Forwarding Rate | 0.744 Mpps |
PoE Ports (RJ45) |
|
Mac Address Table | 2K |
Jumbo Frame | 2 KB |
Switching Capacity | 1 Gbps |
Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
Max Power Consumption |
|
Max Heat Dissipation |
|
SOFTWARE FEATURES | |
Transmission Method | Store-And-Forward |
Advanced Functions |
|
OTHERS | |
Certification | FCC, CE, RoHS |
Package Contents |
|
Environment |
|
