Tplink TL-SF1005P Dubai

Tplink TL-SF1005P Dubai

The Tplink TL-SF1005P Dubai is an unmanaged 5 port Fast Ethernet switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices.

Category:

Description

Tplink TL-SF1005P Dubai

The Tplink TL-SF1005P Dubai is an unmanaged 5 port Fast Ethernet switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the Tplink TL-SF1005P Dubai support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority power supply and protect the device from power overload operation. Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, the fanless design ensures quiet operation.

Key Features

  1. Power over Ethernet (PoE)
    • Four out of the five Auto-Negotiation RJ45 ports (Port 1 to Port 4) on the switch support Power over Ethernet (PoE). These PoE ports can efficiently detect and provide power to IEEE 802.3af compliant Powered Devices (PDs).
  2. Intelligent Power Management
    • To prevent power overload and ensure reliable performance, the switch features intelligent power management. When the total power consumption exceeds 58W, it will automatically cut off power to lower priority ports, safeguarding the power supply to high-priority devices.
  3. Robust Metal Casing
    • The Tplink TL-SF1005P Dubai boasts a robust and compact metal casing, coupled with shielded RJ45 ports. Its versatile design allows for both desktop and wall-mounted installations, making it suitable for various environments.
  4. Whisper-Quiet Operation
    • With a fanless design, the switch operates silently, ensuring a noise-free environment even during continuous use.

Technical Specifications

HARDWARE FEATURES
Interface
  • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
  • AUTO Negotiation/AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output : 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45)
  • Standard : 802.3 af/at compliant
  • PoE Ports : Ports 1–4
  • Power Supply : 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in
(100 x 98 x 25 mm)
Max Power Consumption
  • 1.9 W (no PD connected)
  • 74 W (with 67 W PD connected)
Max Heat Dissipation
  • 6.5 BTU/h(no PD connected)
  • 252.3 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs

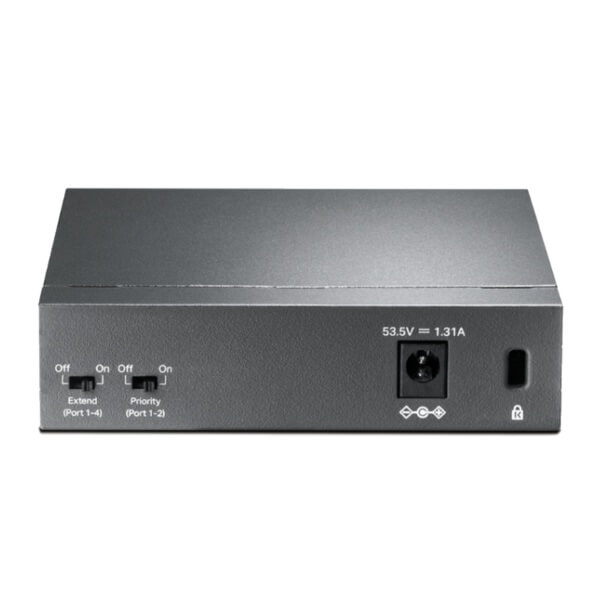

  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1005P, Power Adapter, Installation Guide
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
