Tplink TL-SF1006P Dubai

Tplink TL-SF1006P Dubai

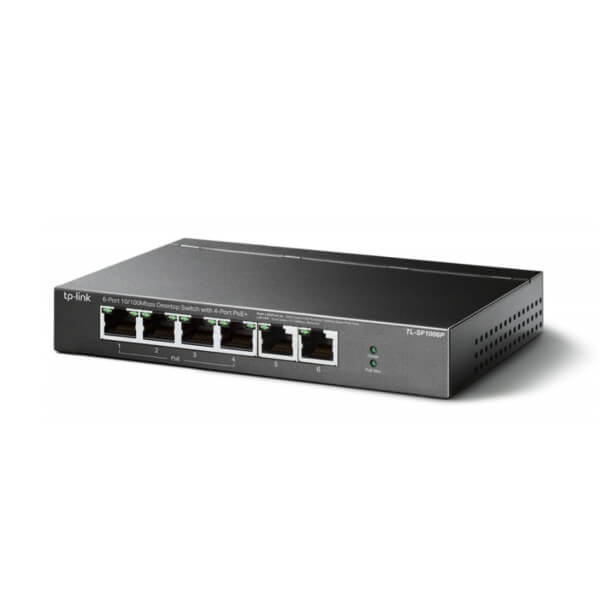

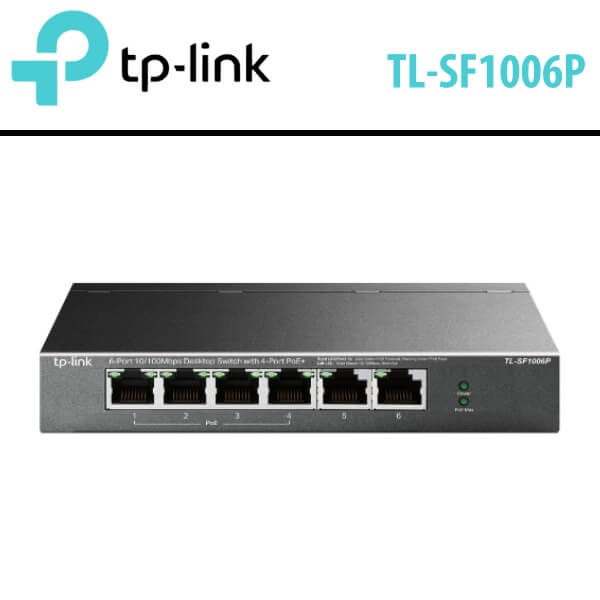

The Tplink TL-SF1006P Dubai is a professional-grade high-power switch equipped with four PoE+ ports. This switch features six 10/100 Mbps RJ45 ports.

Category:

Description

Tplink TL-SF1006P Dubai

The Tplink TL-SF1006P Dubai is a professional-grade high-power switch equipped with four PoE+ ports. This switch features six 10/100 Mbps RJ45 ports, along with four PoE+ ports that combine data and power transmission over individual cables. These PoE ports are designed to automatically detect and deliver power to IEEE 802.3af compliant Powered Devices (PDs).

This switch supports PoE transmission for surveillance purposes at distances of up to 250 meters, following the 802.3af/at PoE standard, and providing a maximum of 30 watts on each PoE port. The Tplink TL-SF1006P Dubai is fully compatible with a range of devices, including IP cameras, access points, IP phones, computers, printers, and more.

To prevent power overload, the switch utilizes intelligent power management. When the total power consumption surpasses 67 watts, it automatically cuts power to lower-priority ports, ensuring a stable power supply to high-priority devices and protecting them from potential overload. Additionally, the switch detects and supplies the necessary power for your PoE devices while safeguarding both PoE and non-PoE equipment from damage.Encased in a durable metal casing, this switch offers longevity and reliability for your networking needs.

Quick Features

  • 6× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Up to 250m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 67 W for all PoE ports*
  • Plug and play with no configuration required

Technical Specs

HARDWARE FEATURES
Interface
  • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output : 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.8928 Mpps
PoE Ports (RJ45)
  • Standard : 802.3 af/at compliant
  • PoE Ports : Ports 1–4
  • Power Supply : 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.2 Gbps
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption
  • 1.9 W (220 V / 50 Hz, no PD connected)
  • 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation
  • 6.48 BTU/h(no PD connected)
  • 252.34 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents
  • TL-SF1006P
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
