Tplink TL-SF1008D Dubai

Tplink TL-SF1008D Dubai

The Tplink TL-SF1008D Dubai incorporates energy-efficient technology, allowing for reduced power consumption and serving as an environmentally friendly solution for your business network.

Category:

Description

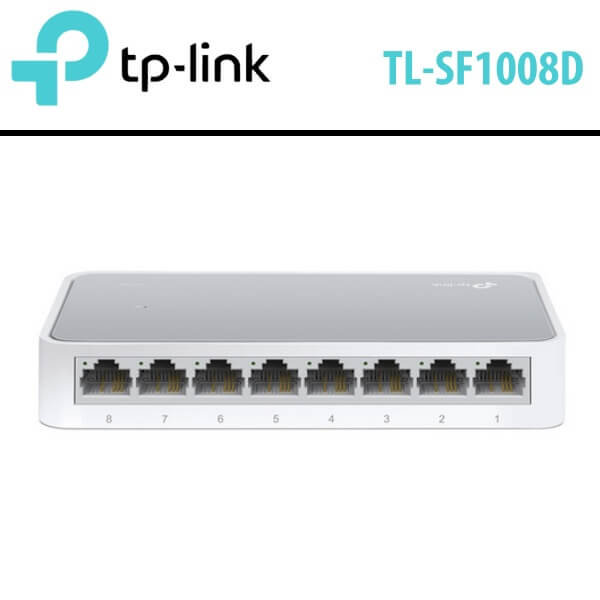

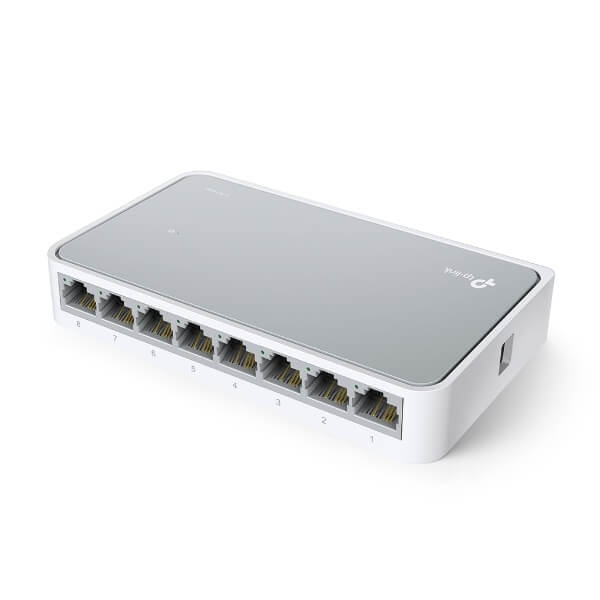

Tplink TL-SF1008D Dubai

The Tplink TL-SF1008D Dubai is a Fast Ethernet Switch created for small office/home office (SOHO) or workgroup users. It includes eight ports that support auto MDI/MDIX, eliminating the need to be concerned about cable types – just plug and play. Additionally, the Tplink TL-SF1008D Dubai incorporates energy-efficient technology, allowing for reduced power consumption and serving as an environmentally friendly solution for your business network.

Features

High Performance

Tplink TL-SF1008D Dubai Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, Tplink TL-SF1008D Dubai forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make Tplink TL-SF1008D work reliably.

Easy to Use

The auto features of the Tplink TL-SF1008D make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Technical Specs

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply 100-240VAC, 50/60Hz
(Output : 9VDC / 0.6A)
Buffer Size 768Kb
Data Rates 10/100Mbps at Half Duplex ;

20/200Mbps at Full Duplex

LED Indicator Power

Port network activity (on the network module)

Dimensions ( W x D x H ) 5.3 × 3.1 × 0.9 in.
(135 × 79 × 23mm)
Max Power Consumption 2W
Max Heat Dissipation 7.0 BTU/h
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions Green Technology

802.3X Flow Control, Back Pressure

OTHERS
Certification FCC, RoHS
Package Contents 8-Port 10/100Mbps Desktop Switch

Power Adapter

User Guide

Environment Operating Temperature : 0°C~40°C (32°F~104°F);

Storage Temperature : -40℃~60℃ (-40℉~140℉);

Operating Humidity : 10%~90% non-condensing;

Storage Humidity : 5%~90% non-condensing
