Description
Tplink TL-SF1009P Dubai

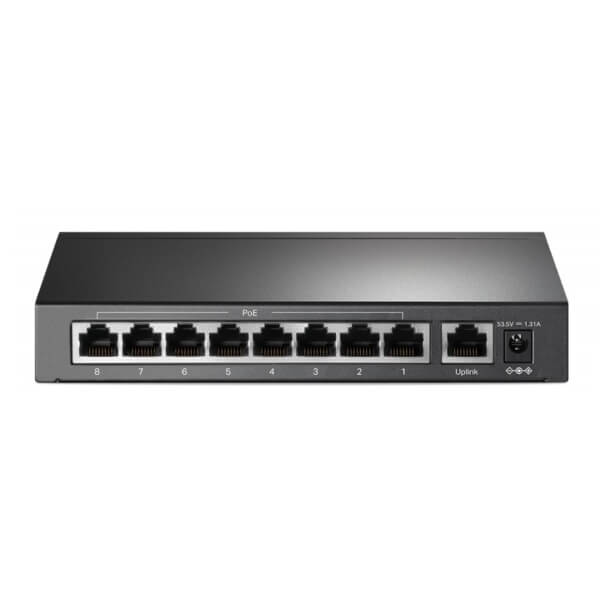

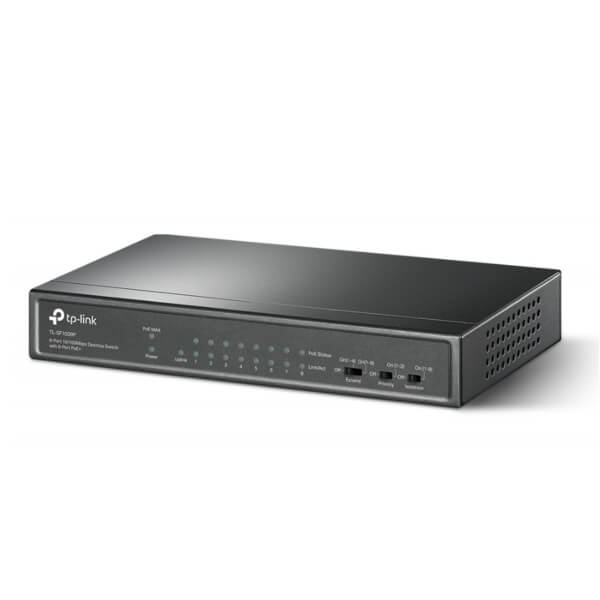

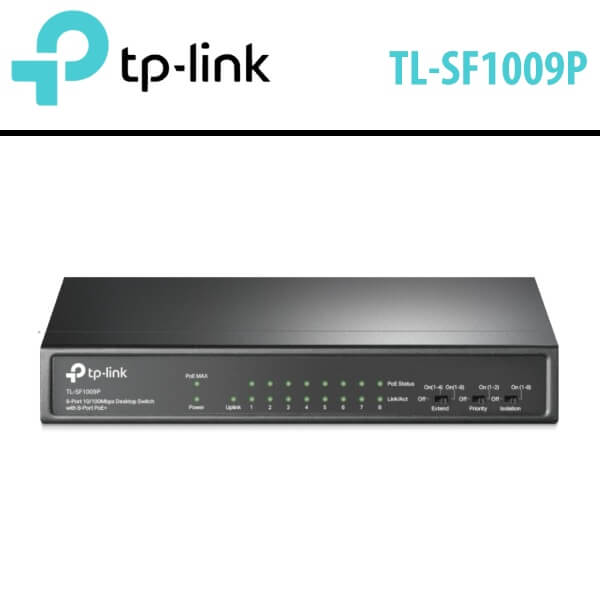

The Tplink TL-SF1009P Dubai 9-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch from TP-Link Elevate your business network’s capacity to accommodate IP surveillance cameras, VoIP phones, access points, and more. The Tplink TL-SF1009P Dubai unmanaged switch boasts nine 10/100 Mb/s ports, with eight of them supporting PoE+ and a total power budget of 65W. These eight PoE+ ports can all be switched to Extend Mode, effectively extending the data and power transmission range to as far as 820 feet at 10 Mb/s. Furthermore, enabling priority mode for ports one and two ensures smooth and uninterrupted high-speed video and audio traffic.
Thanks to its plug-and-play design, this switch can seamlessly integrate into your network without the need for extra hardware or software. Its fanless metal construction also guarantees quiet operation when placed on desktops, and it can be wall-mounted for added versatility.
Features
Powering PoE Devices
This Tplink TL-SF1009P Dubai network switch features nine 10/100 Mb/s ports, eight of which are 30W PoE+ compliant to operate IP cameras, VoIP phones, access points, and other compatible devices.
Intelligent Power Management
The Tplink TL-SF1009P Dubai is designed to intelligently cut power to lower priority devices to help ensure that high priority devices remain operational when the power consumption exceeds the 65W budget. The Tplink TL-SF1009P Dubai switch automatically detects the power requirements for each connected device and works to prevent them from damage.
Extend Mode
Use the Extend Mode switch to extend the reach of the PoE+ ports from 100 feet at 100 Mb/s to up to 380 feet at 10 Mb/s for long-range surveillance installations.
Priority Mode
With a flip of a switch, ports one and two can be configured for Priority Mode, which helps to ensure smooth video and audio data transmissions.
Specifications
| Interfaces | |
| Ports | · 8 x 10/100 Mb/s Ethernet (RJ45) PoE+
· 1 x 10/100 Mb/s Ethernet (RJ45) |
| Protocols | |
| Supported Protocols | Auto-MDIX/MDI |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 2000 Bytes |
| MAC Address Table Size | 2K |
| Standards | |
| Supported IEEE Standards | 802.3af, 802.3at, 802.3x |
| Performance | |
| Forwarding Rate | 1.33 Mpps |
| Switching Bandwidth | 1.8 Gb/s |
| Electrical | |
| Power Draw | 77.1 W (Max) |
| PoE Power Budget | 65 W |
| PoE per Port | 30 W |
| Power Supply Type | External |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| General | |
| Cooling System | Passive |
| Indicator Lights | Link/Activity, PoE, Power |
| Dimensions | 6.7 x 3.9 x 1.1″ / 171 x 98 x 27 mm |
| Packaging Info | |
| Package Weight | 2.11 lb |
| Box Dimensions (LxWxH) | 11 x 8.8 x 2.7″ |
