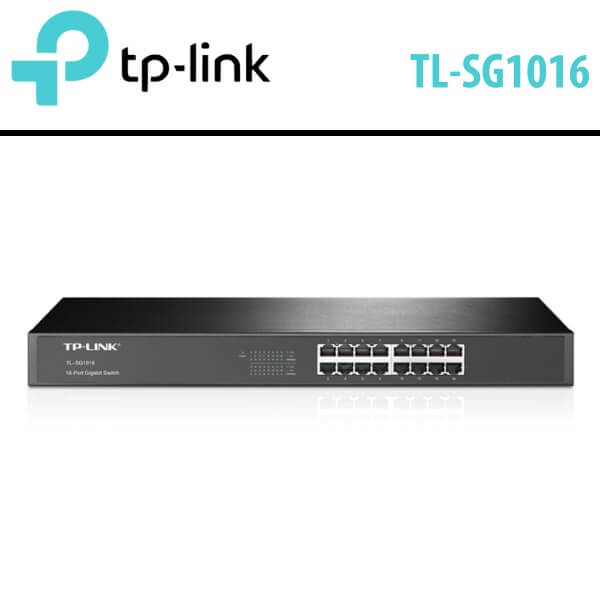

Tplink TL-SG1016 Dubai

Tplink TL-SG1016 Dubai

The Tplink TL-SG1016 Dubai Gigabit Ethernet Switch offers a high-performance, cost-effective, user-friendly, and seamless solution for upgrading your outdated network to a blazing-fast 1000Mbps network. With auto MDI/MDIX support on all 16 ports.

Category:

Description

Tplink TL-SG1016 Dubai

The Tplink TL-SG1016 Dubai Gigabit Ethernet Switch offers a high-performance, cost-effective, user-friendly, and seamless solution for upgrading your outdated network to a blazing-fast 1000Mbps network. With auto MDI/MDIX support on all 16 ports, you can forget about cable types and simply plug and play. What’s more, its innovative energy-efficient technology not only reduces power consumption but also promotes eco-friendliness by allowing 80% of the packaging materials to be recycled, making it an environmentally responsible choice for your business network.

Features

16-port Gigabit switch TP-Link TL-SG1016

Tplink TL-SG1016 Dubai with 16 ports is a gigabit desktop switch designed for installation in a rack. The switch allows you to easily increase the Ethernet throughput for gigabit connections. The 16 ports are equipped with MDI/MDIX auto crossover function, which allows for quick installation without the need for crossover cables. The TLSG1016 Switch is environmentally friendly as it is based on the Green TP-Link environmentally friendly technology.

Business performance of the switch

Tplink TL-SG1016 Dubai uses non-blocking architecture for data transfer efficiency. Thanks to the MAC address array with the size 8 K it is possible to use the device in large networks. Whereas the IEEE802.3x bandwidth control support for transmission in full duplex and the backpressure function for transmission in half duplex ensures smooth network traffic and reliable data transmission.

Green TP-Link

Tplink TL-SG1016 Dubai uses Green TP-Link technology, which effectively increases network capacity while saving energy. The switch automatically adjusts power consumption depending on connection status and cable length. The switch complies with the European Directive RoHS limiting the use of equipment made of environmentally hazardous materials.

Easy to use

Thanks to the automatic functions of the Tplink TL-SG1016 Dubai switch, installation of the device does not require configuration. The MDI/MDIX function eliminates the need for crossover cables or uplink ports, and automatic connection negotiation detects the speed of the connected device on each port, ensuring transmission performance at the highest level. The compact desktop enclosure saves space and is conveniently mounted in a rack. Also helpful are LEDs informing about the operating status of the device.

Technical Specs

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 16x [10/100/1000M (RJ45)]
AC input frequency 50/60
AC input voltage 100 – 240
Access Control List (ACL) Y
Auto MDI/MDI-X Y
Auto-negotiation Y
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cable types supported Cat3,Cat4,Cat5,Cat5e
Certification FCC, CE, RoHS
Cloud-managed Y
Configuring Location Settings (CLI) Y
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Depth 180
DHCP features
  • DHCP client
  • DHCP server
  • DHCP snooping
Ethernet LAN data rates 10,100,480,800,1000
Flow control support Y
Forwarding rate 23.8
Full duplex Y
Head-of-line (HOL) blocking Y
Heat dissipation 31.6
Height 44
IGMP snooping Y
IP routing Y
Jumbo frames 10000
Jumbo frames support Y
LED indicators Y
MAC address table 8000
Management No
Networking standards IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H) 10 – 90
Operating temperature (T-T) 0 – 40
Package depth 250
Package height 80
Package width 528
Password protection Y
Policy-based routing Y
Port mirroring Y
Power (W) Without PoE
Power consumption (typical) 9.26
Product colour Black
Quality of Service (QoS) support Y
Rack mounting Y
Security algorithms 802.1x RADIUS
Static port security Y
Storage relative humidity (H-H) 5 – 90
Storage temperature (T-T) -40 – 70
Store-and-forward Y
Switch layer L2
Switch type Managed
Switching capacity 32
Switching layer 2
System event log Y
Traffic classification Y
Traffic shaping Y
Type of case Rack (1U), Desktop,
User operation log Y
VLAN support Y
Web-based management Y
Width 440
Equipment features
Standards and protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Ports
  • 16 RJ45 ports 10/100/1000 Mb/s
  • Automatic negotiation of connection speeds and automatic crossover (Auto-MDI/MDIX)
Network cabling
  • 10BASE-T : Cat 3, 4 or 5 UTP cable (up to 100 m)
  • STP EIA/TIA-568 cable 100 Ω (up to 100 m)
  • 100BASE-TX : Cat 5 or 5e UTP cable (up to 100 m)
Fanless Yes
Power supply 100-240 V AC, 50/60 Hz
Power consumption Max. 13.3 W (220 V/50 Hz)
Dimensions (S x G x W) 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 inches)
Installation Rack Mountable
Max. energy consumption 9.26 W (220 V/50 Hz)
Amount of heat generated 31.60 BTU/h
Performance
Switching efficiency 32 Gb/s
Speed of packet redirection 23.8 Mp/s
MAC address plate 8 K
Jumbo frames 10 KB
QoS 802.1p/DSCP QoS
Green technology Innovative Green TP-LINK technology saving up to 15% energy
Switching architecture Store-and-Forward
Other
Certificates FCC, CE, RoHS
Package contents
  • Desktop switch, 16 Gb ports
  • Power supply
  • Installation instructions
  • Mounting elements
  • Rubber feet
System requirements Microsoft Windows XP, Vista, Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.
Working environment
  • Permissible operating temperature : 0℃~40℃ (32℉~104℉)
  • Permissible storage temperature : -40℃~70℃ (-40℉~158℉)
  • Permissible air humidity : 10%~90%, non-condensing
  • Permissible storage humidity : 5%~90%, non-condensing
