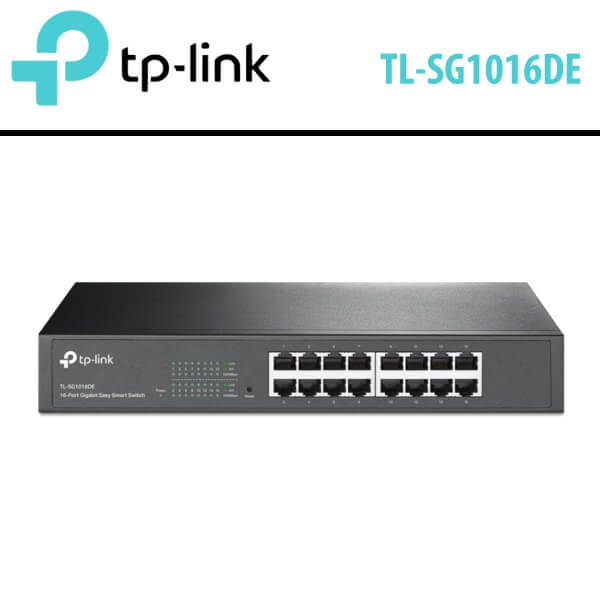

The Tplink TL-SG1016DE Dubai 16-Port Gigabit Easy Smart switch represents an excellent upgrade over an unmanaged switch, specifically designed for Small and Medium Business networks that seek straightforward network management.

Category:

Description

Tplink TL-SG1016DE Dubai

The Tplink TL-SG1016DE Dubai 16-Port Gigabit Easy Smart switch represents an excellent upgrade over an unmanaged switch, specifically designed for Small and Medium Business networks that seek straightforward network management. Network administrators can efficiently monitor traffic using features such as Port Mirroring, Loop Prevention, and Cable Diagnostics.

For optimizing traffic within your business network, the Tplink TL-SG1016DE Dubai provides Port Priority/802.1P Priority and DSCP QoS, ensuring that latency-sensitive traffic flows smoothly and without jitter. Furthermore, it supports port-based, tag-based, and MTU VLAN configurations, enhancing security and meeting various network segmentation needs.

In addition to its advanced features, the Tplink TL-SG1016DE Dubai incorporates innovative energy-efficient technology, which can reduce power consumption, making it an environmentally friendly solution for your business network.

Key Features:

Efficient Network Management

The Tplink TL-SG1016DE Dubai, TP-LINK’s Gigabit Easy Smart switch, provides robust network monitoring capabilities for users to closely observe traffic patterns. With features like Port Mirroring, Loop Prevention, and Cable Diagnostics, the TL-SG1016DE can not only identify but also pinpoint connection issues within your business network. Administrators can also assign priority to traffic based on Port Priority, Port/802.1p/DSCP Priority, ensuring that voice and video transmissions remain crystal clear, smooth, and free from lag. To enhance both security and network performance, the TL-SG1016DE supports MTU VLAN, port-based VLAN, and 802.1Q-based VLAN functions. As an upgrade from the plug-and-play Unmanaged Switch, the TL-SG1016DE offers exceptional value, empowering your network and delivering substantial benefits to end-users.

Environmentally Friendly Networking

When upgrading to a gigabit network, you now have the option to embrace eco-friendliness. The latest generation of the Tplink TL-SG1016DE Dubai 16-Port Gigabit Easy Smart Switch incorporates cutting-edge energy-efficient technologies that significantly expand your network’s capacity while consuming less power. It automatically adjusts power consumption according to link status and cable length, effectively reducing your network’s carbon footprint.

  • Power Down Idle Ports: Traditional switches continue to consume significant power on ports when connected devices are turned off. The Tplink TL-SG1016DE Dubai detects the link status of each port and reduces power consumption on idle ports.
  • Power Budget Based on Cable Length: Unlike conventional solutions that maintain uniform power consumption across cables of different lengths, the Tplink TL-SG1016DE Dubai analyzes the length of the connected Ethernet cable and adjusts power usage accordingly.

User-Friendly Operation

The Tplink TL-SG1016DE Dubai is user-friendly and easy to manage. It features Auto MDI/MDI-X crossover on all ports, eliminating the need for crossover cables or uplink ports. Each port supports auto-negotiation to determine the link speed of connected network devices (10, 100, or 1000 Mbps) and intelligently adjusts settings for optimal compatibility and performance. With its compact size, it’s perfect for desktops with limited space and can be conveniently rack-mounted for safe and efficient usage. Dynamic LED lights provide real-time status updates and basic fault diagnosis.

Technical Details

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
  • 16 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100 STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Dimensions (W X D X H) 11.6*7.1*1.7 in. (294*180*44 mm)
Power Consumption Maximum : 11.73W (220V/50Hz)PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 512KB
Jumbo Frame 9KBSOFTWARE FEATURES
Quality of Service
  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
L2 Features
  • IGMP Snooping
  • Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN
Transmission Method Store-And-Forward OTHERS
Certification FCC, CE, RoHS
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.
Environment
  • Operating Temperature : 0°C~40°C (32°C~104°C)
  • Storage Temperature : -40°C~70°C (-40°C~158°C)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
Number of Ports 16
Switch Form Factor Rackmount
Port Speed 1000 Mbps
Uplink Port Type None
Power over Ethernet No
QoS Yes
Switch Type Smart Managed
Switch Layer L2
