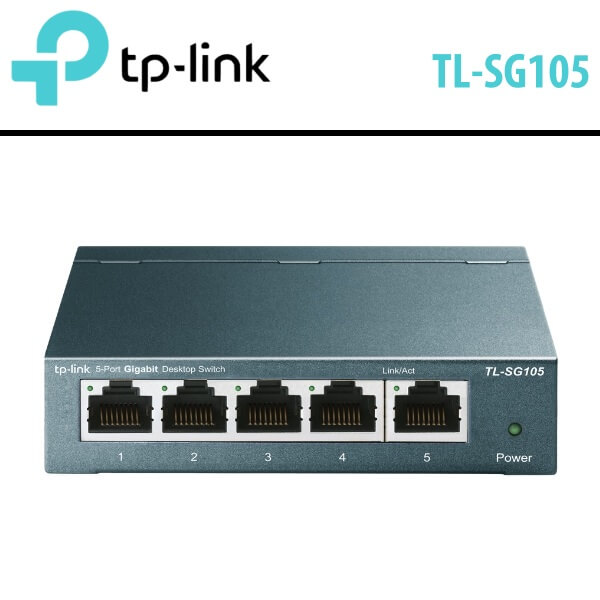

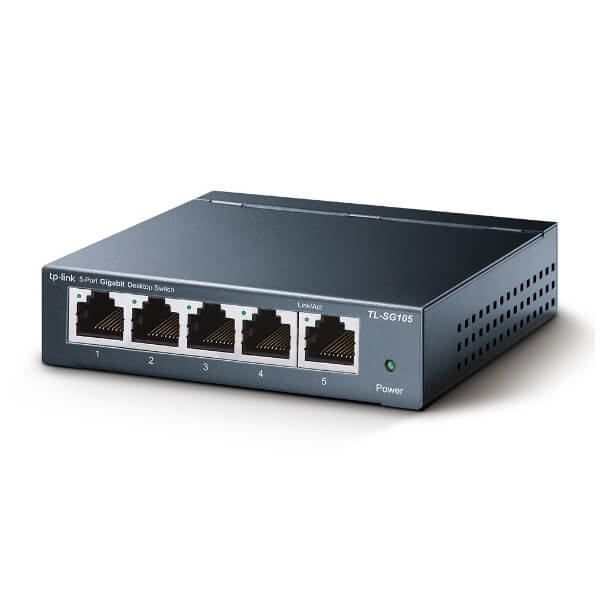

Tplink TL-SG105 Dubai

The Tplink TL-SG105 Dubai is a 5-port 10/100/1000Mbps desktop switch designed for seamless network migration to Gigabit Ethernet technology. Whether you want to boost your network server’s speed or enhance backbone connections, or simply bring Gigabit performance to your desktop, the TL-SG105 has you covered. Furthermore, its design incorporates innovative energy-efficient technology that reduces electricity consumption by up to 65%, making it an eco-friendly networking solution for both your home and workplace.

Key Features:

• Gigabit Speeds: The Tplink TL-SG105 Dubai boasts 5 ports with 10/100/1000Mbps capabilities, allowing you to significantly expand your network’s capacity and achieve lightning-fast transfer speeds, particularly when dealing with large files. This makes it an ideal choice for advanced users in various settings, including homes, offices, workgroups, or creative production environments. Whether you’re transferring graphics, CGI, CAD files, or multimedia, you can do it instantly over the network.

• Eco-Friendly Networking: Upgrade your network to Gigabit technology while also reducing your environmental footprint. The Tplink TL-SG105 Dubai, equipped with 5 Gigabit ports, features the latest energy-efficient technology. It automatically adjusts power consumption based on the link status and cable length, effectively limiting your network’s carbon footprint.
• Port Power Management: In traditional switches, inactive ports continue to consume a significant amount of energy even when connected devices are powered off. The Tplink TL-SG105 Dubai addresses this issue by detecting the connection status of each port and reducing the power consumption of inactive ports. This intelligent feature can lead to a reduction in power consumption of up to 65%.
• Cable Length-Based Power Consumption: In an ideal scenario, shorter cables should consume less energy due to lower signal loss. However, many devices do not adjust their power consumption based on cable length. The Tplink TL-SG105 Dubai, on the other hand, optimizes power usage according to the cable length, ensuring efficiency.
• User-Friendly: This Gigabit switch offers a hassle-free Plug and Play installation experience with automatic features. No complex configurations are needed. Auto MDI/MDIX eliminates the need for crossover cables, and auto-negotiation on each port identifies the network device’s link speed (10, 100, or 1000 Mbps) and intelligently adapts for compatibility and enhanced performance.

Technical Specifications

• Standards and Protocols : IEEE 802.3 / 802.3u / 802.3ab / 802.3x, CSMA / CD
• Interfaces : 5-port 10/100/1000 Mbps RJ45, Auto-negotiation, MDI / MDIX
• Number of Fans : Fanless
• Dimensions : 99.8 x 98 x 25 mm
• Maximum Power Consumption : 2.46W (220V / 50Hz)
• External Power Supply : 100-240VAC, 50 / 60Hz
• LED indicator : Power System
• Indicators : Link, Speed ​​and integrated activity in each RJ-45 port, Transmission Method : Store and Forward
• Packet forwarding rate : 7.4Mpps
• MAC Address Table : 2K
• Packet Buffer Memory : 1Mb
• Jumbo Frame : 15KB
• Advanced Features :
  • Energy saving technology
  • Power save up to 65%
  • 802.3x Flow Control
  • QoS support (IEEE802.1p)
  • IGMP snooping functionality
• Transfer Method : Store and Forward
• Certifications : FCC, CE, RoHS
• System Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista ™ or Windows 8/7, Mac OS, NetWare, UNIX or Linux.
• Environmental factors :
  • Operating temperature : 0 ° C ~ 40 ° C (32 ° F ~ 104 ° F)
  • Storage temperature : -40 ° C ~ 70 ° C (-40 ° F ~ 158 ° F)
  • Humidity : 10% ~ 90% non-condensing
  • Storage Humidity : 5% ~ 90% non-condensing
• Package content :
  • Switch to Desktop 5 Gigabit ports
  • Power adapter
