Tplink TL-SG105E Dubai

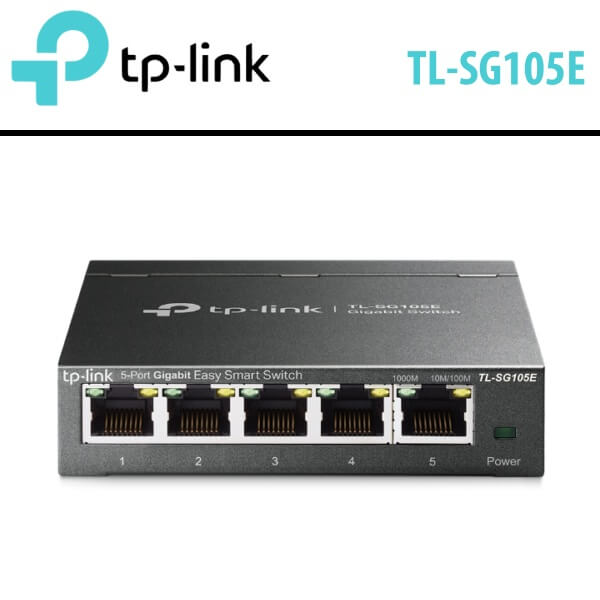

The Tplink TL-SG105E Dubai Unmanaged Pro switch offers an excellent enhancement over unmanaged switches, making it a perfect fit for home and small business networks. Its plug-and-play design ensures effortless deployment without requiring the assistance of a technician. Additionally, the durable metal casing provides enhanced protection for its internal components. With advanced management features such as QoS, VLAN, IGMP Snooping, and more, this switch is well-suited for a wide range of network environments, whether they are straightforward or more complex in nature.

Key Features:

Connect Your Devices and Simplify Your Business

The Tplink TL-SG105E Dubai Switch provides a straightforward method to expand your wired network, allowing you to manage your business effortlessly, whether you’re at home or in the office.

Gigabit Ports for Optimal Reliability

With its five non-blocking 10/100/1,000 Mbps ports, the Tplink TL-SG105E Dubai enables the seamless transfer of large, bandwidth-intensive files without any interruptions.

QoS for a Smooth Experience

It guarantees uninterrupted traffic flow, particularly for applications sensitive to latency, such as voice and video.

IGMP Snooping for Enhanced Multicast Performance

Optimizes the delivery of multimedia traffic, ensuring an improved network experience, particularly for applications like IPTV.

VLAN for Enhanced Security

Facilitates the creation of a more secure and higher-performing network by segmenting it into smaller groups.

Effortless Management

The Tplink TL-SG105E Dubai offers network monitoring capabilities, allowing users to monitor traffic behavior. Its web-based user interface and management utility provide various useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Robust Metal Casing

The Tplink TL-SG105E Dubai features a high-quality metal casing that safeguards its internal components, ensuring a prolonged product lifespan. It has successfully passed rigorous reliability tests, assuring dependable switching performance.

Eco-Friendly Ethernet

TP-Link’s latest generation of Easy Smart Switches incorporates innovative energy-saving technologies. Power consumption automatically adjusts based on link status and cable length, allowing you to expand your network while reducing your environmental footprint.

Technical Specifications :

• Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface : 5 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media : 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX : UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity : Fanless

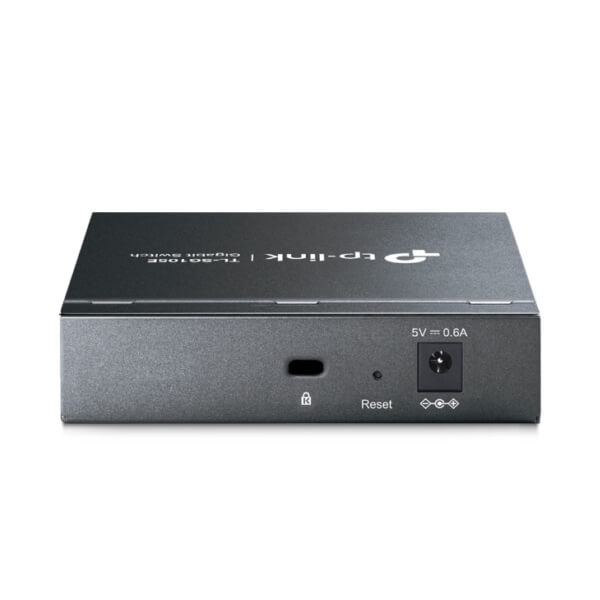

• Power Supply : External Power Adapter (Output : 5 VDC/ 0.6 A)
• Dimensions ( W x D x H ) : 3.9 × 3.9 × 1.0 in.(100 × 98 × 25 mm)
• Max Power Consumption : 2.8 W
• Max Heat Dissipation : 9.6 BTU/h

Performance :

• Packet Forwarding Rate : 7.4 Mpps
• MAC Address Table : 2 K
• Packet Buffer Memory : 1 Mb
• Jumbo Frame : 16 KB

Software features :

• Quality of Service : Support Port-based/802.1p/DSCP priority
• Support 4 priority queues

Rate Limit :

• Storm Control
• L2 Features : IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN : Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN
• Transmission Method : Store-And-Forward

Others :

• Certification : FCC, CE, RoHS
• Package Contents : TL-SG105EPower Adapter Installation Guide Rubber Feet
• System Requirements : Microsoft Windows for Easy Smart Utility

Environment :

• Operating Temperature : 0℃~40℃ (32℉~104℉)
• Storage Temperature : -40℃~70℃ (-40℉~158℉)
• Operating Humidity : 10%~90% non-condensing
• Storage Humidity : 5%~90% non-condensing
