Tplink TL-SG105S Dubai

Tplink TL-SG105S Dubai

The Tplink TL-SG105S Dubai incorporates a power-efficient design, resulting in lower power consumption. With its innovative energy-saving technology, this switch is an environmentally friendly choice for your home or office network.



Category:

Description

Tplink TL-SG105S Dubai

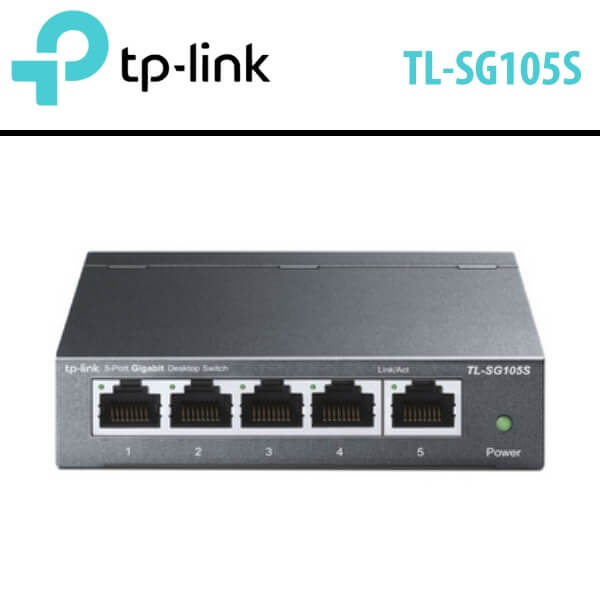

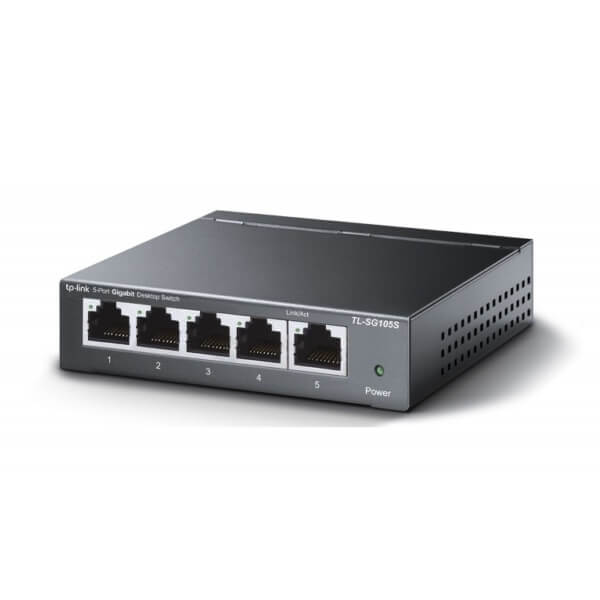

The Tplink TL-SG105S Dubai 5-Port 10/100/1000Mbps Desktop Switch offers a simple solution for upgrading to Gigabit Ethernet. Enhance the speed of your network server and backbone connections, or bring Gigabit to your desktop. This product features a Plug and Play design, requiring no configuration and ensuring ease of use. Additionally, the Tplink TL-SG105S Dubai incorporates a power-efficient design, resulting in lower power consumption. With its innovative energy-saving technology, this switch is an environmentally friendly choice for your home or office network.

Technical Details

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
Power Consumption Maximum : 2.3W (220V/50Hz)

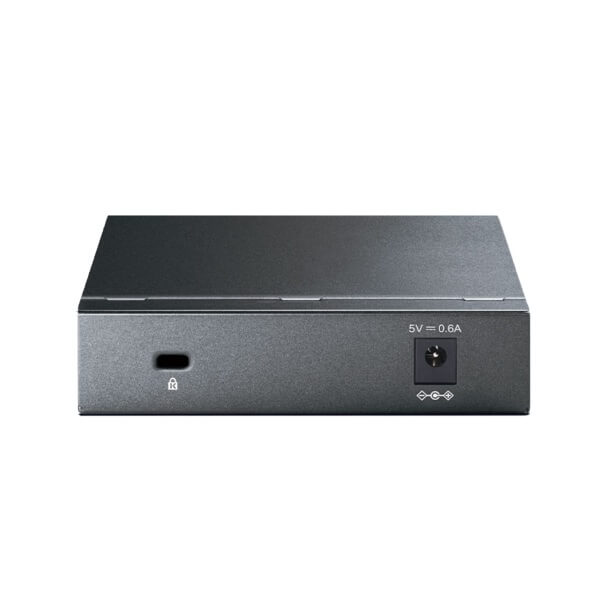

External Power Supply External Power Adapter (Output : 5VDC / 0.6A)
LED Indicator
  • System Power
  • Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm)
Max Heat Dissipation 7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1Mb
Jumbo Frame 16KB
SOFTWARE FEATURES
Advanced Features
  • Green Technology
  • 802.3X Flow Control
  • 802.1P/DSCP QoS (for V2 and later version)
  • IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • 5-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • Installation Guide
  • Rubber Feet
Environment
  • Operating Temperature : 0°C~40°C (32°F~104°F)
  • Storage Temperature : -40°C~70°C (-40°F~158°F)
  • Operating Humidity : 10% ~ 90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
