Description

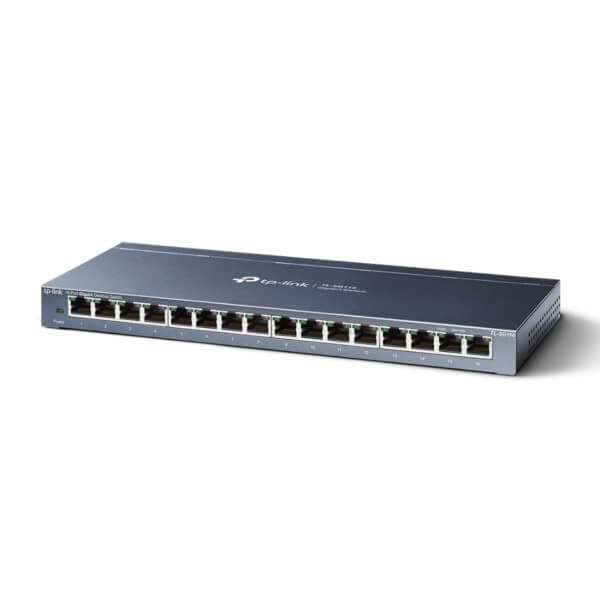

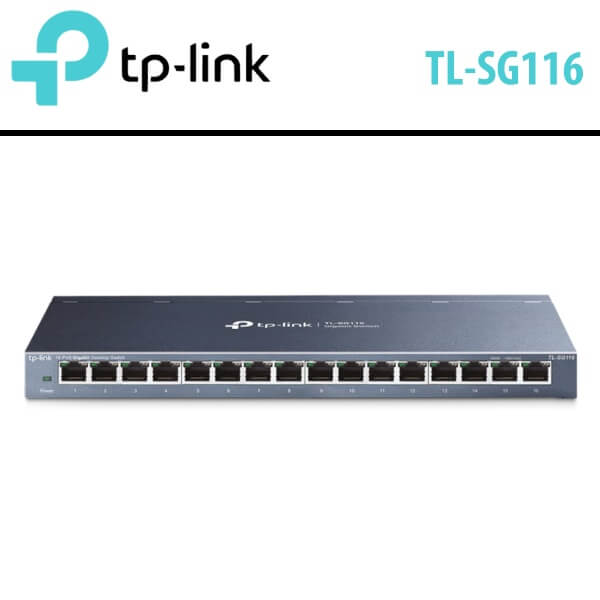

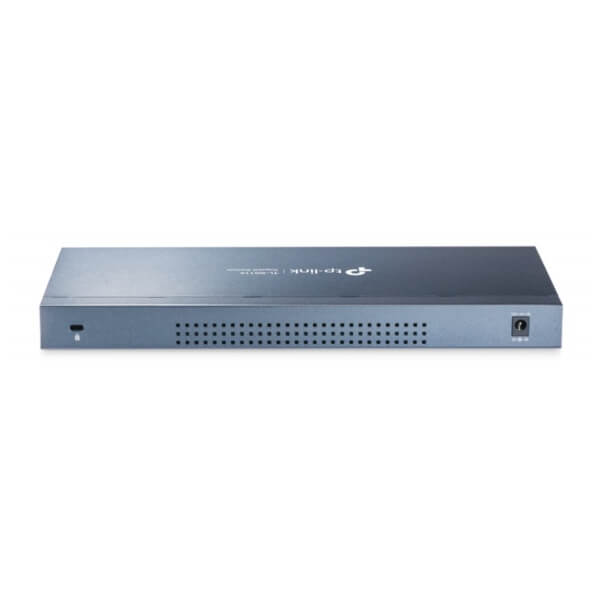

Tplink TL-SG116 Dubai
The Tplink TL-SG116 Dubai 16-Port Desktop Switch with 10/100/1000Mbps capability offers a simple pathway to transitioning to Gigabit Ethernet. Elevate the speed and strengthen the backbone of your network server, or seamlessly introduce Gigabit capability to your desktop. Its plug-and-play design ensures effortless setup without the need for complex configurations. Furthermore, the Tplink TL-SG116 Dubai incorporates energy-efficient technology, resulting in reduced power consumption—a sustainable choice for your home or office network.
Key Features:
Gigabit Network Expansion: The TL-SG116, equipped with 16 10/100/1000Mbps ports, significantly amplifies your network bandwidth, enabling faster file transfers. Whether you’re at home, in the office, working within a team, or engaged in creative production, this switch empowers you to swiftly exchange large files. Instantly share images, CGI, CAD files, or multimedia content across the network.
Eco-Friendly Network Transition: Embrace sustainability as you transition to a Gigabit Network! The TL-SG116 Dubai, from the latest generation of 16-Port 10/100/1000Mbps Desktop Switches, incorporates cutting-edge energy-saving technology that enhances network efficiency. It automatically adjusts power consumption based on connection conditions and cable length, contributing to reduced carbon emissions in your network.
Optimized Traffic Flow: Ensure seamless traffic management, particularly for audio and video content, with the support of 802.1p and DSCP Quality of Service (QoS). Additionally, IGMP Snooping enhances the handling of multicast traffic.
User-Friendly Operation: The TL-SG116 Gigabit Converter simplifies installation, deployment, and troubleshooting with its automatic features. No complex configurations are necessary. Auto MDI/MDX eliminates the need for crossover cables. Auto-negotiation on each port detects and optimally adjusts network device connection speeds (10, 100, or 1000 megabytes per second) for improved compatibility and performance. Furthermore, the fan design of the Tplink TL-SG116 Dubai ensures smooth and reliable operation.
Technical Specs
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p |
| Interface | 16 × 10/100/1000Mbps Ports Auto-Negotiation.
Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter 100VAC ~ 240VAC (Output: 12VDC / 1.0A) |
| LED Indicator | System Power
Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 286 × 112 × 25 mm |
| Max Power Consumption | 10W |
| Max Heat Dissipation | 34.1 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 10KB |
| SOFTWARE FEATURES | |
| Advanced Features | Green Technology
802.3x Flow Control 802.1p/DSCP QOS IGMP Snooping |
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | FCC ,RoHS |
| Package Contents | 16-Port 10/100/1000Mbps Desktop Switch
Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing |
