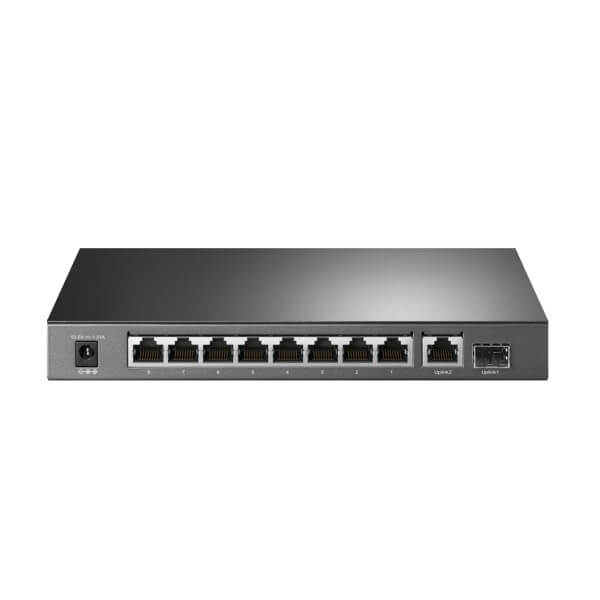

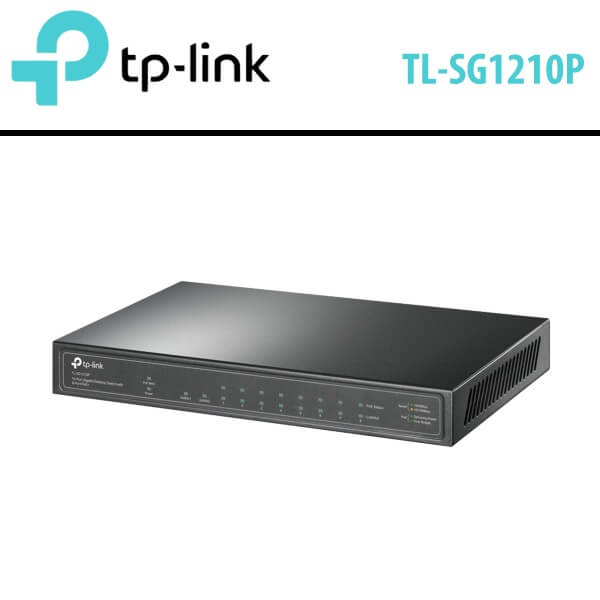

Tplink TL-SG1210P Dubai

Tplink TL-SG1210P Dubai

The Tplink TL-SG1210P Dubai offers 9 10/100/1000Mbps RJ45 ports and 1 Gigabit SFP port. Ports 1 to 8 of the switch are compatible with IEEE 802.3af/at compliant PDs, providing up to 30 W of power for each PoE port.

Category:

Description

Tplink TL-SG1210P Dubai

The Tplink TL-SG1210P Dubai offers 9 10/100/1000Mbps RJ45 ports and 1 Gigabit SFP port. Ports 1 to 8 of the switch are compatible with IEEE 802.3af/at compliant PDs, providing up to 30 W of power for each PoE port and a total PoE power budget of 63 W.The Tplink TL-SG1210P Dubai is designed as an unmanaged switch with a desktop form factor, delivering exceptional performance and quality. Tplink TL-SG1210P Dubai is an excellent choice for expanding your home or office network.

Features

Power over Ethernet

Port 1-8 of the Tplink TL-SG1210P Dubai support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design of the Tplink TL-SG1210P Dubai to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Qos – For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

GMP Snooping – Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Technical Specifications

HARDWARE FEATURES
Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports

1 10/100/1000Mbps RJ45 Port

1 Gigabit SFP Slot

Network Media 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity Fanless
Physical Security Lock Yes
Power Supply External Power Adapter(Output : 53.5VDC / 1.31A)
Backup Bandwidth 20 Gbps
PoE+ Ports(RJ45) Standard : 802.3at/802.3af compliant

PoE Ports : Port1- Port 8

PoE Power Budget : 63W

Mac Address Table 4K
Dimensions ( W x D x H ) 209 × 126 × 26 mm
Max Power Consumption 7.11 W (220/50Hz. no PD connected)

78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation 24.25 BTU/h (no PD connected)

266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs

EEE802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1210P, Power Adapter, Installation Guide
Environment Operating Temperature : 0°C~40°C (32°F~104°F)

Storage Temperature : -40°C~70°C (-40°F~158°F)

Operating Humidity : 10% ~ 90% non-condensing

Storage Humidity : 5%~90% non-condensing
