Description

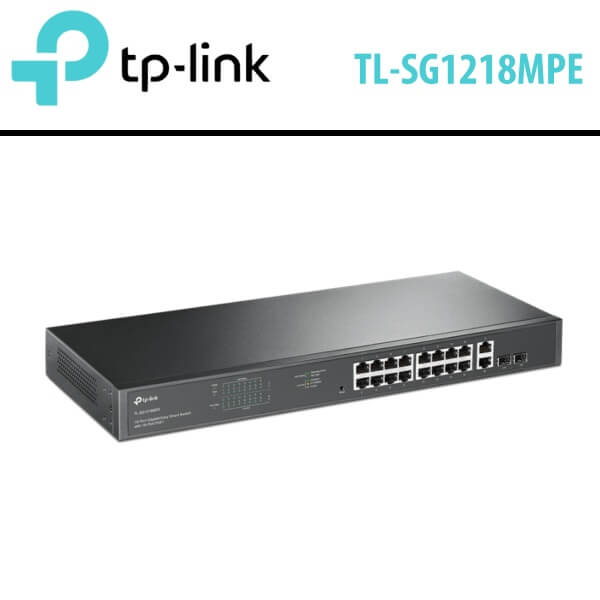

Tplink TL-SG1218MPE Dubai
The Tplink TL-SG1218MPE Dubai JetStream 16-Port Gigabit PoE+ Compliant Managed Switch with SFP by TP-Link. This managed switch boasts 16 PoE+ compliant Gigabit Ethernet ports, offering a 36 Gb/s switching capacity and a 23.8 Mbps forwarding rate for rapid and efficient data transfers. Each port supports a maximum of 30W of power, and there’s a total power budget of 192W to support compatible devices like IP security cameras, outdoor antennas, network attached storage, and more. The switch’s integrated power management system will automatically deactivate lower priority ports to ensure that high-priority devices remain powered and safeguard against power overload. Additionally, there are two SFP ports available for fiber lines and expansion.
Network administrators can leverage QoS tools to prioritize and optimize traffic, and the web-based utility allows for traffic monitoring and other services. To maintain optimal temperatures and performance, two fans are included. The Tplink TL-SG1218MPE Dubai comes with a rack mounting kit, but it can also be placed on a desktop for convenient installation.
Features
Perfect for Surveillance Applications The Tplink TL-SG1218MPE Dubai adheres to the 802.3af/at PoE+ standard, delivering a robust 30W power supply on each PoE port. With a collective high PoE power budget of up to 192W spread across its 16 PoE ports, it’s an excellent fit for small to medium-sized business surveillance systems.
Smart Power Management In situations where total power consumption surpasses 192W, the intelligent power management feature steps in. It selectively cuts off power to lower-priority ports, ensuring the uninterrupted power supply to high-priority devices while safeguarding against power overload.
Simplified Network Management The Tplink TL-SG1218MPE Dubai offers comprehensive network monitoring capabilities, enabling users to observe traffic patterns. Its intuitive web-based user interface and management utility provide an array of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
High-Performance Network Switch Each of the 16 PoE+ compliant Gigabit Ethernet ports delivers a substantial 30W of power, with a combined budget of 192W. Additionally, two SFP ports are available for fiber optic connections.
Swift Data Transmission With a 36 Gb/s switching capacity and an efficient 23.8 Mbps forwarding rate, the Tplink TL-SG1218MPE Dubai ensures rapid data transmission within your network.
Intelligent Power Design Equipped with a built-in power management system, the switch automatically deactivates lower-priority devices, guaranteeing a continuous power supply to high-priority equipment while protecting against potential overloads.
Effortless Network Management The web-based management utility simplifies the process of monitoring and optimizing network traffic performance.
Technical Details
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p | |
Interface | 16 10/100/1000 Mbps RJ45 Ports |
(Auto Negotiation/Auto MDI/MDIX) | |
2 Gigabit SFP Ports | |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
EIA/TIA-568 100Ω STP (maximum 100m) | |
100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
EIA/TIA-568 100Ω STP (maximum 100m) | |
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
EIA/TIA-568 100Ω STP (maximum 100m) | |
1000BASE-X MMF, SMF | |
Fan Quantity | 2 Fans |
Physical Security Lock | Yes |
Power Supply | 100-240V AC, 50/60 Hz |
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant |
PoE+ Ports: 16 Ports | |
Power Supply: 192W | |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 18.73 W (220/50Hz. no PD connected) |
217.22 W (220/50Hz. with 192W PD connected) | |
Max Heat Dissipation | 63.89 BTU/h (no PD connected) |
741.15 BTU/h (with 192W PD connected) | |
PERFORMANCE | |
Switching Capacity | 36 Gbps |
Packet Forwarding Rate | 23.8 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
Quality of Service | Support Port-based 802.1p/DSCP priority |
Support 4 priority queues | |
Rate Limit | |
Storm Control | |
L2 Features | IGMP Snooping V1/V2/V3 |
Static Link Aggregation | |
Port Mirroring | |
Cable Diagnostics | |
Loop Prevention | |
VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
MTU/Port/Tag VLAN | |
Management | Web-based GUI |
Easy Smart Configuration Utility | |
Transmission Method | Store-And-Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | TL-SG1218MPE |
Power Cord | |
Installation Guide | |
Resource CD | |
Rackmount Kit | |
Rubber Feet |
