Tplink TL-SG2008 Dubai

Tplink TL-SG2008 Dubai

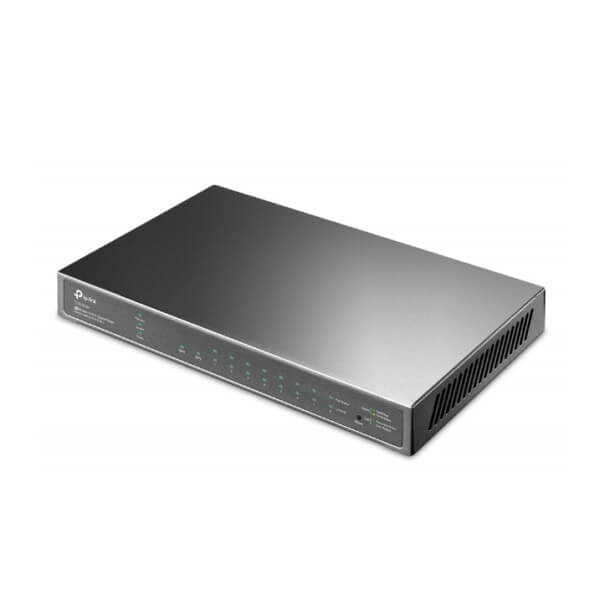

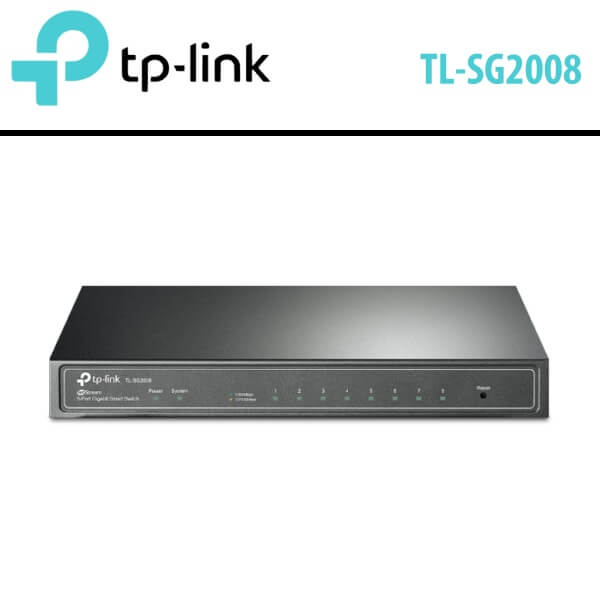

The Tplink TL-SG2008 Dubai 8-Port Gigabit Smart Switch by TP-Link empowers network administrators with comprehensive control over various network operations.

Category:

Description

Tplink TL-SG2008 Dubai

The Tplink TL-SG2008 Dubai 8-Port Gigabit Smart Switch by TP-Link empowers network administrators with comprehensive control over various network operations. Its capabilities, including loopback detection, cable diagnostics, and IGMP snooping, enable efficient and effective traffic management. The eight high-speed Gigabit Ethernet ports ensure reliable wired connections, while the advanced Quality of Service (QoS) features make it straightforward to prioritize traffic, guaranteeing sufficient network resources for bandwidth-intensive tasks.

Features

Layer 2 Features

  • Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
  • Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
  • STP/RSTP/MSTP
  • IGMP Snooping

Quality of Service

  • 4 priority queues
  • Support IEEE 802.1P
  • DSCP QoS
  • Rate limit feature

Security Strategies

  • Access Control List (L2~L4 ACL)
  • Port Security
  • Storm Control
  • SSL and SSH encryptions

Management

  • Web-based GUI
  • Command Line Interface (Telnet)
  • SNMP v1/v2c/v3
  • RMON (1, 2, 3, 9 group)

Technical Specs

Interfaces

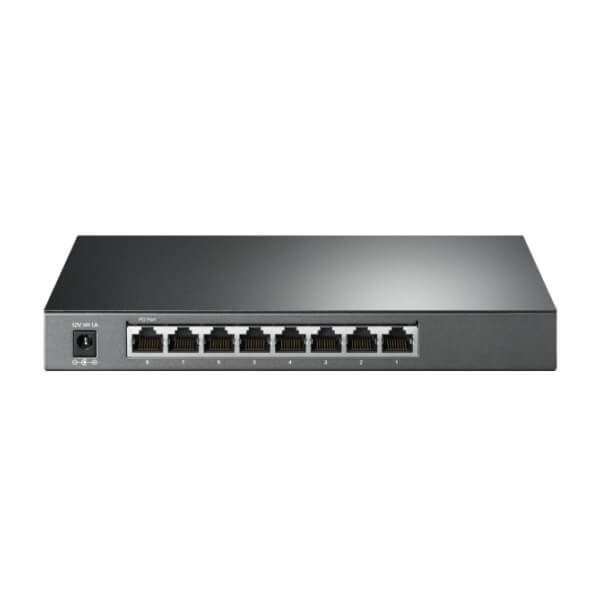

Ports 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Protocols
Supported Protocols
  • Auto-MDIX/MDI
  • IGMP Snooping
  • Link Aggregation
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9,216 Bytes
MAC Address Table Size 8K
VLAN Groups 512
VLAN IDs 4000
Security
Security Features Storm Control
Standards
Supported IEEE Standards 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3i, 802.3u, 802.3x
Performance
Forwarding Rate 11.9 Mpps
Switching Bandwidth 16 Gb/s
Priority Queues 4
Computer
OS Compatibility
  • Windows XP or Later
  • macOS
  • Linux
  • UNIX
Electrical
Power Draw 6.42 W (Active)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
Certifications RoHS, as per Manufacturer
General
Cooling System Passive
Dimensions 8.2 x 4.9 x 1″ / 20.9 x 12.6 x 2.6 cm
Packaging Info
Package Weight 2.1 lb
Box Dimensions (LxWxH) 11.024 x 8.898 x 2.677″
