Description

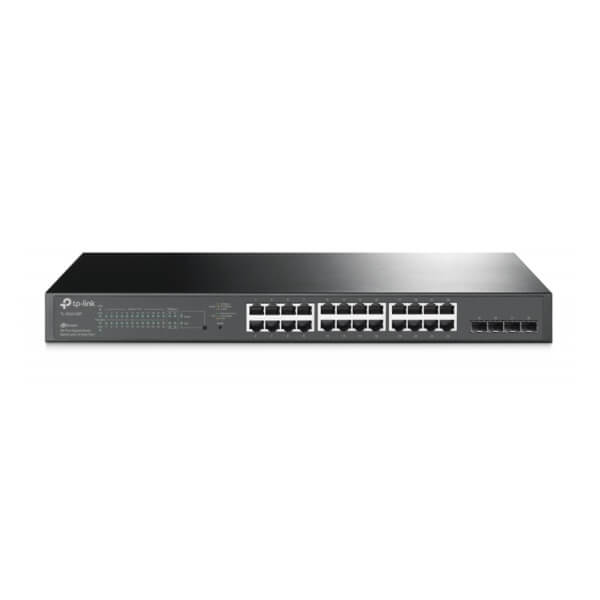

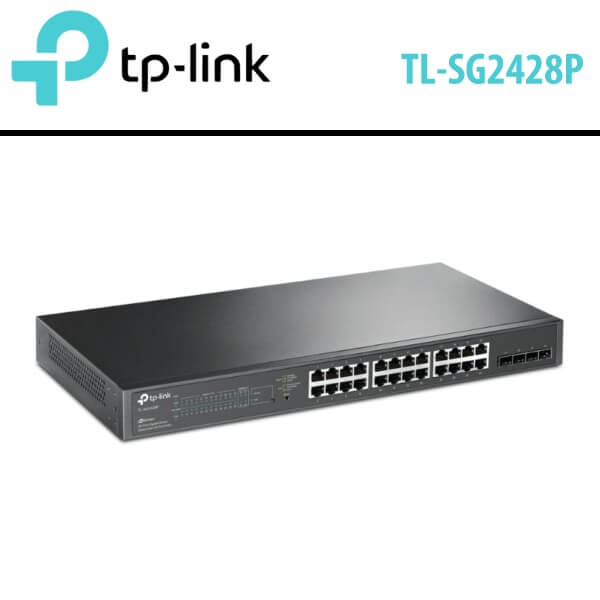

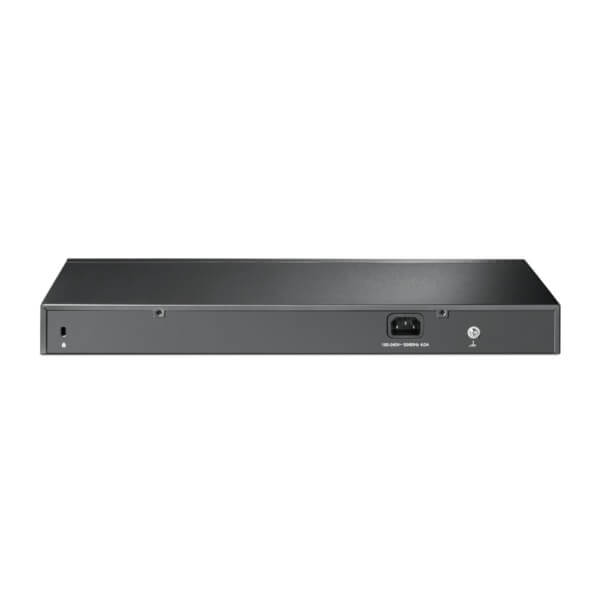

Tplink TL-SG2428P Dubai
The Tplink TL-SG2428P Dubai JetStream 24-Port PoE+ Compliant Gigabit Managed Switch Elevate your office or business network capabilities to accommodate a diverse array of devices. This managed switch, designed for rack-mounting, boasts 24 PoE+ compliant Gigabit Ethernet ports, equipped with a robust power budget of 250W, facilitating the operation of compatible devices such as IP security cameras, VoIP phones, wireless access points, and more. Additionally, Tplink TL-SG2428P Dubai offers four Gigabit SFP ports for high-speed fiber uplinks.
With an impressive switching capacity of 56 Gb/s and a forwarding rate of 41.7 Mpps, the Tplink TL-SG2428P Dubai ensures seamless data transfers. Its extensive set of Layer 2 features empowers you to configure and manage your network to align perfectly with your business’s unique requirements. To fortify network security, a suite of protective measures is at your disposal, including an Access Control List (ACL), Storm Control, and DHCP Snooping, all aimed at safeguarding your network against potential threats.
For the convenience of remote network device management, harness the power of the Omada Software Defined Networking platform, seamlessly accessible through the Omada app.
Features
Centralized Management
The Omada Software Defined Networking (SDN) platform integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability. Configure, manage, and monitor your network using a single interface, from almost anywhere in the world, through the cloud portal interface and Omada smartphone and tablet app.
Security Features
Protect your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more, using the new Tplink TL-SG2428P Dubai
Advanced Features
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
Specifications
Interfaces | |
Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10/100/1000 Mb/s Gigabit SFP |
Protocols | |
Layer Services Supported | Layer 2 Support |
Supported Protocols | Auto-MDIX/MDI
DHCP Server DoS IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering RADIUS SNMPv1 SNMPv2c SNMPv3 |
Queuing | Strict Priority, Weighted Round Robin (WRR) |
Jumbo Frames Support | 9000 Bytes |
MAC Address Table Size | 8K |
VLAN Groups | 4000 |
Security | |
Security Features | DHCP Snooping
DoS Attack Prevention RADIUS Authentication Storm Control |
Access Control List | 230 |
Standards | |
Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3i, 802.3u, 802.3x, 802.3z |
Performance | |
Forwarding Rate | 41.7 Mpps |
Switching Bandwidth | 56 Gb/s |
Priority Queues | 8 |
Packet Buffer | 4.1 Mb |
Electrical | |
Power Draw | 308.6 W (Max) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
PoE Power Budget | 250 W |
Environmental | |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Operating Humidity | 10 to 90% |
Storage Temperature | -40 to 158°F / -40 to 70°C |
Storage Humidity | 5 to 90% |
General | |
Cooling System | Fan |
Material of Construction | Metal |
Rack Form Factor | 1 RU |
Dimensions | 17.3 x 8.7 x 1.7″ / 440 x 220 x 44 mm |
Packaging Info | |
Package Weight | 8.675 lb |
Box Dimensions (LxWxH) | 20.8 x 13.3 x 4″ |
