Tplink TL-SG3428MP Dubai

Tplink TL-SG3428MP Dubai

The Tplink TL-SG3428MP Dubai switch supports dual stack IPv4/IPv6 with 16 IP interfaces. It features enterprise-class QoS capabilities (IEEE 802.1p CoS/DSCP, 8 queues, SP, WRR, SP WRR priority modes), intelligent multicast forwarding.

Category:

Description

Tplink TL-SG3428MP Dubai

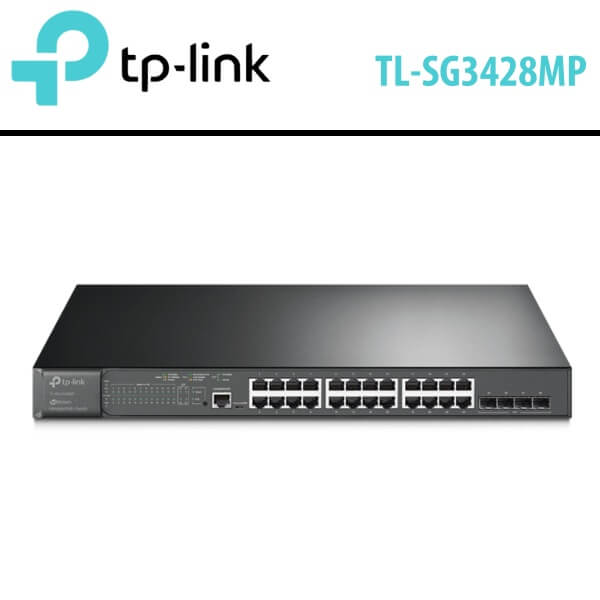

The Tplink TL-SG3428MP Dubai PoE Managed Switch is equipped with four SFP slots, offering the capability for logical clustering and the expansion of scalable fiber networks (SFP module not included). Additionally, it boasts 24 Gigabit RJ-45 ports with PoE support compliant with 802.3af/at standards. The switch provides a substantial PoE budget, allocating 30 watts per port and a total of 384 watts.

Furthermore, the Tplink TL-SG3428MP Dubai switch supports dual stack IPv4/IPv6 with 16 IP interfaces. It features enterprise-class QoS capabilities (IEEE 802.1p CoS/DSCP, 8 queues, SP, WRR, SP WRR priority modes), intelligent multicast forwarding through IGMP snooping v1/v2/v3, access control lists (ACLs) for resource access restriction, and a voice VLAN, all of which enhance traffic management and optimization for voice and video applications.

To ensure secure management, it provides a standard Web User Interface (GUI) with HTTPS protection using either SSLv3 or TLS1.2 encryption (depending on the device’s operating system). Additionally, it supports a Command Line Interface (CLI) accessible through console ports (RJ-45 and microUSB) and telnet with SSHv1 and SSHv2 encryption, safeguarding against eavesdropping and sniffing.

Features

  • Software Defined Networking (SDN) with intelligent access
    • The Omada SDN platform integrates access points, switches and gateways to provide 100% centralized control over the cloud. Omada provides an easily scalable network managed from a single interface. Seamless, drop-free and drop-in connections are provided, which are ideal for use in hospitality, education, retail, office and other environments.
  • 384 W total PoE power : 24 PoE ports compliant with 802.3at/af standards, providing 384 W total power
  • Gigabit ports : Tplink-TL-SG3428MP-Dubai has 24 gigabit PoE ports and 4 SFP slots which translate into high speed connections
  • Operation integrated with Omada SDN platform : unattended ZTP configuration, central cloud management and intelligent monitoring
  • Central management : cloud access and Omada app for management convenience
  • Static Routing : Controls internal traffic for more efficient use of network resources
  • Reliable Security : IP, MAC and port binding, ACL, Port Security, protection against DoS attacks, Storm Control, DHCP Snooping, 802.1X, authentication via Radius server and more
  • Optimization of voice and video transmission : QoS L2/L3/L4 and IGMP Snooping
  • Management : Functions of the Tplink-TL-SG3428MP-Dubai such as Web site, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide extensive management capabilities

Technical Specs

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 24x [10/100/1000M (RJ45)] , 4x [1G (SFP)] ,
Number of PoE ports 24x [802.3af/at (1G)]
10G support N
AC input frequency 50/60
AC input voltage 100 – 240
Access Control List (ACL) Y
Active link detection Y
ARP inspection Y
Authentication MAC-based authentication, Port-based authentication
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
BPDU filtering/protection Y
Broadcast storm control Y
Certification CE, FCC, RoHS
Cloud-managed Y
Configuring Location Settings (CLI) Y
Console port RJ-45
Depth 180
DHCP features DHCP client,DHCP server
Ethernet LAN data rates 10,100,1000
Flow control support Y
Forwarding rate 41.66
Harmonized System (HS) code 85176990
Head-of-line (HOL) blocking Y
Height 44
IGMP snooping Y
IP routing Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
Loop protection Y
MAC address filtering Y
MAC address table 8000
Management Yes
Multicast support Y
Networking standards IEEE 802.3af,IEEE 802.3at
Number of fans 2
Operating relative humidity (H-H) 10 – 90
Operating temperature (T-T) 0 – 45
Port mirroring Y
Power (W) 384
Power consumption (max) 463.8
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) power per port 30
Power over Ethernet plus (PoE+) ports quantity 24
Power supply included Y
Product colour Black
Quality of Service (QoS) support Y
Quick start guide Y
Rack mounting Y
Rate limiting Y
SFP module slots quantity 4
Spanning tree protocol Y
SSH/SSL support Y
Static port security Y
Storage relative humidity (H-H) 5 – 90
Storage temperature (T-T) -40 – 70
Switch layer L2/L2+
Switch type Managed
Switching capacity 56
Switching layer 2
System event log Y
Type of case Rack (1U)
User guide Y
VLAN support Y
Web-based management Y
Width 440
Hardware features
Manufacturer TP-Link
Model TL-SG3428MP
Type Switch
Ports
  • 24 RJ45 10/100/1000 Mbps ports
  • 4 Gigabit SFP slots
  • 1 RJ45 console port
  • 1 micro-USB console port
Fanless No, 2 fans
Power supply 100-240 V AC~50/60 Hz
PoE ports (RJ45)
  • Standards : 802.3af/at
  • PoE Ports : 24 ports, up to 30 W per port
  • Power supply : 384 W
Dimensions (H x W x D) 440 mm × 330 mm × 44 mm
(17.3 × 13.0 × 1.7 inches)
Mounting Rack-mountable
Max. power consumption
  • 31.0 W (110 V/50 Hz) (with no PoE-enabled device connected)
  • 463.8 W (110 V/50 Hz) (when operating at 384 W)
Amount of heat generated
  • 105.78 BTU/h (without PoE enabled device connected)
  • 1582.49 BTU/h (when operating at 384 W)
Performance
Switching capacity 56 Gbps
Packet forwarding rate 41.66 Mp/s
MAC Address Table 8K
Jumbo frames 9 KB
Software functions
Quality of Service function
  • Support for 802.1p CoS/DSCP prioritization
  • 8 prioritization queues
  • Priority scheduling mode :
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
    • SP WRR
  • Bandwidth control
    • Rate limiting based on port/data flow
  • Smoother operation
  • Actions for flows
    • Mirror (to a supported interface)
    • Redirect (to a supported interface)
    • Speed limit
    • QoS Remark
L2 and L2 functions
  • Link aggregation
    • Static link aggregation
    • Up to 8 aggregation groups and up to 8 ports per group
    • 802.3ad LACP
  • Spanning Tree Protocol (STP)
    • STP 802.1D
    • RSTP 802.1w
    • MSTP 802.1s
    • STP security : TC protection, BPDU packet filtering/protection, Root protection, Loopback protection
  • Loopback detection
    • Port-based
    • VLAN-based
  • Flow control
    • 802.3x flow control
    • HOL Blocking Prevention
  • Mirroring
    • Port Mirroring
    • CPU Mirroring
    • One-to-One transmission
    • Many-to-One transfer
    • I/O port / both ports
L2 Multicast
  • Support for 511 IGMP groups (IPv4, IPv6)
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Fast Leave
    • IGMP Snooping Querier
    • IGMP Authentication
  • IGMP Authentication
  • MVR
  • MLD Snooping
    • MLD v1/v2 Snooping
    • Fast Leave
    • MLD Snooping Querier
    • Static group configuration
    • Restricted IP Multicast Forwarding
  • Multicast Filtering : 256 profiles and 16 entries per profile
VLANs
  • VLAN groups
    • Max. 4K VLAN groups
  • 802.1Q VLAN Tagging
  • VLAN MAC Address : 12 entries
  • VLAN Protocol
  • GVRP
  • VLAN VPN (QinQ)
    • Port-based QinQ
    • Selective QinQ
  • Voice VLAN
Access control lists
  • Time-based access control list (ACL)
  • ACL MAC Address
    • Source MAC Address
    • Destination MAC Address
    • VLAN ID
    • User Priority
    • Ethertype
  • ACL IP Address
    • Source IP Address
    • Destination IP Address
    • Fragment
    • IP Protocol
    • TCP Flag
    • TCP/UDP port
    • TOS DSCP/IP
    • User Priority
  • ACL IPv6
  • Packet Content ACL
  • Combined ACL
  • Access control policy
    • Mirroring
    • Speed limit
    • Redirect
    • QoS Remark
  • ACL to port/VLAN
Transmission security
  • IP, MAC and port binding
    • DHCP Snooping
    • ARP Inspection
    • IPv4 Source Address Protection
  • IPv6, MAC and Port Address Binding
    • DHCPv6 Snooping
    • ND Detection
    • IPv6 Source Address Protection
  • Protection against DoS attacks
  • Port protection through static/dynamic/permanent port configuration
    • Up to 64 MAC addresses per port
  • Storm Control Broadcast/Multicast/Unicast
    • Control Mode (kbps/rate/p/s)
  • 802.1X authentication
    • Port-based authentication
    • MAC address-based authentication
    • VLAN allocation
    • MAB
    • Guest VLAN
    • Radius Authentication and Authorization
  • AAA (incl. TACACS )
  • Port isolation
  • Secure web-based management via HTTPS with SSLv3/TLS 1.2 encryption
  • Secure CLI management with SSHv1/SSHv2 encryption
  • Access control based on IP/port/MAC
IPv6
  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACLs
  • IPv6 Interface
  • IPv6 Static Routing
  • Neighbor discovery (ND) used by IPv6 nodes
  • Path maximum transmission unit (MTU) discovery
  • ICMP v6
  • TCP v6/UDP v6
  • IPv6 applications :
    • DHCPv6 client
    • Ping6
    • Tracert6
    • Telnet (v6)
    • SNMP IPv6
    • SSH IPv6
    • SSL IPv6
    • Http/Https
    • TFTP IPv6
Features of the L3 switch
  • 16 IPv4/IPv6 interfaces
  • Static routing
    • 48 static routes
  • Static ARP entries
  • 316 ARP entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay
  • DHCP L2 Relay
Management
  • GUI graphical interface
  • Command line interface CLI
  • SNMP v1/v2c/v3
  • SNMP Trap/Inform
  • RMON (groups 1, 2, 3, 9)
  • SDM template
  • DHCP/BOOTP client
  • LLDP/LLDP-MED 802.1ab
  • Automatic DHCP installation
  • Dual Image, Dual Configuration
  • CPU usage monitoring
  • Cable diagnostics
  • EEE
  • Password recovery
  • SNTP
  • System logs
Advanced features
  • Support for Omada hardware controllers (OC200/OC300), software controller, cloud-based controller
  • Automatic device discovery
  • Group configurations
  • Group software updates
  • Intelligent network health monitoring
  • Abnormal event alerts
  • Unified configuration process
  • Restart scheduler
  • Maintenance-free ZTP configuration
Other
Certificates CE, FCC, RoHS
Contents of the package
  • TL-SG3428MP Switch
  • Power Supply
  • Installation Instructions
  • Mounting kit
  • Rubber feet
Work environment
  • Operating temperature : 0℃~45℃ (32℉~113℉);
  • Storage temperature : -40℃~70℃ (-40℉~158℉);
  • Operating humidity : 10%~90%, non-condensing
  • Storage humidity : 5%~90%, non-condensing
