Tplink TL-SL1226P Dubai

Tplink TL-SL1226P Dubai

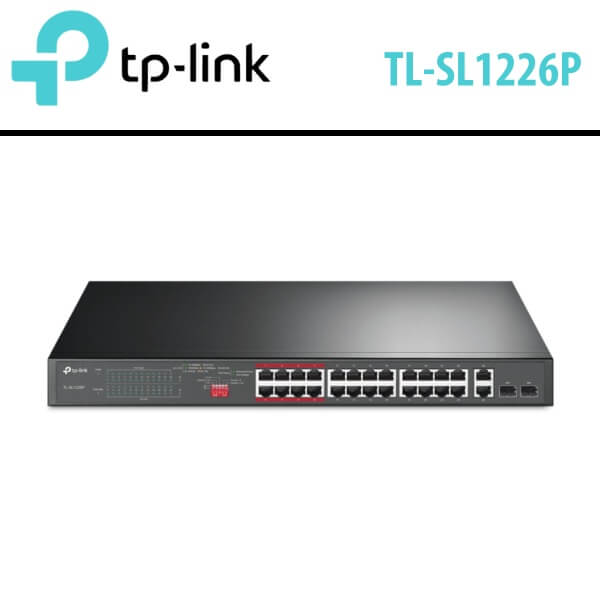

The Tplink TL-SL1226P Dubai, a 24-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch by TP-Link. This unmanaged switch boasts 24 10/100 Mb/s PoE+ compliant ports, each capable of delivering 30W of power with a combined budget of 250W.

Category:

Description

Tplink TL-SL1226P Dubai

The Tplink TL-SL1226P Dubai, a 24-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch by TP-Link. This unmanaged switch boasts 24 10/100 Mb/s PoE+ compliant ports, each capable of delivering 30W of power with a combined budget of 250W. It empowers you to operate various compatible devices such as IP cameras, IP phones, access points, and more.

With an impressive 8.8 Gb/s switching capacity and a rapid 6.54 Mbps forwarding rate, this switch ensures efficient data flow. It features a plug-and-play design, making it effortlessly adaptable for desktop or rack-mountable setups without the need for extra hardware or software. Additionally, by adjusting its DIP switches, you can activate the extend mode, increasing the PoE range from 328′ at 100 Mb/s data throughput to a remarkable 820.21′ at 10 Mb/s. This feature is particularly advantageous for long-range camera installations.

Furthermore, the switch provides the flexibility to designate Ports 1 through 8 to Priority Mode, enhancing video quality. For heightened security, all ports can be set to Isolation Mode. Plus, it offers two Gigabit Ethernet ports to connect compatible devices like network storage, along with two combo Gigabit SFP slots for fiber connections.

Features

Power Your Network Devices

The Tplink TL-SL1226P Dubai includes 24 10/100 Mb/s PoE+ compliant ports that support 30W per port with a total budget of 250W to operate surveillance, access points, IP phones, and more.

Intelligent Power Management

This plug-and-play switch features Intelligent Power Management that automatically detects your power requirements and turns off power to lower priority ports when the total consumption exceeds its 250W capacity. This protects the switch from power overload and helps prevent connected devices from being damaged while high priority devices remain functional.

Extend Mode

Adjust the DIP switches to put the ports into extend mode, which increases the PoE range from 328′ with a 100 Mb/s data throughput to up to 820.21′ at 10 Mb/s.

Priority Video Quality

Switching ports 1 to 8 to Priority Mode assigns them to a higher priority to enhance the quality of your video surveillance feeds.

Port Separation

Configuring the ports to Isolation Mode divides the traffic to help protect against snooping and tampering. It enables the switch to isolate broadcast storm, improving the LAN security and data transmissions.

Expansion

The Tplink TL-SL1226P Dubai has two Gigabit Ethernet ports alongside two Gigabit combo SFP slots for compatible devices.

Staying Cool

Dual fans and a durable metal casing help the Tplink TL-SL1226P Dubai operate at optimal temperatures.

Specifications

Interfaces
Ports
  • 24 x 10/100 Mb/s Ethernet (RJ45) PoE+
  • 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
  • 2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP)
Protocols
Supported Protocols Auto-MDIX/MDI
Transmission Method Store-and-Forward
Jumbo Frames Support 10 Bytes
MAC Address Table Size 8K
Security
Security Features Storm Control
Standards
Supported IEEE Standards 802.3af, 802.3at
Performance
Forwarding Rate 6.54 Mpps
Switching Bandwidth 8.8 Gb/s
Packet Buffer 4.1 Mb
Electrical
Power Draw 294.00 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 250 W
PoE per Port 30 W
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Cooling System Fan
Material of Construction Metal
Rack Form Factor 1 RU
Dimensions 17.3 x 7.1 x 1.7″ / 440 x 180 x 44 mm
Packaging Info
Package Weight 6.44 lb
Box Dimensions (LxWxH) 20.9 x 9.9 x 3.3″
