Description

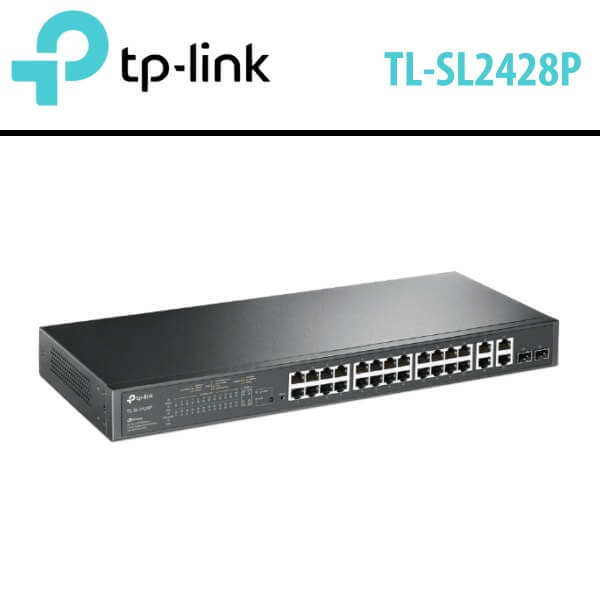

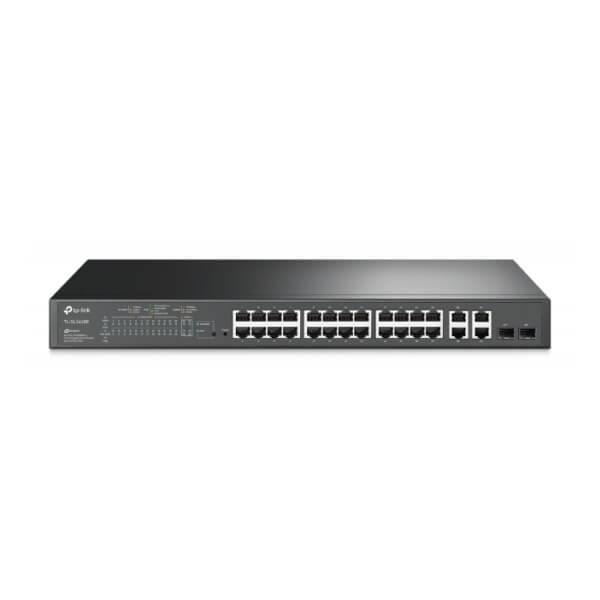

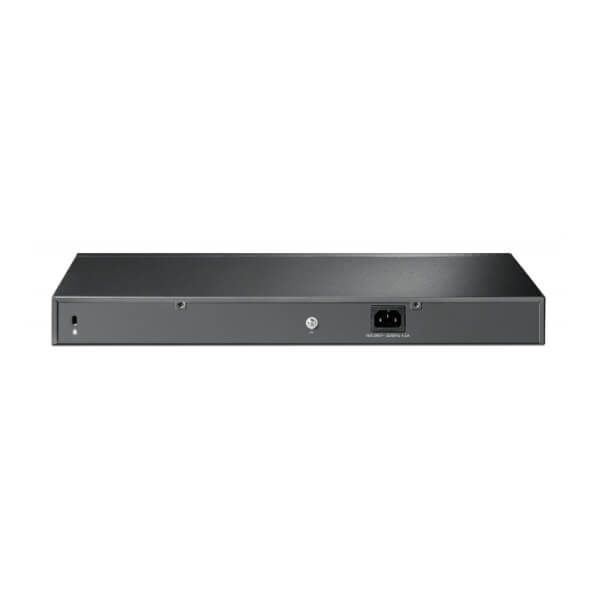

Tplink TL-SL2428P Dubai
The Tplink TL-SL2428P Dubai V4 24-Port 10/100 Mb + 4-Port Gigabit PoE+ Compliant Managed Network Switch from TP-Link Elevate your business operations by harnessing the power of Power-over-Ethernet (PoE) devices such as IP security cameras, access points, VoIP phones, and more. This versatile switch features twenty-four PoE+ compliant 10/100 Mb/s ports, boasting a total power budget of 250W. With this capacity, you can effortlessly operate a range of compatible devices and establish a comprehensive surveillance system.
Additionally, the Tplink TL-SL2428P Dubai offers four Gigabit Ethernet ports, providing high-speed connections to computers and other non-PoE devices. Moreover, it incorporates four Gigabit RJ45/SFP combo ports for uplink connections, ensuring seamless connectivity. With a robust 12.8 Gb/s switching capacity, a forwarding rate of 9.5 Mpps, and a wealth of layer 2 features, this switch is meticulously designed to facilitate smooth data transfer, support high-quality voice communication, and optimize streaming video performance.
The Tplink TL-SL2428P Dubai allows for flexible configuration and management, offering the choice of either a user-friendly web-based interface or a command-line interface, catering to various preferences and requirements.
Key Features
Advanced Quality of Service (QoS) Capabilities Administrators can prioritize traffic using a range of criteria, including Port Priority, 802.1P Priority, and DSCP Priority. This ensures that voice and video transmissions remain clear, smooth, and free from jitter. When used in conjunction with the Voice VLAN feature, the switch further enhances the performance of voice applications.
Storm Control The Storm Control feature safeguards your network against broadcast, multicast, and unknown unicast storms, maintaining network stability and performance.
Comprehensive Layer 2 Functionality The Tplink TL-SL2428P Dubai offers a comprehensive set of layer 2 features, including 802.1Q VLAN tagging, port isolation, port mirroring, STP/RSTP/MSTP (Spanning Tree Protocol/Rapid Spanning Tree Protocol/Multiple Spanning Tree Protocol), link aggregation grouping, and 802.3x flow control. It also includes advanced network maintenance capabilities like loopback detection, cable diagnostics, and IGMP snooping. IGMP snooping ensures that the switch intelligently forwards multicast streams only to the appropriate subscribers, while IGMP throttling and filtering restrict multicast access on a per-port basis to prevent unauthorized access.
Enterprise-Level Management The Tplink TL-SL2428P Dubai network switch supports various user-friendly standard management features, offering an intuitive web-based Graphical User Interface (GUI) and a standard Command Line Interface (CLI). SNMP (Simple Network Management Protocol) versions 1, 2, and 3, along with RMON (Remote Monitoring), provide robust monitoring and management capabilities, enabling the switch to provide valuable status information and generate alerts in response to abnormal events.
Technical Specs
Interfaces | |
Ports | 24 x 10/100 Mb/s Ethernet (RJ45) PoE+
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) (Uplink) |
Protocols | |
Layer Services Supported | Layer 2 Support, Layer 3 Support, Layer 4 Support |
Supported Protocols | Auto-MDIX/MDI
IGMP Snooping IPv4 IPv6 Link Aggregation Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 |
Queuing | Strict Priority, Weighted Round Robin (WRR) |
Jumbo Frames Support | 9216 Bytes |
MAC Address Table Size | 8K |
VLAN Groups | 4000 |
Security | |
Security Features | DoS Attack Prevention
RADIUS Authentication Storm Control |
Access Control List | 230 |
SNMP Support | 1, 2c, 3 |
Standards | |
Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3i, 802.3u, 802.3x, 802.3z |
Performance | |
Forwarding Rate | 9.5 Mpps |
Switching Bandwidth | 12.8 Gb/s |
Priority Queues | 8 |
Computer | |
OS Compatibility | Windows
Windows NT macOS UNIX Linux |
Electrical | |
Power Draw | 286.7 W (Max) |
PoE Power Budget | 250 W |
PoE per Port | 30 W |
Environmental | |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Operating Humidity | 10 to 90% |
Storage Temperature | -40 to 158°F / -40 to 70°C |
Storage Humidity | 5 to 90% |
General | |
Cooling System | Fan |
Rack Form Factor | 1 RU |
Dimensions | 17.3 x 7.1 x 1.7″ / 440 x 180 x 44 mm |
Packaging Info | |
Package Weight | 6.57 lb |
Box Dimensions (LxWxH) | 21.1 x 10.1 x 3.2″ |
