Tplink TL-SM5110LR Dubai

Tplink TL-SM5110LR Dubai

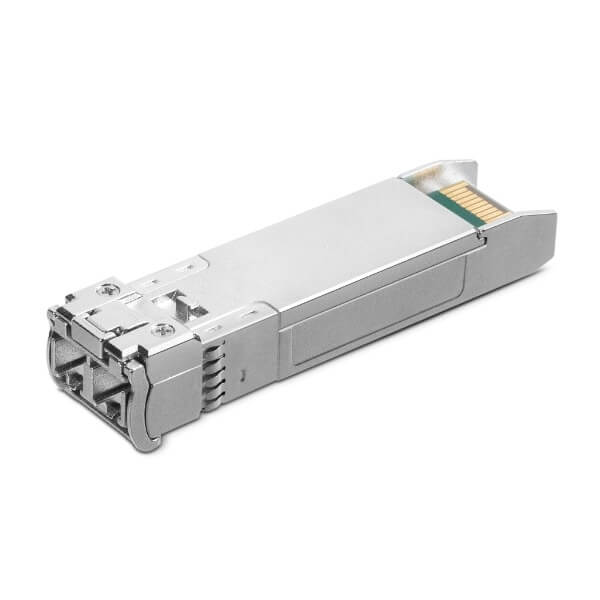

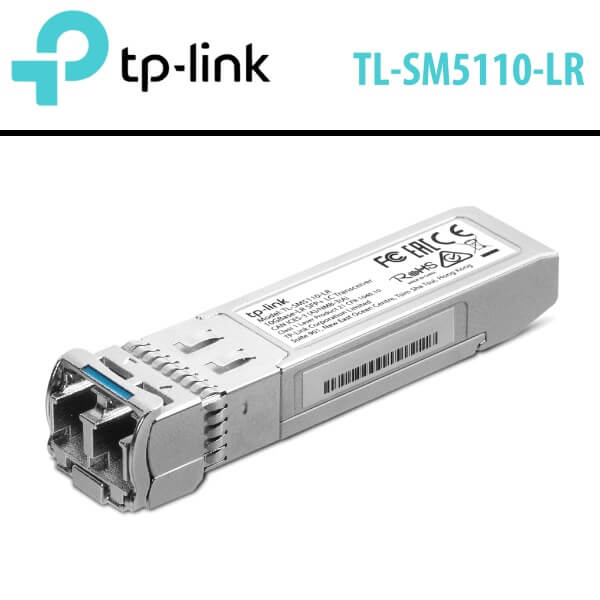

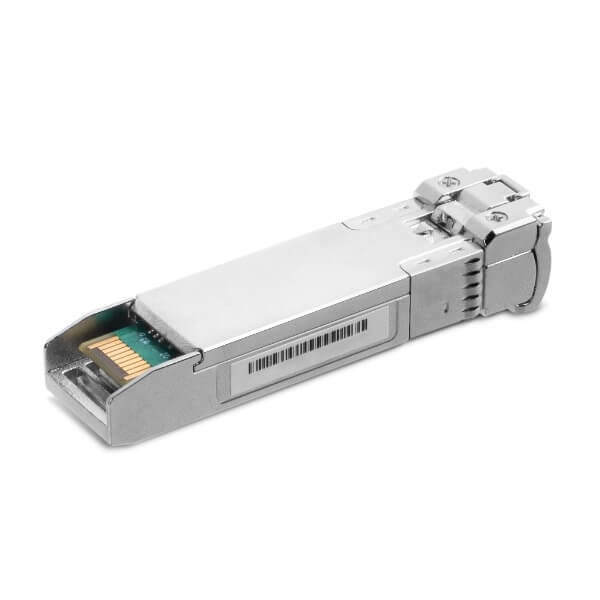

The Tplink TL-SM5110LR Dubai is engineered to extend data transfer distances for 10Gbps Ethernet connections. This high-performance transceiver operates at 10GBASE-LR, utilizing a 1310 nm single-mode SFP+ interface. It enables full-duplex 10G.

Category:

Description

Tplink TL-SM5110LR Dubai

The Tplink TL-SM5110LR Dubai is engineered to extend data transfer distances for 10Gbps Ethernet connections. This high-performance transceiver operates at 10GBASE-LR, utilizing a 1310 nm single-mode SFP+ interface. It enables full-duplex 10G Ethernet connections, extending up to 10 km when paired with 9/125µm fiber cables.

Features

  • Single-mode SFP+ LC Transceiver
  • Tplink TL-SM5110LR is hot-pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
  • Tplink TL-SM5110LR is compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Technical Specs

PACKAGE CONTENTS
Package Contents
  • 10G SFP+ Module TL-SM5110-LR
  • Installation Guide
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE 802.3ae, TCP/IP
Wave Length 1310 nm
Power Supply 3.3V
Fiber Type 9/125um Single-Mode
Max. Cable Length 10 km
Data Rate 10 Gbps
Port Type LC Duplex
Safety & Emission FCC, CE
Environment
  • Operating Temperature : 0–70 °C (32–158 °F)
  • Storage Temperature : -40–85 °C ( -40–185 °F)
  • Operating Humidity : 10–90% RH, Non-Condensing
  • Storage Humidity : 5–90% RH, Non-Condensing
