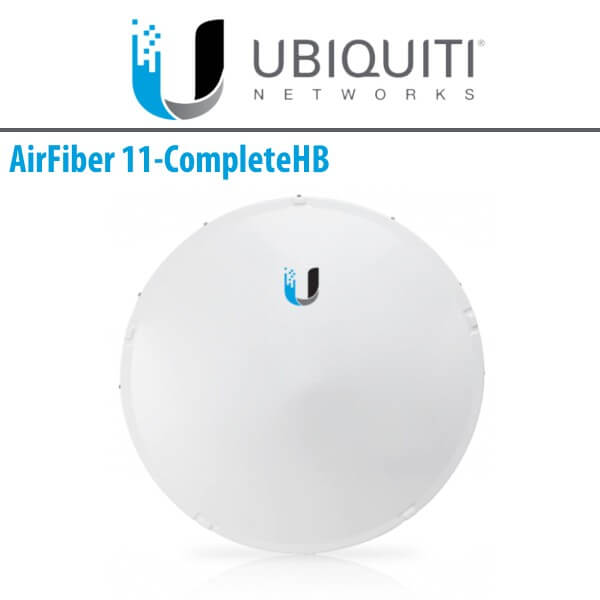

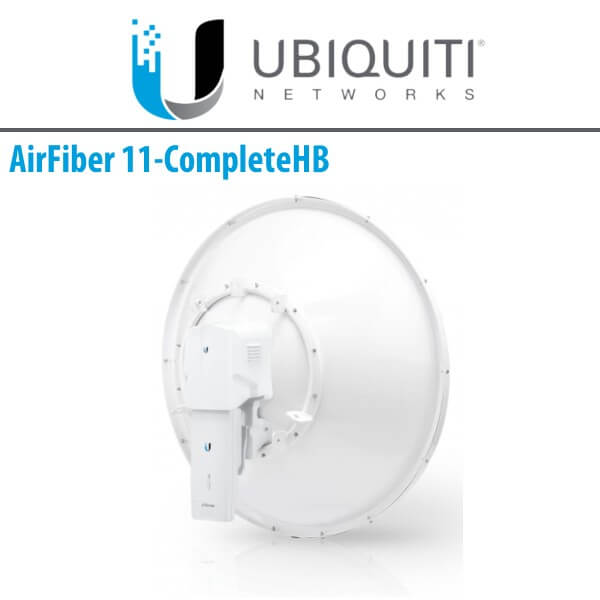

Ubiquiti AF11-CompleteHB Dubai

Ubiquiti AF11-CompleteHB Dubai

The Ubiquiti AF11-CompleteHB Dubai boasts a sleek and space-efficient design, facilitating straightforward deployment across various scenarios. Pioneering a breakthrough, it stands as the first modular airFiber radio system.

Category:

Description

Ubiquiti AF11-CompleteHB Dubai

The Ubiquiti AF11-CompleteHB Dubai boasts a sleek and space-efficient design, facilitating straightforward deployment across various scenarios. Pioneering a breakthrough, it stands as the first modular airFiber radio system specifically engineered for the 11 GHz licensed frequency spectrum, liberating itself from the crowded 5 GHz band. With its exceptional wireless Gigabit+ performance, minimal latency, and impressive range, the Ubiquiti AF11-CompleteHB Dubai emerges as the perfect choice for a wide array of applications, including carrier backhaul, inter-building enterprise connectivity, and public safety requirements.

Features

  • Ubiquiti AF11-CompleteHB Dubai boasts of a full duplex point-to-point radio
  • 11 GHz frequency operation
  • Up to 1.2+ Gbps throughput
  • Ubiquiti AF11-CompleteHB Dubai includes one high-band duplexer for SISO mode (MIMO mode requires an optional second duplexer)
  • Integrates with AF-11G35 11 GHz antenna
  • Supports separate TX/RX frequencies
  • Ubiquiti AF11-CompleteHB Dubai accepts PoE or DC power

Technical Specs

AirFiber AF-11
Dimensions 327 x 112 x 86 mm
(12.87 x 4.41 x 3.39″)
Weight 2.26 kg (5.0 lb)
RF Connectors (4) SMA Weatherproof, Two per Chain:
TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer
Power Supply 50V, 1.2A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet, DC Power Block)
Power Supply UniFi PoE Switch
Supported Voltage Range 38-56VDC
Certifications FCC Part 101, ETSI EN 302 217
Mounting AF-11G35 Mount Compatible
Operating Temperature -40 to 55° C (-40 to 131° F)
Networking Interface
Data
Management
(1) 10/100/1000 Ethernet Port
(1) 10/100 Ethernet Port
System
Processor INVICTUS™ 2 IC
Maximum Throughput 1.2+ Gbps
Encryption 128-bit AES
OS airOS F
Wireless Modes SISO/MIMO
Operating Frequency 10.7-11.7 GHz
(Depends on Regulatory Region*)
Max. Conducted TX Power 30 dBm
(Depends on Regulatory Region*)
Frequency Accuracy ± 1 ppm
Channel Bandwidth 3.5/5/7/10/14/20/28/30/40/50/56 MHz
Selectable**
Programmable Uplink and Downlink Duty Cycles
AirFiber AF‑11G35
Dimensions 811 x 811 x 460 mm
(31.9 x 31.9 x 18.1″)
Weight
Mount Not Included
Mount Included
7.14 kg (15.74 lb)
11.85 kg (26.12 lb)
Frequency 10.3 to 11.7 GHz
Gain 35 dBi
HPOL Beamwidth 2.5°
VPOL Beamwidth 2.5°
Maximum VSWR 2:1
Wind Loading 1538 N @ 200 km/h
(346 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization
Default
After Rotating OMT
H/V
± 45°
Cross-Pol Isolation 35 dB
Mounting Pole Mount
Pattern Regulatory ETSI 302 217-4-2, Class 3
and FCC Cat B
