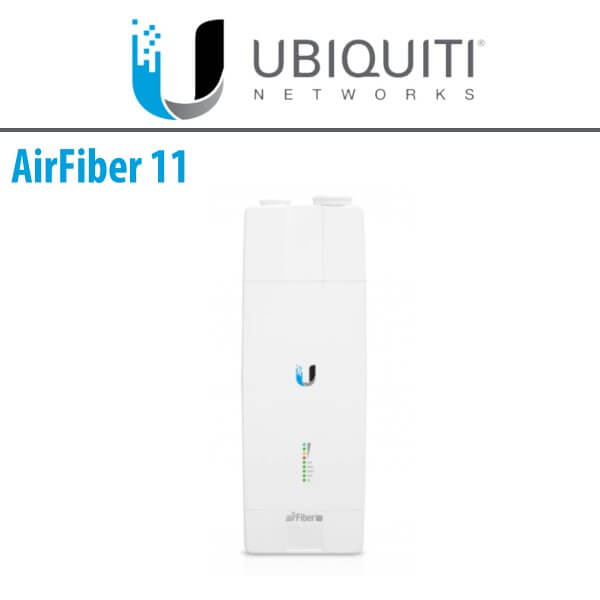

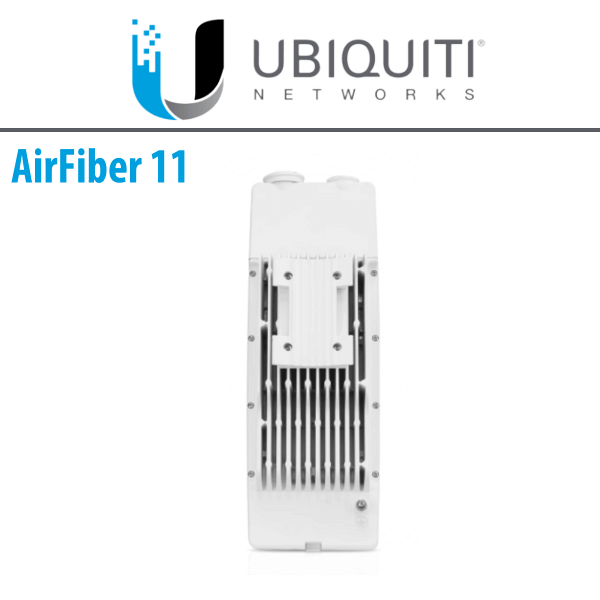

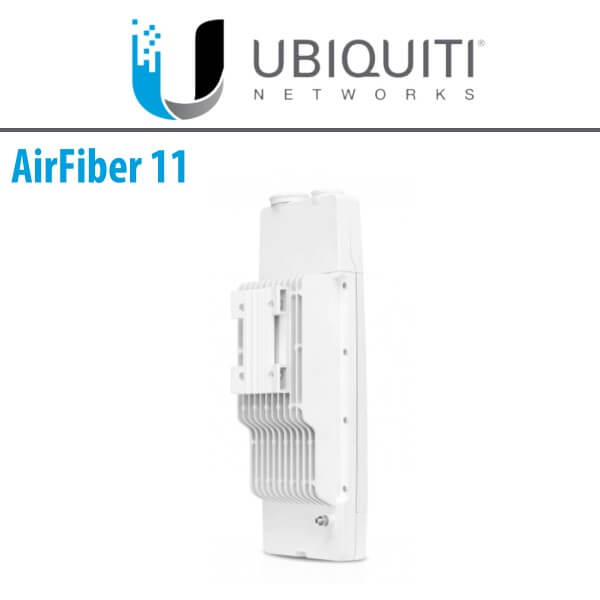

Ubiquiti AF11 Dubai
The Ubiquiti AF11 Dubai stands as the pioneering modular airFiber radio system designed explicitly for the 11 GHz licensed frequency spectrum, liberating itself from the crowded 5 GHz band. Housed within a compact and exceptionally efficient form factor, the airFiber 11 boasts remarkable wireless Gigabit+ performance, minimal latency, and extensive reach, rendering it an ideal choice for a diverse range of applications, including carrier backhaul, inter-building enterprise connectivity, and public safety requirements.
Ubiquiti AF11 Dubai serves as an outdoor radio system meticulously tailored for outdoor Point-to-Point bridging and the deployment of carrier-grade network backhaul solutions within the licensed 11 GHz radio band. By transcending the limitations of the congested 5 GHz band, the AF-11 effectively addresses the ever-growing demand for broadband capacity.
Features
- True Full-Duplex Design :Offers a true FDD solution that fully satisfies all licensing requirements for the 11GHz band.
- Ultra-Low Latency :Overall customer experience and system capacity is enhanced with FDD performance.
- Enhanced Robustness :Ubiquiti AF11 Dubai features a unique, built-in, rain-fade mitigation strategy for increased link robustness.
- Extended Range :The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.
- Optimized Channels :Can use SISO or bonded MIMO channels depending on your licensing requirements.
- Reconfigurable Duplexers :Each radio can be configured to support any allowable frequency by simply changing the duplexers for high-band or low-band use.
- Highest Performance Value :Ubiquiti AF11 Dubai supports high-order constellations – up to 1024QAM – allowing it to deliver the greatest spectral efficiency in its class.
- Advanced Engineering :Custom silicon and radio architecture are designed for long-distance, outdoor wireless applications providing superior performance.
- Power Source Options :Ubiquiti AF11 Dubai has built-in support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.
- Versatile Ruggedized N-Type Connectors :Specially designed silicon boots provide a weatherproof barrier against dust and moisture.
Technical Specs
| Dimensions | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39″) |
| Weight | 2.26 kg (5.0 lb) |
| RF Connectors | (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Power Supply | 50V, 1.2A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet, DC Power Block) |
| Power Supply | UniFi PoE Switch |
| Supported Voltage Range | 38-56VDC |
| Certifications | FCC Part 101, ETSI EN 302 217 |
| Mounting | AF-11G35 Mount Compatible |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |

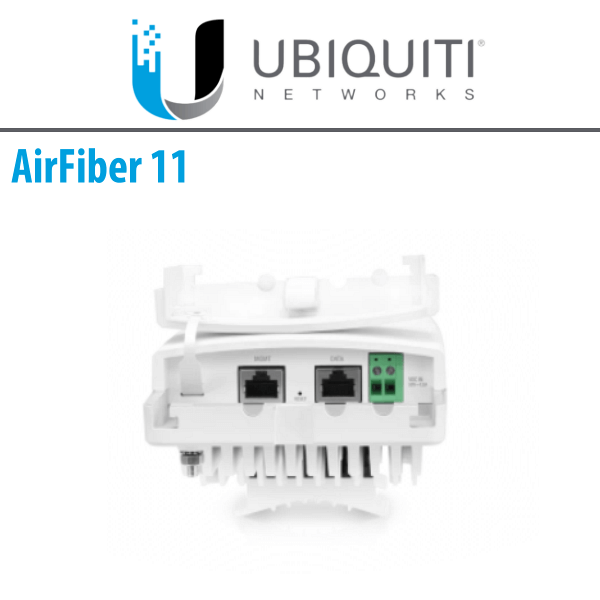

| Networking Interface Data Management |
(1) 10/100/1000 Ethernet Port
(1) 10/100 Ethernet Port |
| System | |
| Processor | INVICTUS 2 IC |
| Maximum Throughput | 1.2+ Gbps |
| Encryption | 128-bit AES |
| OS | airOS F |
| Wireless Modes | SISO/MIMO |
| Operating Frequency | 10.7-11.7 GHz (Depends on Regulatory Region*) |
| Max. Conducted TX Power | 30 dBm (Depends on Regulatory Region*) |
| Frequency Accuracy | ± 1 ppm |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable Programmable Uplink and Downlink Duty Cycles |
| AirFiber AF‑11G35 | |
| Dimensions | 811 x 811 x 460 mm (31.9 x 31.9 x 18.1″) |
| Weight Mount Not Included Mount Included | 7.14 kg (15.74 lb) 11.85 kg (26.12 lb) |
| Frequency | 10.3 to 11.7 GHz |
| Gain | 35 dBi |
| HPOL Beamwidth | 2.5° |
| VPOL Beamwidth | 2.5° |
| Maximum VSWR | 2:1 |
| Wind Loading | 1538 N @ 200 km/h (346 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization Default After Rotating OMT |
H/V ± 45° |
| Cross-Pol Isolation | 35 dB |
| Mounting | Pole Mount |
| Pattern Regulatory | ETSI 302 217-4-2, Class 3 and FCC Cat B |
