Description

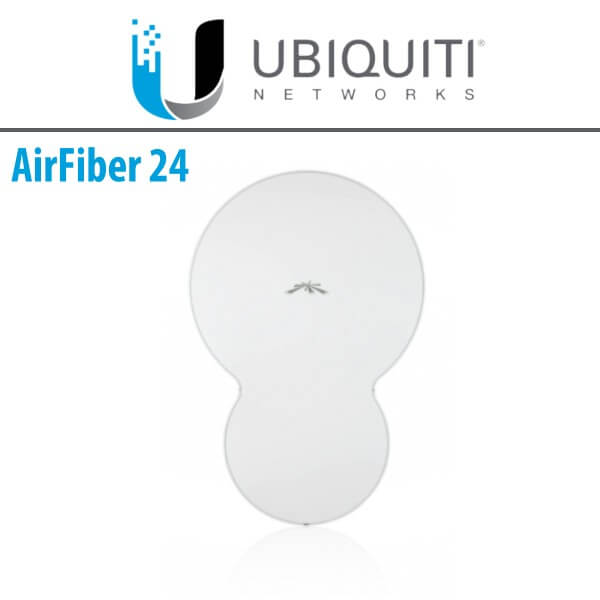

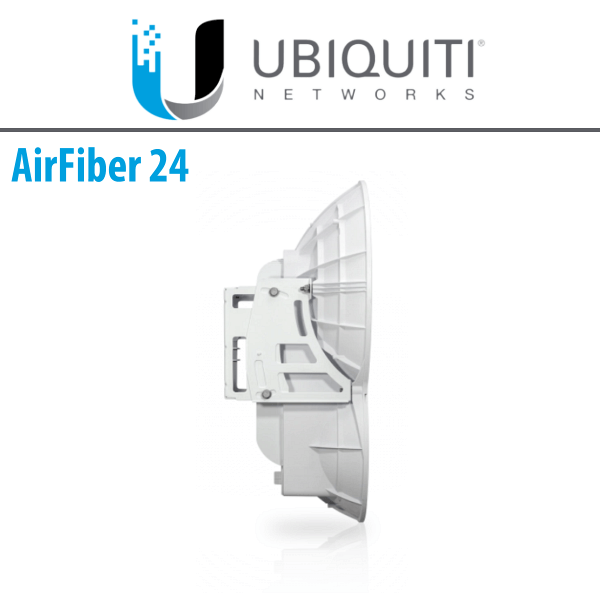

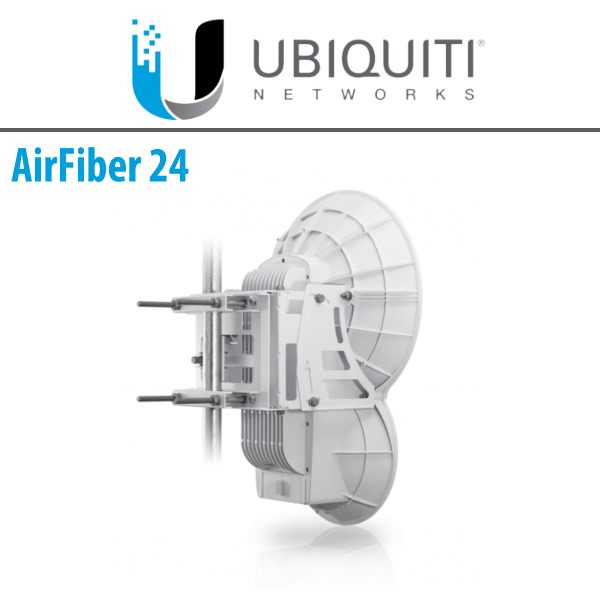

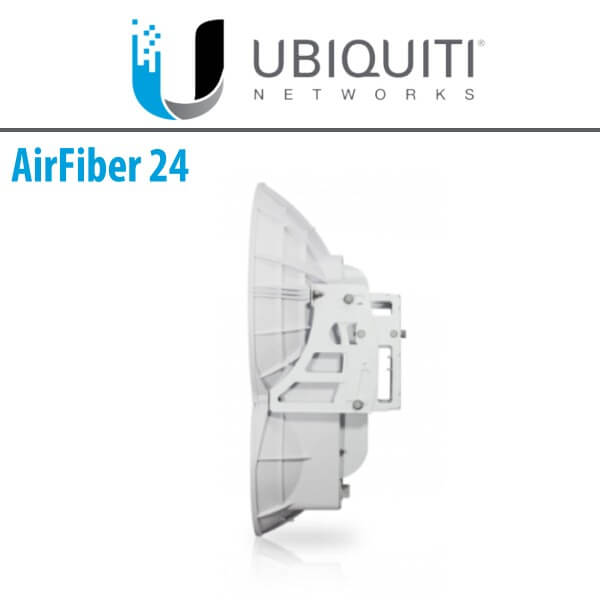

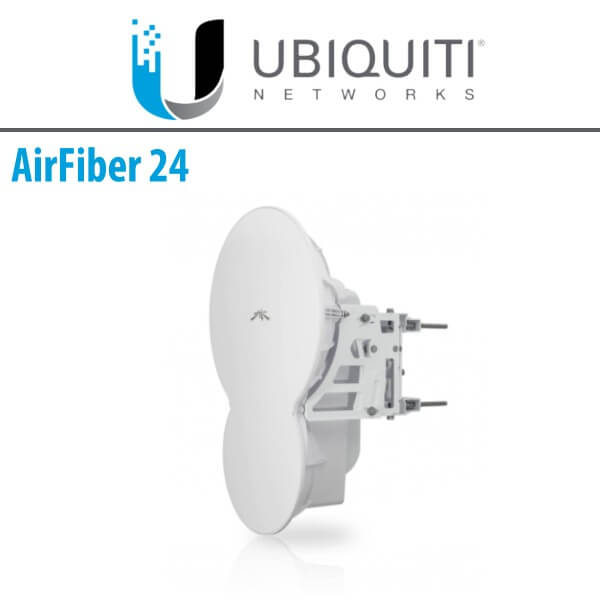

Ubiquiti AF24 Dubai

The Ubiquiti AF24 Dubai Carrier Class Point-to-Point Gigabit Radio, designed by Ubiquiti Networks, represents a cutting-edge wireless point-to-point communication solution. Its sleek and efficient design ensures it delivers top-notch wireless Gigabit+ performance, minimal latency, and extensive coverage. This device is well-suited for a variety of applications, including carrier backhaul, inter-building enterprise connectivity, and public safety needs. The Ubiquiti AF24 Dubai sets a new standard for 24 GHz backhaul performance, offering exceptional speed and spectral efficiency within the 24 GHz radio band for use in the USA and other domestic markets.

Encased in a compact and highly efficient form factor, the Ubiquiti AF24 Dubai achieves groundbreaking performance with an aggregate throughput of 1.4+ Gbps and a remarkable range of 13+ km. This technology marks a significant advancement in cost-effective, carrier-grade backhaul solutions. It operates on the 24 GHz frequency band. Please note that this listing is for a single unit; typically, Ubiquiti AF24 Dubai is purchased in pairs to create a single link.

Features

• Design
  • From the silicon chip up to the split-antenna architecture, Ubiquiti AF24 Dubai delivers optimal throughput with efficiency. The airFiber is built to create a high performance backhaul.
• Plug and Play Deployment
  • Based on intuitive airOS, the Ubiquiti AF24 Dubai configuration interface enables quick deployment. With installation efficiency in mind, the mechanical design allows easy installation by one person. A 2-person installation crew can effectively install and align an airFiber link. To fine-tune the alignment, the received signal levels can be conveniently accessed via airFiber LED display, airFiber Configuration Interface, or Audio tone feature.
• 24 GHz Operation
  • The Ubiquiti AF24 Dubai operates in 24 GHz frequencies for use in the United States of America. Other versions are available for use in worldwide, license-free or 5 GHz frequencies.
• Built for Speed and Range
  • The Ubiquiti AF24 Dubai delivers Gigabit performance at 1.4+ Gb/s. To put this in perspective, airFiber can transmit a 100MB file in less than a second. With speed and throughput surpassing conventional wired backhauls, airFiber prevails over expensive and labor-intensive wired infrastructures. The Ubiquiti AF24 Dubai is built for long-range use, up to 13+ km for airFiber AF24, which launches the extreme Range Technology (xRT) feature.
• Proprietary Modem Technology
  • The Proprietary Modem technology was built to address the specific challenges of outdoor, point-to-point bridging and high-performance network backhauls. Every aspect of the radio has been simulated and designed to optimize range, speed, and latency performance in the harsh RF noise environments.
• Synchronous Data Transmission and Reception
  • Conventional wireless standards impose latency by having to receive a packet before a packet is transmitted. The Ubiquiti AF24 Dubai can transmit data synchronously without any wait time. It features traditional TDD and FDD modes of operation in addition to the proprietary Hybrid Division Duplexing (HDD) mode, which provides a breakthrough in range and spectral efficiency performance. Based on the ranging algorithm built into the air protocol, the airFiber radios use patent-pending HDD technology to calculate the propagation delay and know when each radio can transmit and receive, so they send packets in precise synchronization. Packet transmission latency is virtually eliminated.
• Dual-Antenna Architecture
  • The Ubiquiti AF24 Dubai features a dual-independent, 2 x 2 MIMO, high-gain reflector antenna system. Separate transmit (TX) and receive (RX) antennas help extend link budgets by eliminating the extra RF losses caused by the switches or duplexers required in systems with common TX/RX antennas. The airFiber radio has two complete antenna systems and a mechanical back-plane that are constructed as a one-piece monocoque, molding a radical departure from industry practice. Monocoque means that the exterior skin supports the structural load of airFiber hardware. Due to its single-piece, injection-molded architecture, Ubiquiti AF24 Dubai adds lightness in weight and affordability to its list of advantages.
• 24 GHz Performance
  • Systems for millimeter-wave frequencies typically experience Radio Frequency (RF) losses, which occur when a part of the RF is lost in the switches and filters. Ubiquiti eliminates such RF losses with separate TX and RX antennas, so the link budget is robust and Ubiquiti AF24 Dubai has better noise figure and higher transmit power efficiency.
