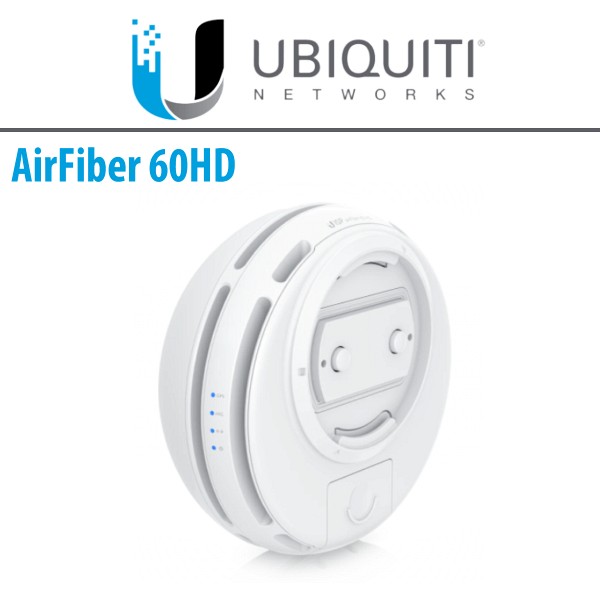

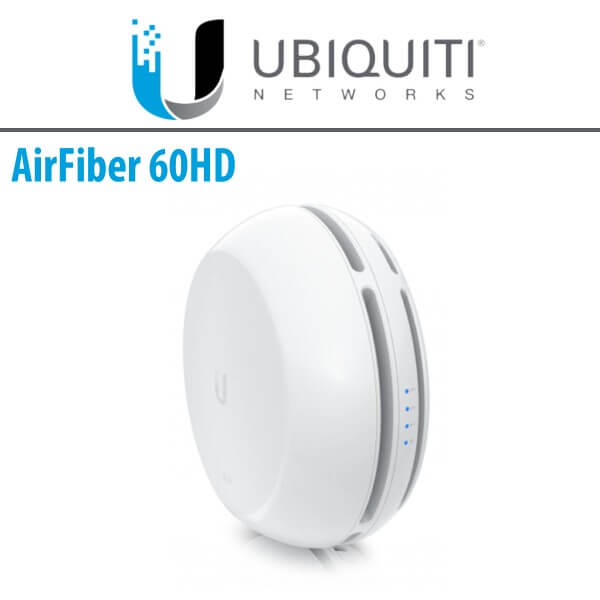

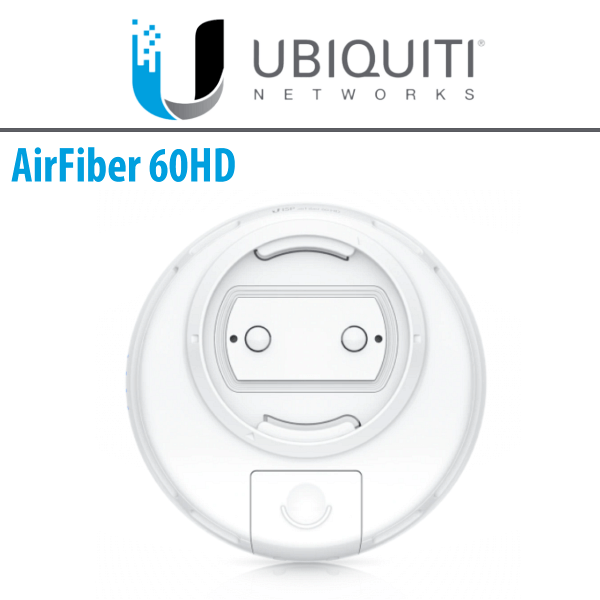

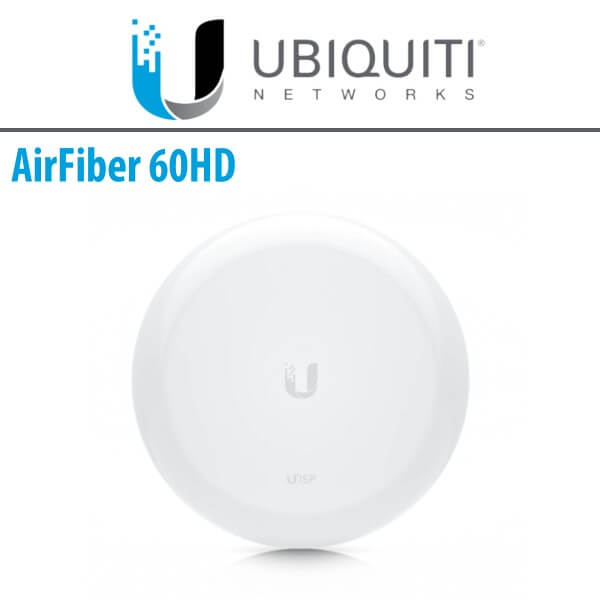

Ubiquiti AF60HD Dubai

The Ubiquiti AF60HD Dubai is a specialized 60 GHz radio system engineered to establish high-quality mid-range point-to-point (PtP) connections, covering distances of up to 2 kilometers. With its low-interference and low-latency throughput capabilities operating within the 60 GHz spectrum, the AF60 HD ensures optimal performance. Furthermore, this compact and robust solution comes equipped with integrated GPS and a Bluetooth management radio, streamlining the setup, configuration, and monitoring processes. It serves as the perfect bridge solution for Internet Service Providers (ISPs) seeking to optimize signal linking with cost-efficient equipment.

Key Features

60 GHz radio with 5 GHz radio backup
Low-interference 60 Ghz spectrum
Long range, up to 2 km
Up to 1 Gbps with low latency
Integrated GPS
Full and half bandwidth support

Technical Specifications

General

Dimensions : 413 x 413 x 320 mm (16.26 x 16.26 x 12.60″)
Weight :
- Without Mount : 4 kg (3.09 lb)
- With Mount : 8 kg (3.97 lb)
Enclosure : Aluminum, UV-stabilised Polycarbonate
Antenna Gain :
- 5 GHz : 11 dBi
- 60 GHz : 38 dBi
Networking Interface : (1) 10/100/1000 Mbps Ethernet Port
Power Consumption : 11W
Power Method : Passive PoE, Pins 4, 5+ and 7, 8-
Power Supply : 24VDC, 0.5A Gigabit PoE Adapter (Included)
Voltage Range : +22 to +26VDC
LEDs : Power/Ethernet/5G/60G/GPS
Mounting : Pole Mount (Included)
Wind Loading : 420 N @ 200 km/h (94.4 lbf @ 125 mph)
Wind Survivability : 200 km/h (125 mph)
ESD/EMP Protection : ± 24kV Contact/Air
Operating Temperature : -40 to 60° C (-40 to 140° F)
Operating Humidity : 5 to 95% Noncondensing
Certifications : FCC, IC, CE

System

Maximum Throughput : 8 Gbps
Maximum Range : 2+ km
Encryption : WPA2-PSK (AES)/WPA2 Enterprise
OS : airOS GP

Radio

Conducted TX Power :
- 5/60 GHz Combined : 25 dBm
Channel Bandwidth :
- 60 GHz : 2160 MHz
- 5 GHz : 20/40/80 MHz

Operating Frequency (MHz)

US/CA :
- U-NII-1 : 5150 – 5250
- U-NII-3 : 5725 – 5850
