Description

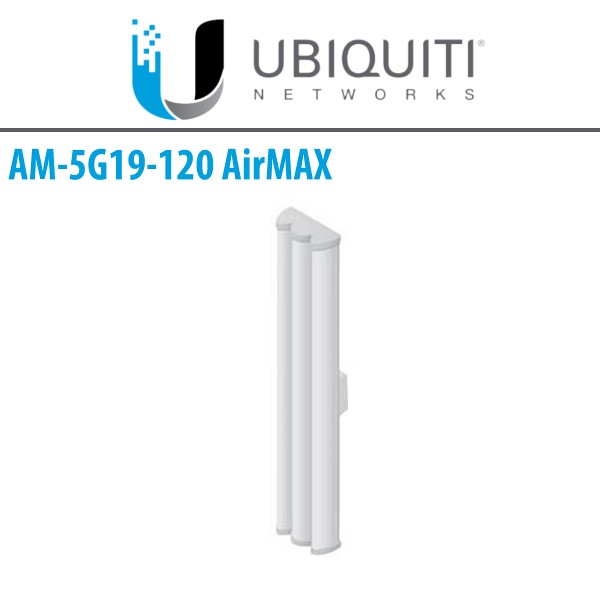

Ubiquiti AM-5G19-120 Dubai
The Ubiquiti AM-5G19-120 Dubai offers you the freedom to craft your personalized base station, complete with an optional RocketM radio for enhanced networking flexibility and convenience. Operating within the 5 GHz frequency range, this antenna boasts an impressive 19 dBi gain. It excels in 2×2 MIMO performance and seamlessly integrates AirMAX technology, employing Time Division Multiple Access protocols to efficiently transmit and receive data during designated time intervals. The package includes essential accessories such as a pole mount, RocketM bracket, and weatherproof RF jumpers, ensuring a simplified and hassle-free experience when constructing your base station.
Features
- Flexibility – To support your specific application, the AirMAX Sector Antenna is available in 5 GHz
- High Performance – Highly resistant to noise interference, the AirMAX Sector Antenna provides superior gain and beam performance for high-capacity, multipoint networks.
- Durable Construction – Each AirMAX Sector Antenna is designed with a robust mechanical design for outdoor application use.

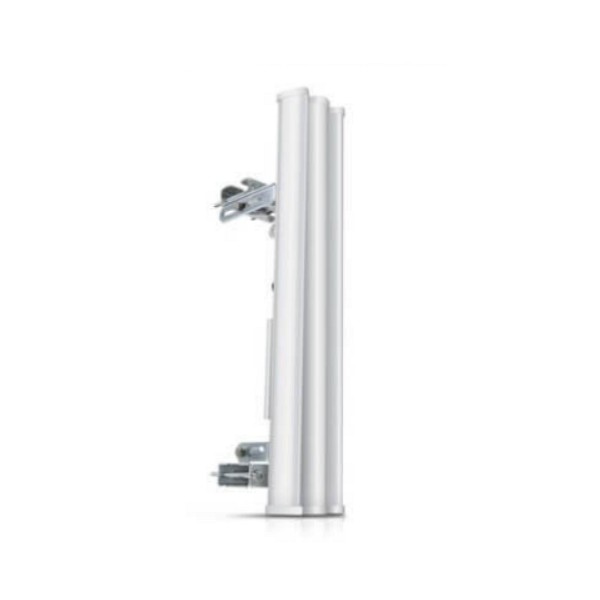

- Plug and Play Integration – Every AirMAX Sector Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and AirMAX Sector Antenna for your application.
- Pair the Rocket radio with the AirMAX Sector Antenna to create a powerful base station. This versatile combination gives network architects unparalleled flexibility and convenience
Specifications
| Frequency Range | 5.15 to 5.85 GHz |
| Gain | 18.6 to 19.1 dBi |
| Hpol Beamwidth | 123° (6 dB) |
| Vpol Beamwidth | 123° (6 dB) |
| Beamwidth | Electrical : 4° |
| Electrical Downtilt | 2° |
| VSWR (Voltage Standing Wave Ratio) | 1.5 : 1 |
| Wind Survivability | 125 mph |
| Wind Loading | 20 lbf @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 27.55 x 5.31 x 2.87″ (700 x 135 x 73 mm) |
| Weight | 13 lb (5.9 kg) |
| Packaging Info | |
| Package Weight | 9.7 lb |
| Box Dimensions (LxWxH) | 35.3 x 7.9 x 6.4″ |
