Description

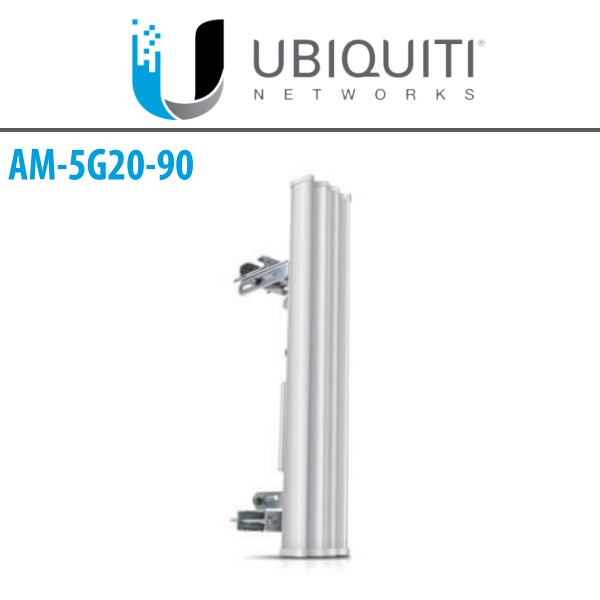

Ubiquiti AM-5G20-90 Dubai
The Ubiquiti AM-5G20-90 Dubai offers a flexible and convenient networking solution, allowing you to craft a customized base station when paired with an optional RocketM radio. Operating within the 5 GHz frequency range, this antenna boasts a 20 dBi gain and delivers impressive 2×2 MIMO performance. It also supports airMAX technology, which utilizes Time Division Multiple Access protocols for efficient data transmission in pre-designated time slots. The package includes essential accessories such as a pole mount, RocketM bracket, and weatherproof RF jumpers, simplifying the base station setup process.
This next-generation technology, protected by patents, achieves exceptional gain, cross-polarization isolation, and precise beam-shaping characteristics that rival the finest cellular carrier base station antennas worldwide. It effortlessly pairs with the Rocket M5 to create a robust AirMax 2×2 MIMO PtMP Base Station, and it comes complete with a Rocket mount and weatherproof RF jumpers for added convenience.
Ubiquiti AM-5G20-90 Dubai Features:
- Seamlessly integrates with RocketM radios
- Remarkable cross-polarization isolation
- Intelligent QoS: Priority is given to voice/video for seamless streaming
- Scalability: High capacity and scalability
- Long Distance: Capable of high-speed, carrier-class links
- Up to 100 airMAX clients can be connected to an airMAX sector antenna
Ubiquiti AM-5G20-90 Specs
| Frequency Range | 5.15 to 5.85 GHz |
| Gain | 19.4 to 20.3 dBi |
| Hpol Beamwidth | 91° (6 dB) |
| Vpol Beamwidth | 85° (6 dB) |
| Beamwidth | Electrical: 4° |
| Electrical Downtilt | 2° |
| VSWR (Voltage Standing Wave Ratio) | 1.5:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 26 lbf @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 27.55 x 5.31 x 2.75″ (700 x 135 x 70 mm) |
| Weight | 13 lb (5.9 kg) |
Packaging Info
| Package Weight | 9.9 lb |
| Box Dimensions (LxWxH) | 35.3 x 8 x 6.5″ |
