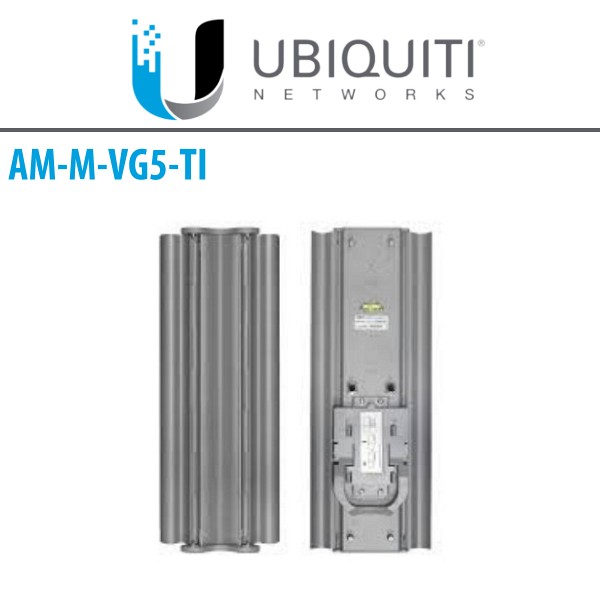

Ubiquiti AM-M-VG5-TI Dubai
The Ubiquiti AM-M-VG5-TI Dubai represents a cutting-edge sector antenna featuring advanced RF isolation and a flexible beamwidth setup. This top-tier 2×2 MIMO antenna delivers exceptional performance, particularly in co-location deployments, and supports both vertical and horizontal polarizations.

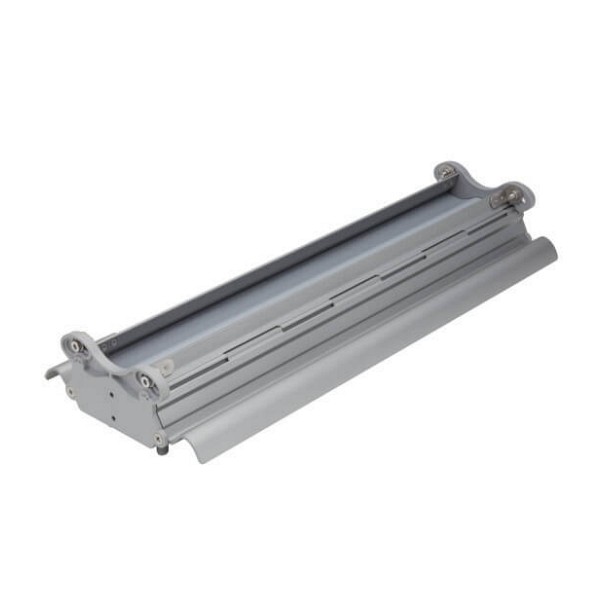

The Ubiquiti AM-M-VG5-TI stands out as a 5GHz Variable Beam Sector antenna with an adjustable beamwidth ranging from 60 to 120 degrees. Equipped with carrier-class 2×2 MIMO technology, this PtMP Base Station has been meticulously designed for peak performance when used in conjunction with a RocketM Titanium.
Key Features
- Carrier-Class 2×2 MIMO PtMP Base Station
- Adjustable Beamwidth Configuration
- Reduced Co-Location Interference
- Breakthrough Design and Performance
- The innovative Ubiquiti AM-M-VG5-TI Dubai Sector Antennas feature carrier-class construction and 2×2, dual-polarity performance.
- Reduced Interference, Higher Gain
- Highly resistant to noise interference, the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
- RF Isolation and Beamwidth Options
- The versatile airMAX® Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.
- Industrial-Strength Construction
- Ubiquiti AM-M-VG5-TI Dubai Antennas are designed with robust mechanical design for outdoor application use.
- Plug and Play Integration
- Every Ubiquiti AM-M-VG5-TI Dubai Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket Base Station.
- Compatibility
- The Ubiquiti AM-M-V5G-Ti Dubai is compatible with the Rocket M5.
Technical Specifications
General
- Dimensions 385 x 149 x 76 mm
- Weight 3.25 kg (with Brackets)
- Frequency Range 5.45 – 5.85 GHz
- Beamwidth Angles 60°/ 90°/ 120°
- Gain (Beamwidth Dependent)
- 17 dBi @ 60°
- 16 dBi @ 90°
- 15 dBi @ 120°
- Elevation Beamwidth 8°
- Electrical Downtilt 3°
- Wind Survivability 125 mph
- Wind Loading 15 lbf @ 100 mph
- Polarisation Dual Linear
- Cross-Pol Isolation 25 dB Typical
- F/B Ratio 35 dB Typical
- VSWR 1.7:1
RF Connectors 2 RP-SMA Connectors (Weatherproof) - Compatible Radios RocketM5 Titanium
- RocketM5
- RocketM5 GPS
- Mounting Pole Mount (Kit Included)
- ETSI Specification EN 302 326 DN2
- Certifications CE, FCC, IC
