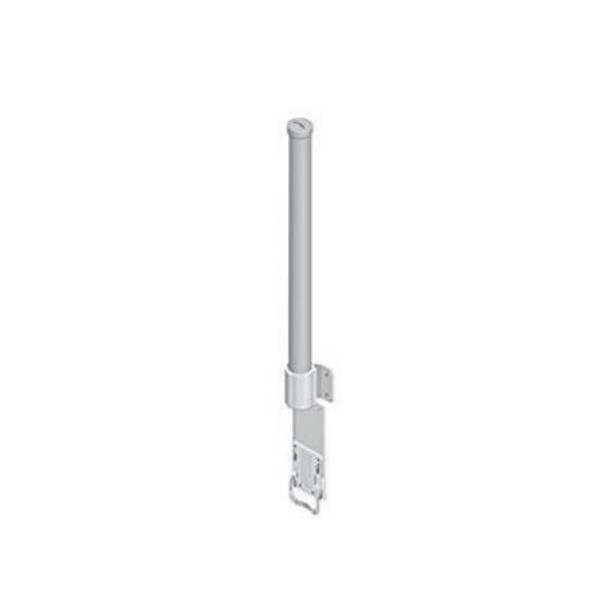

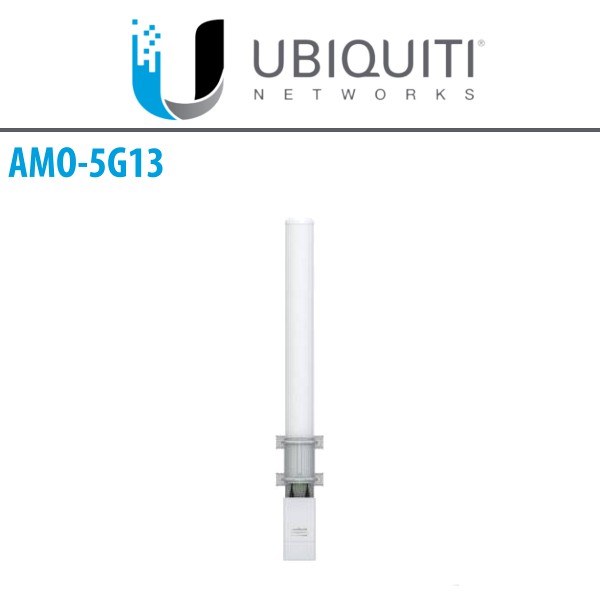

Ubiquiti AMO-5G13 Dubai
The Ubiquiti AMO-5G13 Dubai, a remarkable 5 GHz airMAX Omni antenna boasting a 13 dBi gain. This antenna delivers robust 360° coverage and excels in 2×2 MIMO performance, making it suitable for both Line of Sight (LoS) and Non-Line of Sight (NLoS) applications. The unique feature of every airMAX Omni antenna is the built-in Rocket mount, eliminating the need for any special tools during installation. Simply snap the Rocket securely into place and mount the antenna to achieve the ideal combination of Rocket radio and airMAX Omni Antenna tailored for your specific application.
Features
- Breakthrough 2×2, Dual-Polarity Design– AMO-5G13 Dubai antennas are the first of their kind to feature a patented, dual-polarity omni design.
- Powerful Omnidirectional Coverage – the Ubiquiti airMAX – AMO-5G13 Dubai provides 360° coverage, 2×2 MIMO performance in Line-of-Sight (LOS) or Non-Line-of-Sight (NLOS) applications.
- Industrial-Strength Construction – the AMO-5G13 Dubai is designed with robust mechanical design for outdoor application use.
- Plug and Play Integration – Every airMAX – AMO-5G13 Dubai has a built-in Rocket™mount, so no tools are needed to install the Rocket Base Station.
Specifications
| Dimensions* | 799 x 90 x 65 mm (31.46 x 3.54 x 2.56″) |
| Weight* | 0.82 kg (1.81 lb) |
| Frequency Range | 5.45 – 5.85 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max VSWR | 1.5:1 |
| Downtilt | 2° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N @ 200 km/h (19 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 |
