Description

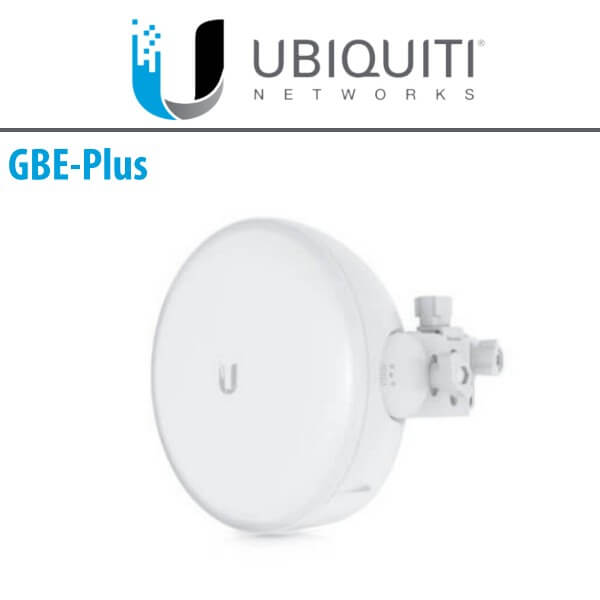

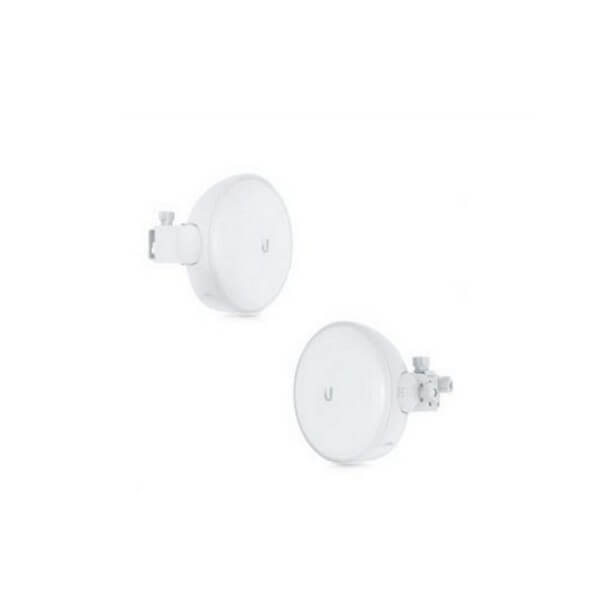

Ubiquiti GBE-Plus Dubai
The Ubiquiti GBE-Plus Dubai, also known as the Gigabeat Plus, is a compact 60GHz outdoor radio unit by Ubiquiti Networks, designed for Point-to-Point applications. It boasts a remarkable 1.5 Gbps Full Duplex throughput, extremely low latency, and supports a wide 2160 MHz channel width, enabling connections of up to 1.5 km. Equipped with one Gigabit LAN port, it facilitates communication and supports passive PoE (22 to 26 V DC). For swift setup, Bluetooth connectivity is available, allowing you to use the UISP mobile application.
Installing this device is a breeze, given its lightweight design at just 1 kg. The included holder provides fine-tuning options in both directions, a notable advantage in this price range. The Ubiquiti GBE-Plus Dubai includes a pole-mounting kit for flexible placement and can be powered either through the provided 24 VDC PoE adapter or by connecting it to a compatible network switch.
Constructed from UV-resistant polycarbonate and stainless steel, this radio is built to last. It can be securely mounted on a wall or pole using the supplied kit. With 24kV ESD/EMP protection, it can withstand temperatures ranging from -40 to 140°F and endure wind speeds of up to 125 mph. Effortlessly configure, monitor, and manage the airMAX GigaBeam Plus through the Ubiquiti UISP platform, accessible via Bluetooth or an online portal.
Features
- Frequency band : 60 GHz
- Antenna gain 35 dBi
- Supported bandwidth : 2160 MHz
- Supported frequencies : 58 320, 60 480, 62 640, 64 800 MHz (depending on country limits)
- AP and Station operating modes, for PtP connections only
- Low latency 5+ Gbps Full Duplex throughput
- Web-based setup or Bluetooth Quick Setup using the UISP app
Technical Specifications
Wireless features
- Channel bandwidth [MHz] : 2160
- Transmission speed – 60GHz [Mb/s] : 1500, Full Duplex
- Output power 60GHz [dBm] : 17
- Security : WPA2 AES
- Elevation beam width (-6dB) [°] : 3
- Azimuth beam width (-6dB) [°] : 3
- Antenna gain [dBi] : 35
Connectors and Interfaces
- LAN speed : (1) 10/100/1000Mbps
- Other features : Bluetooth
Power
- Power over Ethernet : 22 .. 26V DC
- Power type : PoE
- power consumption [W] : 11
Physical characteristics
- Radom : Yes
- Operating temperature [°C] : -40 up to 60
- Weight [g] : 1000
- Width [mm] : 155
- Height [mm] : 155
- Depth [mm] : 137
Software
Operating system : airOS
Package Contents
- Device with bracket
- Gigabit PoE adapter 24 V/0.5 A
- Power cord
- Metal cable tie
