Description

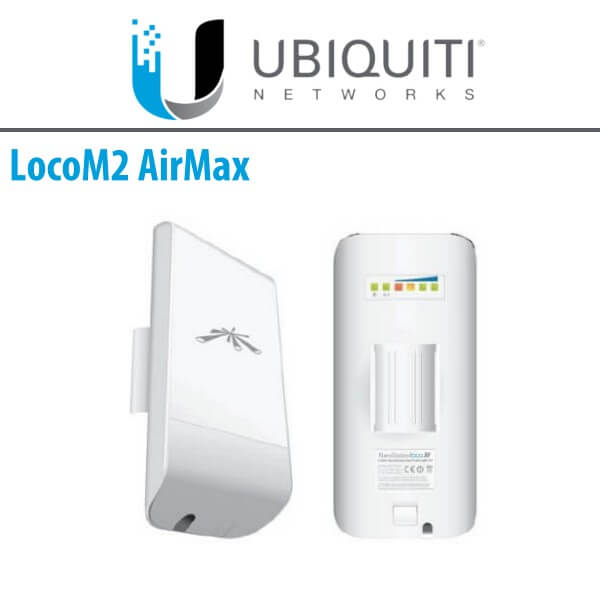

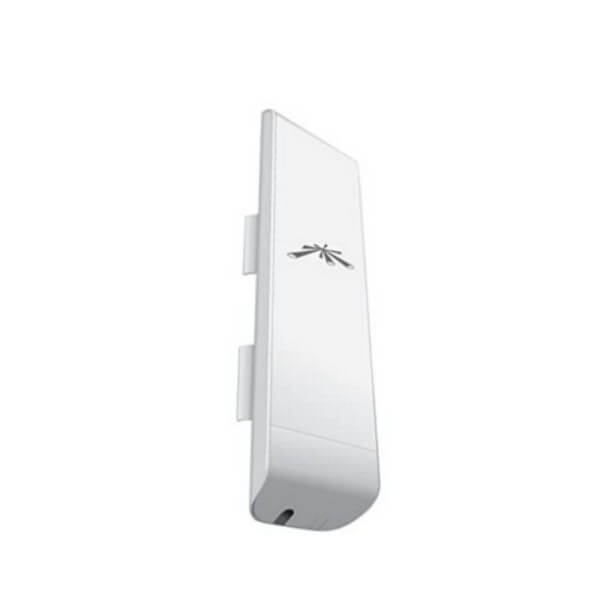

Ubiquiti LocoM2 Dubai
The Ubiquiti LocoM2 Dubai stands out as a cost-effective and incredibly dependable solution, consistently delivering exceptional performance. With an impressive transmission range of up to 10km, it offers throughput performance exceeding 25+ Mb/s. Additionally, it features the user-friendly AirOS by Ubiquiti and incorporates cutting-edge broadband wireless CPE technology, ensuring rapid and reliable performance.
Features
- Compact CPE Design
- Featuring a panel antenna and dual-polarity performance, the Ubiquiti LocoM2 Outdoor NanoStation Dubai is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
- Plug and Play Installation
- The Ubiquiti LocoM2 NanoStation requires no tools for assembly; only a single wrench is required for pole-mounting.
- Dual Ethernet Connectivity
- With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
- Versatile Application Use
- The Ubiquiti LocoM2 Outdoor NanoStation Dubai can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.
- Powerful airOS Features
- Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
- Advanced Software Technology
- Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
- Window/Wall-Mounting Kit
- Use the NanoStation Mount to quickly mount the Ubiquiti LocoM2 Outdoor NanoStation Dubai on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
- Wall/Pole Mounting Kit
- The Universal Arm Bracket is designed for convenient wall or pole mounting of the Ubiquiti LocoM2 NanoStation Dubai. 90° tilt adjustment allows for easy positioning.
Specifications
| Wireless | |
| Wireless Frequency Bands | 2.4 GHz |
| Sensitivity | -72 to -95 dBm |
| Antenna Gain | 8 dBi |
| Transmit Power | 15 to 20 dBm |
| Interface | |
| Ports | 1 x 10/100 Mb/s Ethernet (RJ45) |
| Throughput | 150 Mb/s Total |
| Hardware | |
| RAM | 16 MB |
| Storage Capacity | 4 MB |
| Processor | 180 MHz MIPS 4KC |
| Electrical | |
| DC Input Power | VDC at 0.5 A |
| Environmental | |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 5 to 95% |
| General | |
| Certifications | RoHS, as per Manufacturer |
| Dimensions | 6.4 x 3.1 x 1.2″ / 16.3 x 8 x 3.1 cm |
| Weight | 0.4 lb / 0.2 kg |
| Packaging Info | |
| Package Weight | 1.07 lb |
| Box Dimensions (LxWxH) | 8.55 x 3.8 x 3.2″ |
