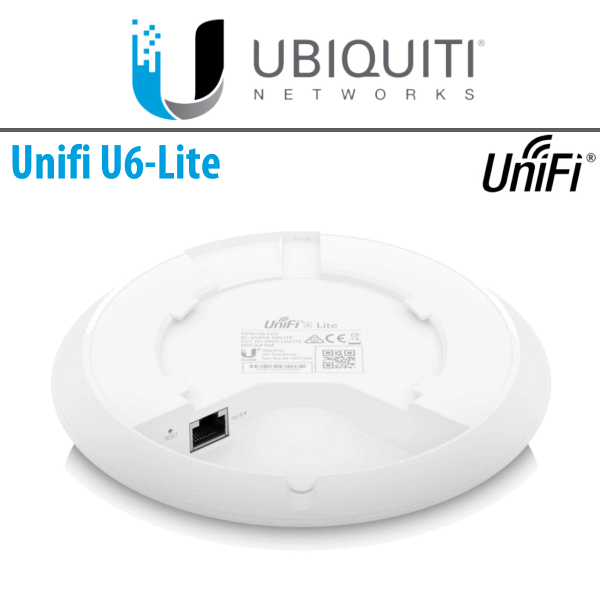

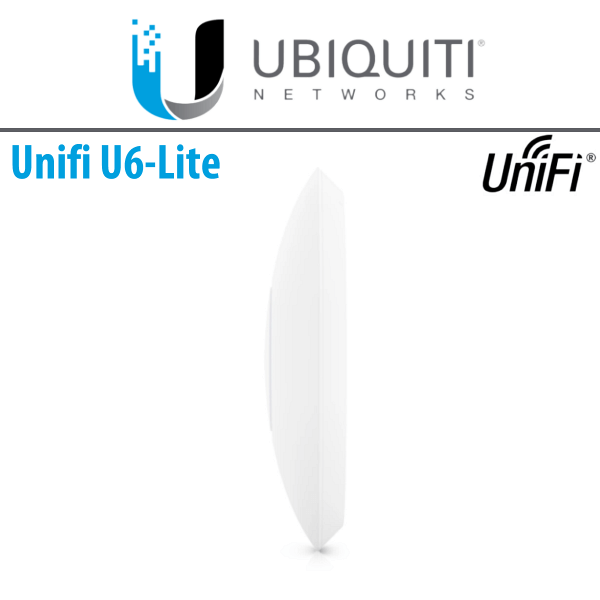

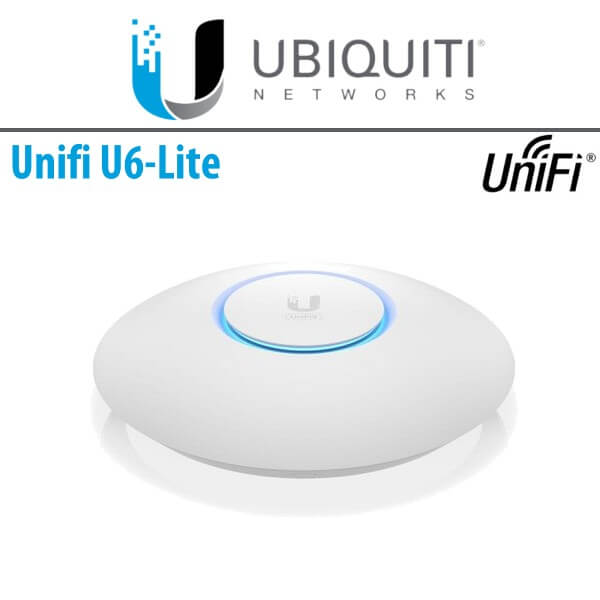

Ubiquiti U6Lite Dubai

Ubiquiti U6Lite Dubai

The Ubiquiti U6Lite Dubai is a compact Wi-Fi 6 access point boasting a 2×2 configuration. It provides an impressive combined radio rate of up to 1.5 Gbps, harnessing the power of both 5 GHz (with MU-MIMO and OFDMA support) and 2.4 GHz (with MIMO).

Category:

Description

Ubiquiti U6Lite Dubai

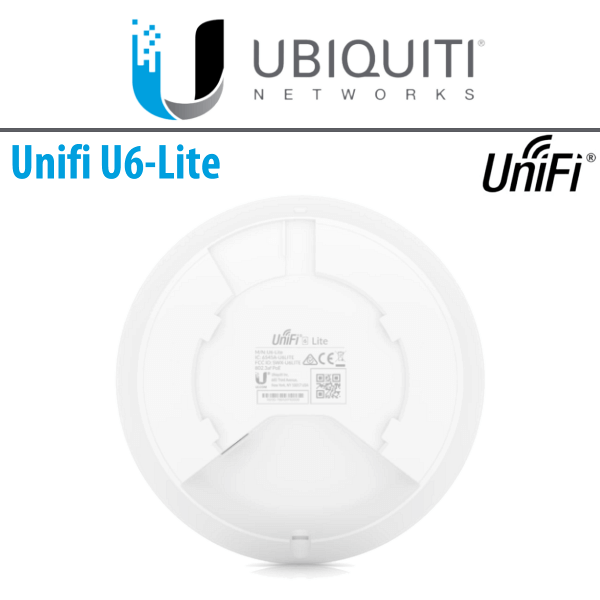

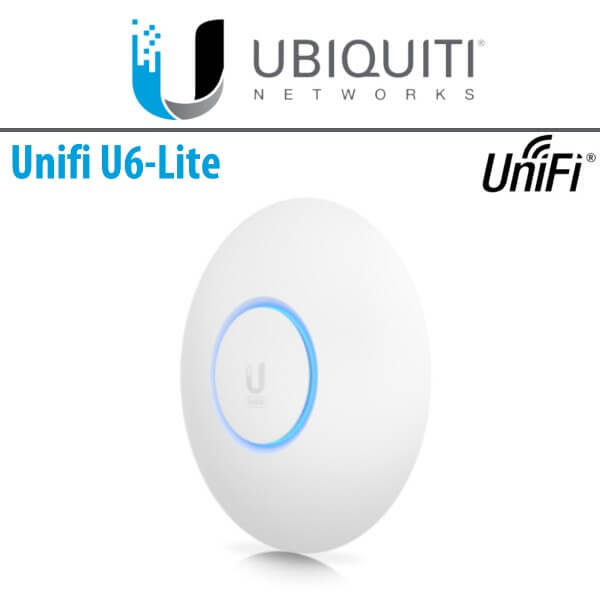

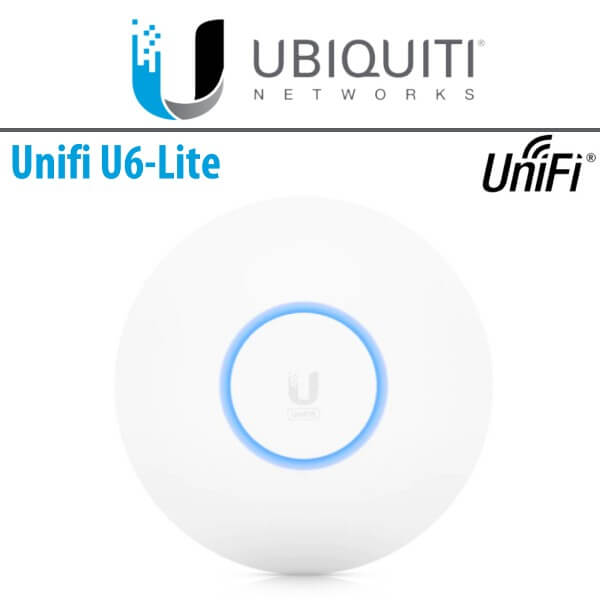

The Ubiquiti U6Lite Dubai is a compact Wi-Fi 6 access point boasting a 2×2 configuration. It provides an impressive combined radio rate of up to 1.5 Gbps, harnessing the power of both 5 GHz (with MU-MIMO and OFDMA support) and 2.4 GHz (with MIMO). This versatile device can be installed horizontally in a ceiling for high-density coverage in demanding environments, or vertically on a wall to extend its reach. Thanks to its petite and nano-sized design, the Ubiquiti U6Lite Dubai is compatible with nanoHD covers and various mounting accessories, offering flexibility in deployment options.

Ubiquiti UniFi U6 Lite Access Point Features:

    • 2×2 high-efficiency Wi-Fi 6
    • 5 GHz band 2×2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps
    • 4 GHz band 2×2 MIMO with radio rate of 300 Mbps
    • Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)
    • Compatible with UAP-nanoHD covers and recessed mounting bracket
  • Less interference with OFDMA
    • With OFDMA, Wi-Fi 6 access points not only deliver higher-volume data packets, but tactically parse and deliver data to multiple devices simultaneously, drastically improving their upload and download speeds.
  • Two-stream, high-efficiency Wi-Fi 6 technology
    • Wi-Fi 6 APs deliver an aggregate radio rate of up to 1.5 Gbps with 5 GHz (2×2 MU-MIMO and OFDMA) and 2.4 GHz 2×2 MIMO radios.
  • Powerful, wider wireless coverage
    • The Ubiquiti UniFi -U6 Lite Dubai access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
  • Simultaneously connect to more devices
    • Create and support over 300 distinct client connections.
  • Easily set up and grow your network
    • The Ubiquiti UniFi -U6 Lite Dubai seamlessly integrates with the UniFi Network Application and simplifies network bridging.

U6-Lite – Technical Specifications

Mechanical

  • Dimensions: Ø160 x 32.65 mm (Ø6.3 x 1.3″)
  • Weight:
    –Without Mount: 300 g (10.6 oz)
    – With Mount: 315 g (11.1 oz)
  • Enclosure Characteristics: Polycarbonate 110 and ADC12 Die Casting
  • Mounting Characteristics: Polycarbonate, SGCC Steel

Hardware

  • Processor Specs: 880 MHz MIPS 1004 KEc
  • Memory Information: 256 MB
  • Management Interface: Ethernet In-Band
  • Networking Interface: (1) 10/100/1000 Mbps Ethernet RJ45
  • Buttons: Factory Reset
  • LEDs: White/Blue
  • Power Method: 802.3af PoE, Passive PoE (48V)
  • Power Supply: 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
  • Supported Voltage Range: 44 to 57VDC
  • Power Consumption: 12W
  • TX Power
    – 2.4GHz: 23 dBm
    – 5GHz: 23 dBm
  • MIMO:
    – 2.4GHz: 2 x 2-
    5GHz: 2 x 2
  • Throughput Speeds
    -2.4GHz: 300 Mbps
    – 5GHz: 1201 Mbps
  • Antenna Gain
    – 2.4GHz: 2.8 dBi
    – 5GHz: 3 dBi
  • Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Operating Humidity: 5 – 95% Noncondensing
  • Certifications: CE, FCC, IC

Software

  • WiFi Standards
    – 802.11a/b/g
    – WiFi 4/Wi-Fi 5/Wi-Fi 6
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
  • BSSID 8 per Radio
  • VLAN: 802.1Q
  • Advanced: QoS Per-User Rate Limiting
  • Guest Trafc Isolation: Supported
  • Concurrent Clients: 300+

Supported Data Rates (MBPS)

  • 11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 11n (Wi-Fi 4): 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
  • 11b: 1, 2, 5.5, 11 Mbps
  • 11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 11ac: (Wi-Fi 5): 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
  • 11ax: (Wi-Fi 6) 6.3 Mbps to 1.2 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80)
