Ubiquiti UAP-BeaconHD Dubai

Ubiquiti UAP-BeaconHD Dubai

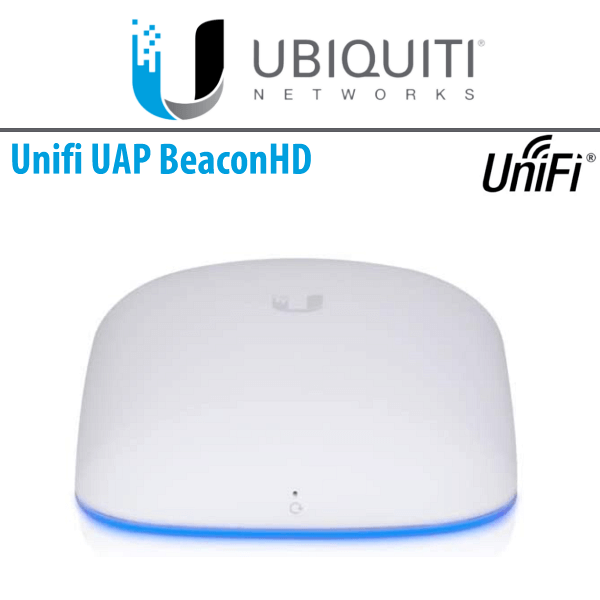

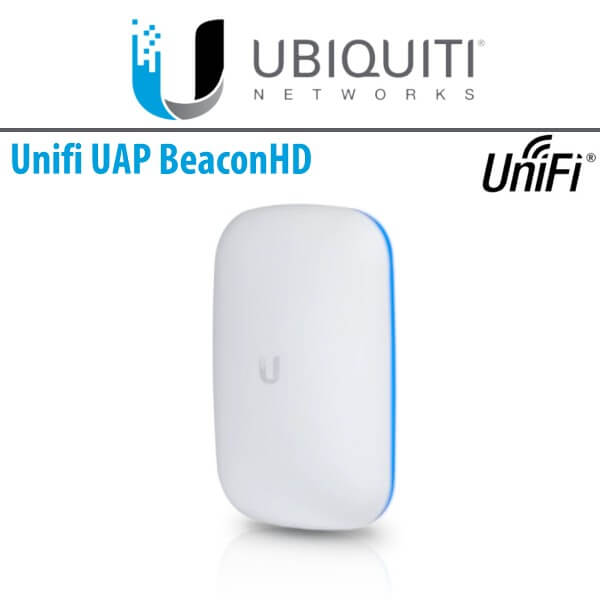

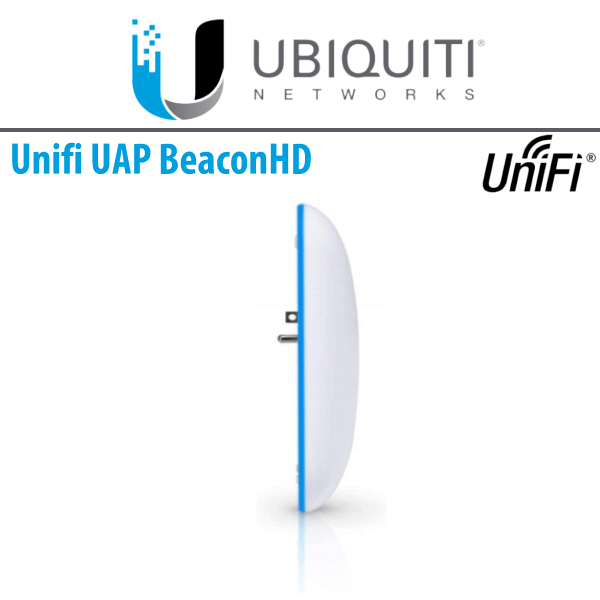

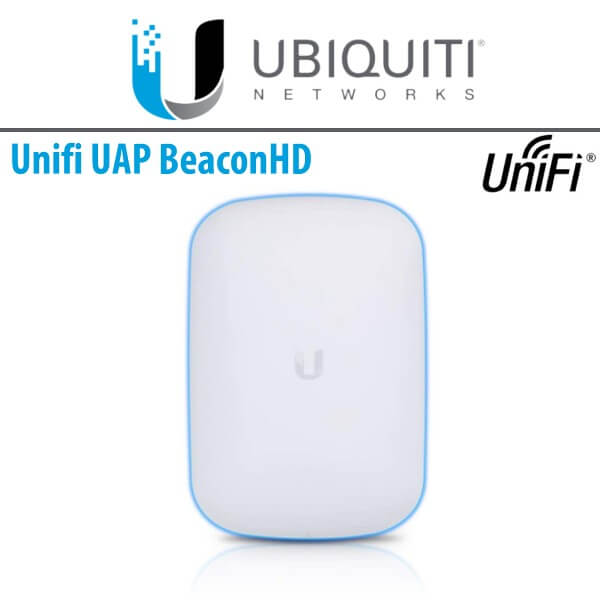

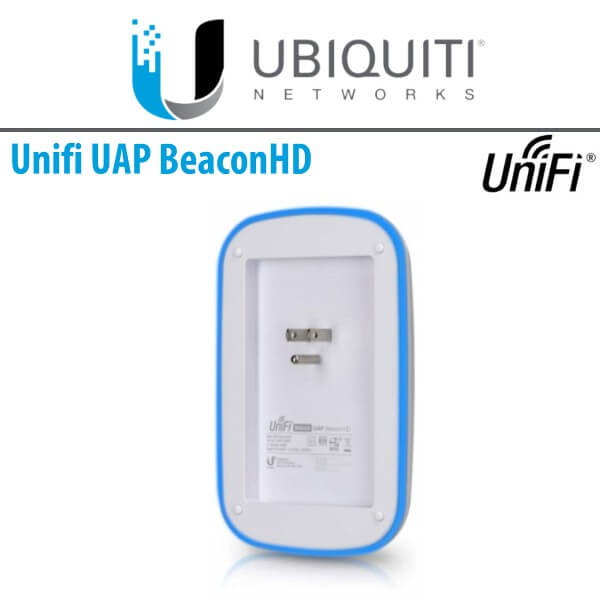

The Ubiquiti UAP-BeaconHD Dubai Access Point is an 802.11ac Wi-Fi access point employing Wave 2 technology and a bidirectional uplink design. It’s designed to seamlessly connect with and amplify the signals of neighboring UniFi access points.

Category:

Description

Ubiquiti UAP-BeaconHD Dubai

The Ubiquiti UAP-BeaconHD Dubai Access Point is an 802.11ac Wi-Fi access point employing Wave 2 technology and a bidirectional uplink design. It’s designed to seamlessly connect with and amplify the signals of neighboring UniFi access points, effectively extending and enhancing wireless coverage in both home and office environments.

This compact device conveniently plugs into any AC wall outlet and delivers an impressive 1.733 Gbps throughput rate on its 5 GHz (4×4 MU-MIMO) band. Additionally, it boosts the radio rates of nearby WiFi devices. Setting up the Ubiquiti UAP-BeaconHD Dubai is a breeze and can be effortlessly managed using the UniFi Network web application or mobile app.

Features

  • 11ac Wave 2 WiFi technology
  • Establishes bidirectional uplinks to nearby UniFi access points
  • 5 GHz (802.11ac, 4×4 MU-MIMO) band with a 1.733 Gbps throughput rate
  • Improves the radio rate of nearby WiFi devices
  • Get Rid of Dead Spots
    • Installing one or more Ubiquiti UAP-BeaconHD Dubai range extender helps to overcome Wi-Fi signal loss in the far corners of homes and offices.
  • 11ac Wave 2 MU-MIMO
    • With 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology, Ubiquiti UAP-BeaconHD Dubai can communicate with multiple devices simultaneously. Wave 2 access points are designed to perform 75% better than Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) devices.
  • 4 x 4 Performance
    • Four internal antennas power the 4 x 4 MIMO streams to deliver high data throughput for video streaming, playing games, and transferring files locally.
  • UniFi Network Controller
    • Accessible via mobile app or web browser, the UniFi Network Controller on the Ubiquiti UAP-BeaconHD Dubai allows you to organize and manage your network. Use it to get a detailed overview of your networked devices, optimize their performance, and to configure settings such as guest logins.
  • Compatibility
    • The Ubiquiti UAP-BeaconHD Dubai requires a UniFi Access Point or Dream Machine network device to mesh to.

Technical Specs

Mechanical
Dimensions 169.7 x 112.15 x 32.2 mm (6.68 x 4.42 x 1.27″)
Weight 260 g (9.17 oz)
Networking Interfaces Wi-Fi
Buttons Reset
LED System Status
Processor 880 MHz MIPS 1004KEc
System Memory 128 MB SDRAM
Maximum Power Consumption 11.5W
Supported Voltage Range 100 – 240VAC, 0.3A Max., 50/60 Hz
Power Method AC
Power Supply AC
Power Save Supported
Beamforming Supported
Operating Frequency 2.4 GHz

5 GHz

TX Power (EIRP) 2.4 GHz : 24.8 dBm

5 GHZ : 30 dBm

Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID Up to 8 per Radio
Operating Temperature -10 to 60° C (14 to 140° F)
Operating Humidity 5 to 95% Non-condensing
Certifications CE, FCC, IC
Antenna Gain of 4 Single-Polarity Antennas
(2) Dual-Band 2.4 GHz — 4.5 dBi

5 GHz — 5 dBi

(2) Single-Band 5 GHz — 5 dBi
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac Wave 2 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)

58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)

802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
