Description

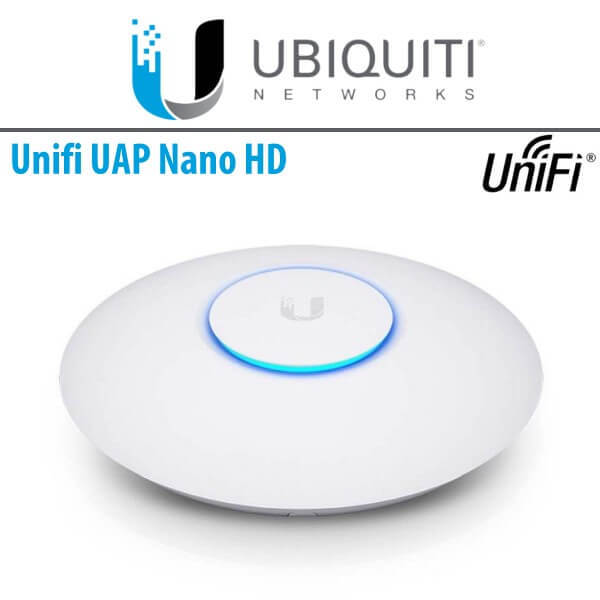

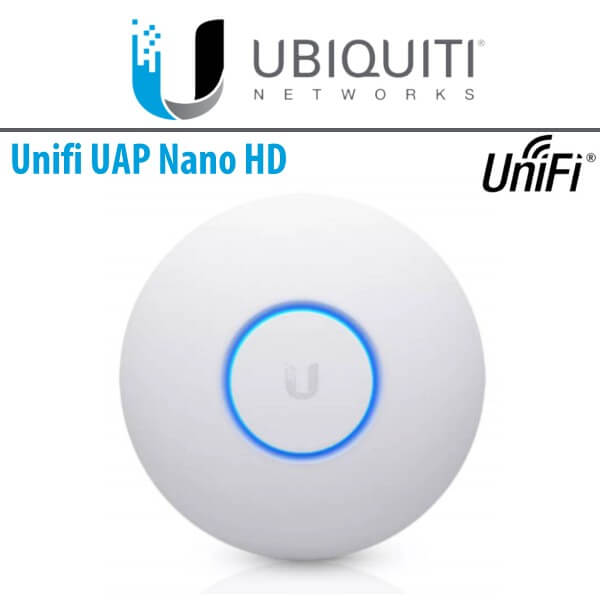

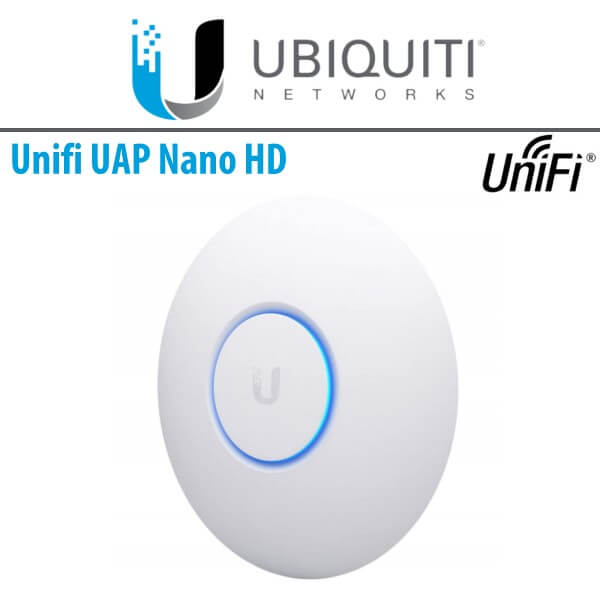

Ubiquiti UAP-NanoHD Dubai
The Ubiquiti UAP-NanoHD Dubai is a small yet powerful dual-band access point capable of achieving an impressive aggregate throughput rate of 2+ Gbps, thanks to its 5 GHz (4×4 MU-MIMO) and 2.4 GHz (2×2 MIMO) bands. Remarkably, the Ubiquiti UAP-NanoHD Dubai Access Point can handle more than 200 concurrent client connections while ensuring a consistently reliable wireless experience throughout your network.
Featuring an elegant, nano-sized design, this Ubiquiti UAP NanoHD Dubai Wi-Fi access point can be discreetly placed indoors to enhance your wireless speed and performance wherever needed. Designed for easy setup, the Ubiquiti UAP-NanoHD Dubai can be up and running within minutes and can be fully managed using the UniFi Network web application or mobile app.
Features
- Four-stream, 802.11ac Wave 2 WiFi technology
- 5 GHz (4×4 MU-MIMO) band with a 1.733 Gbps throughput rate
- 4 GHz (2×2 MIMO) band with a 300 Mbps throughput rate
- 200+ concurrent client capacity
- Powered by 802.3af PoE (PoE injector included with single pack)
Technical Specs
| Mechanical | |
| Dimensions | 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29″) |
| Weight With Mounting Kits |
300 g (10.6 oz)
315 g (11.1 oz) |
| Networking Interface | (1) RJ45 GbE |
| Buttons | (1) Reset to Defaults |
| Power Method | 802.3af |
| Power Supply | UniFi Switch (PoE) |
| Max. Power Consumption | 10.5W |
| Operating Frequency | 2.4 GHz
5 GHz |
| Max. TX Power | 2.4 GHz : 23 dBm
5 GHz : 26 dBm |
| Antenna Gain | 2.4 GHz : 2.8 dBi
5 GHz : 3 dBi |
| MIMO | 2.4 GHz : 2×2
5 GHz : 4×4 |
| Throughput | 2.4GHz : 300 Mbps
5GHz : 1733 Mbps |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per Radio |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
