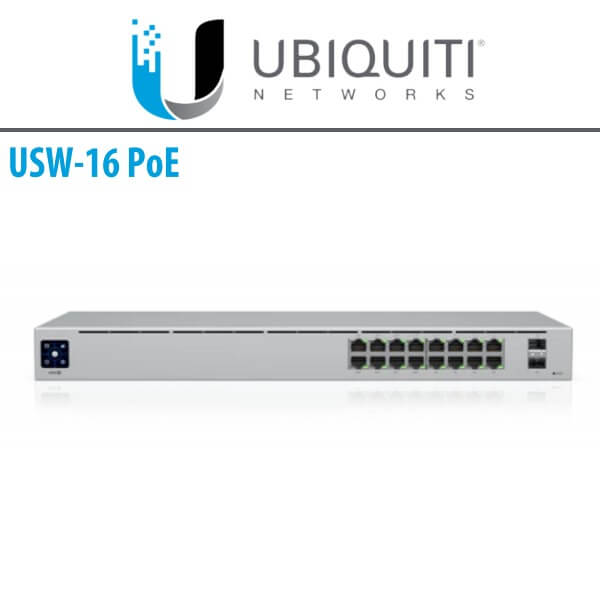

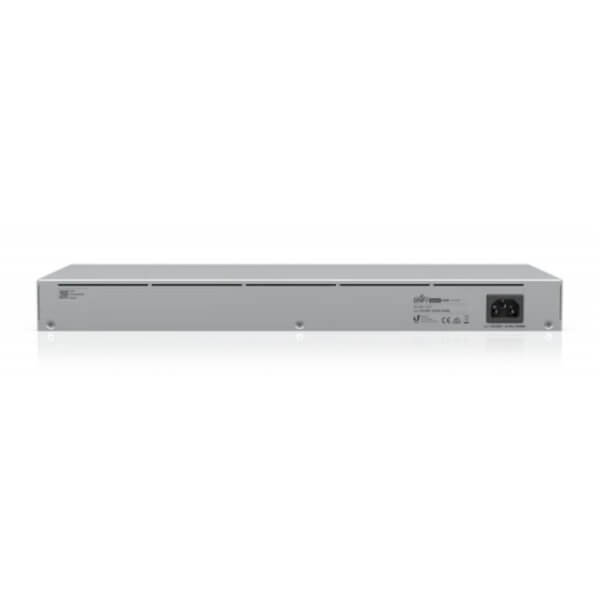

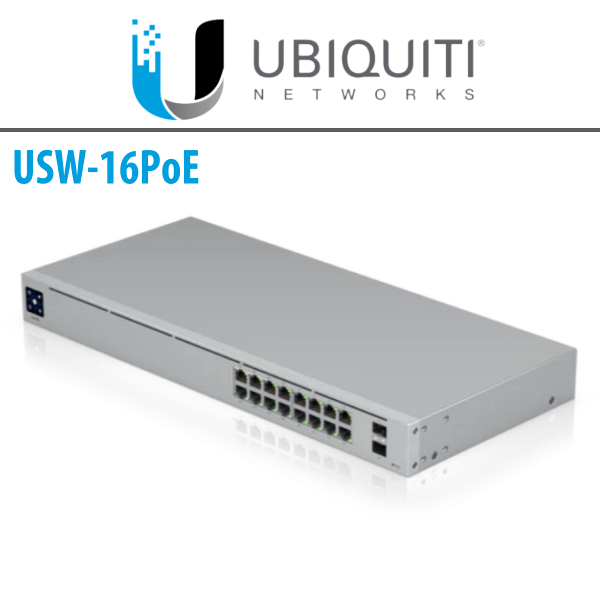

Ubiquiti USW-16-PoE Dubai

Ubiquiti USW-16-PoE Dubai

The Ubiquiti USW-16-PoE Dubai is a versatile Gigabit Layer 2 switch featuring a total of 16 Gigabit Ethernet ports. Among these, there are 8 auto-sensing 802.3at PoE+ ports and 2 SFP ports, providing flexible connectivity options.

Category:

Description

Ubiquiti USW-16-PoE Dubai

The Ubiquiti USW-16-PoE Dubai is a versatile Gigabit Layer 2 switch featuring a total of 16 Gigabit Ethernet ports. Among these, there are 8 auto-sensing 802.3at PoE+ ports and 2 SFP ports, providing flexible connectivity options. With the Ubiquiti USW-16-PoE Dubai, you can establish Gigabit PoE links for your RJ45 Ethernet devices while also enjoying Gigabit fiber uplink capabilities for seamless integration into your enterprise network.

Managing and configuring the Ubiquiti USW-16-PoE Dubai is made easy through the Unifi Network application, with support for the UniFi mobile app. This switch offers an extensive range of advanced Layer 2 switching protocols and functionalities, including the ability to set specific operation modes (switching, mirroring, or aggregation) for each port. Furthermore, administrators can conveniently access and control virtually all of the switch’s features through an intuitive graphical user interface, accessible from anywhere.

USW-16-PoE Dubai Features

  • Near silent cooling
    • Ubiquiti’s new airflow design reduces the need for fan usage.
  • Powerful hardware and software
    • Ubiquiti Unifi USW-16-PoE Gen2 Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release)
  • UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
    • In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
  • Touch screen display
    • The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.

Ubiquiti UniFi USW-16-POE Switch Technical Specifications

Product Specifications

  • Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72″)
  • Weight: 2.80 kg (6.17 lb)
  • Weight with Brackets: 2.89 kg (6.37 lb)
  • Interfaces:
    – Networking: (16) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports
    – Management: Ethernet In-Band
  • Total Non-Blocking Throughput: 18 Gbps
  • Switching Capacity: 36 Gbps
  • Forwarding Rate: 26.78 Mpps
  • Power Method: 100-240VAC, 50/60 Hz, Universal Input
  • Power Supply: AC/DC, Internal, 60W
  • Voltage Range: 100 to 240VAC
  • Max Power Consumption (Excluding PoE Output): 18W
  • LEDs:
    – System: Status
    – RJ45 Data Ports: PoE; Speed/Link/Activity
    – SFP Data Ports: Link/Activity
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 10 – 90% Noncondensing
  • Certifications: CE, FCC, IC

PoE

  • Total Available PoE: 42W
  • PoE Interfaces:
    – Ports 1-8: POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • PoE Wattage per Port by PSE:
    – 802.3at: 32W
  • Voltage Range:
    – 802.3af Mode: 44-57V
    – 802.3at Mode: 50-57V
