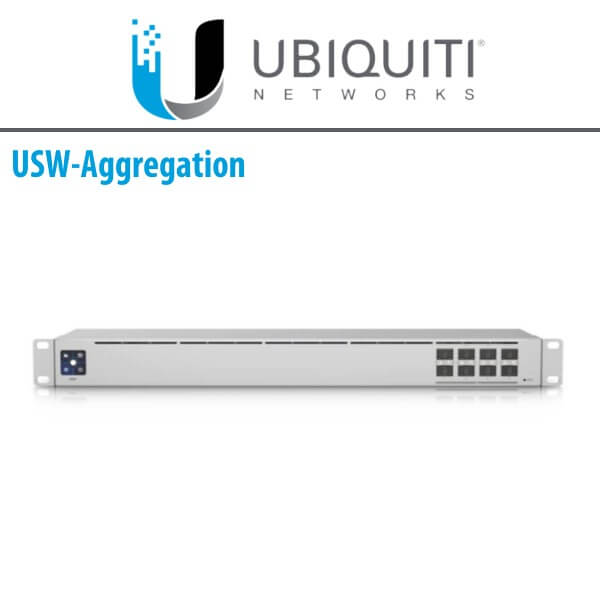

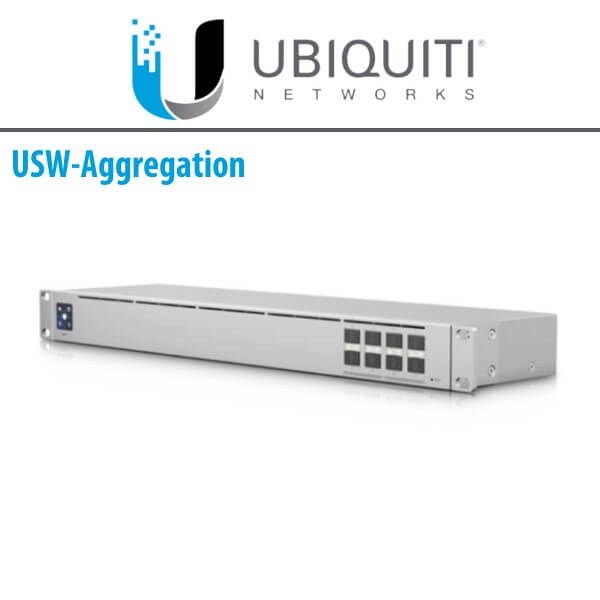

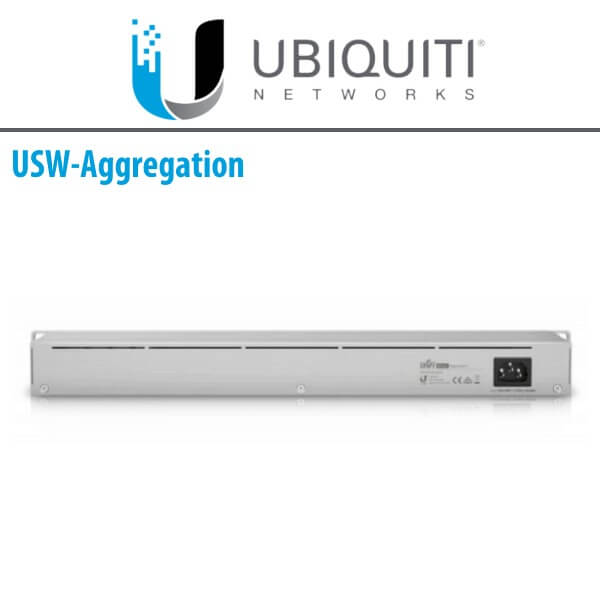

Ubiquiti USW-Aggregation Dubai
The Ubiquiti USW-Aggregation Dubai is a managed Layer 2 switch equipped with eight 10G SFP+ ports. Designed with a compact form factor of just 4.7 inches in depth and a fan-less operation, it excels in supporting high-bandwidth links, facilitating link aggregation to enhance capacity and availability within your network. This Switch Aggregation solution is engineered to elevate your network’s switching capabilities and performance by establishing robust, high-bandwidth aggregation links.
As a rack-mountable switch, it offers an impressive 160 Gbps switching capacity and includes a 1.3-inch LCM color touchscreen, providing clear and concise visibility into key system and connection details. Furthermore, thanks to its compact 4.7-inch depth, this fan-less switch can be effortlessly mounted in a Small Office/Home Office (SOHO) rack cabinet. For added convenience, the Ubiquiti USW-Aggregation Dubai can be conveniently monitored and configured from anywhere using the powerful and user-friendly UniFi Network web application and mobile app.
Features
- 8 x 10G SFP+ Ports
- 160 Gb/s Switching Capacity
- 04 Mpps Forwarding Rate
- Rack-Mountable Design
- Supports High-Bandwidth Links
- 3″ Touchscreen
- Augmented Reality Switch Management
- Supports UniFi Network Controller
UniFi Network Controller Benefits:
- Single interface network management
- Intuitive and comprehensive device configuration, control, and monitoring
- Remote firmware upgrading
- Manage network users and guests
- Personalize the design, architecture, and privacy of guest hotspots
1.3″ Touchscreen
Ubiquiti USW-Aggregation Dubai boasts of 1.3″ LCM color touchscreen that concisely displays key system and connection insights.
Single interface network management
Ubiquiti USW-Aggregation Dubai can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app
UniFi Network Controller
Using the UniFi Network Controller computer interface and mobile app allows you to configure, control, and monitor your network devices from almost anywhere. Features include remote firmware upgrades, setup of users, and configuration of guest portals.
Specifications
| Interfaces | |
| Ports | 8 x 10Gb SFP+ |
| Protocols | |
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Link Aggregation |
| Performance | |
| Forwarding Rate | 119.04 Mpps |
| Switching Bandwidth | 80 Gb/s (Non-Blocking)
160 Gb/s |
| Electrical | |
| Power Draw | 30.00 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 23 to 104°F / -5 to 40°C |
| Operating Humidity | 10 to 90% |
| General | |
| Cooling System | Passive |
| Material of Construction | Steel |
| Rack Form Factor | 1 RU |
| Dimensions | 17.4 x 4.7 x 1.7″ / 442.4 x 120 x 43.7 mm |
| Weight | 5.84 lb / 2.65 kg |
| Packaging Info | |
| Package Weight | 7.43 lb |
| Box Dimensions (LxWxH) | 20.3 x 9.4 x 4.9″ |
