Description

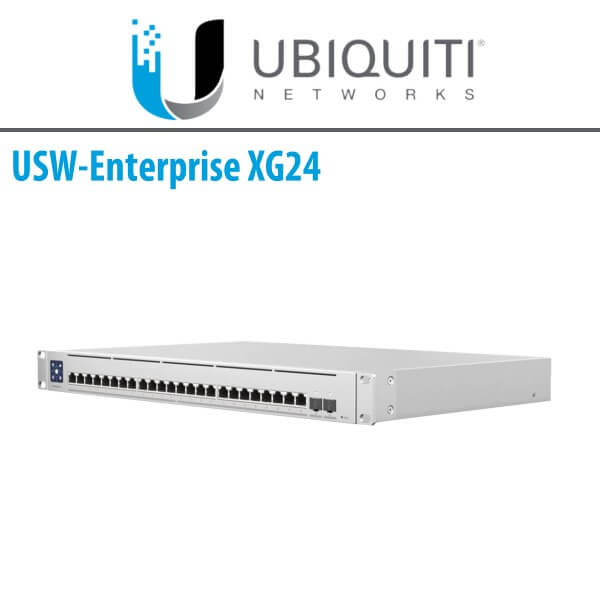

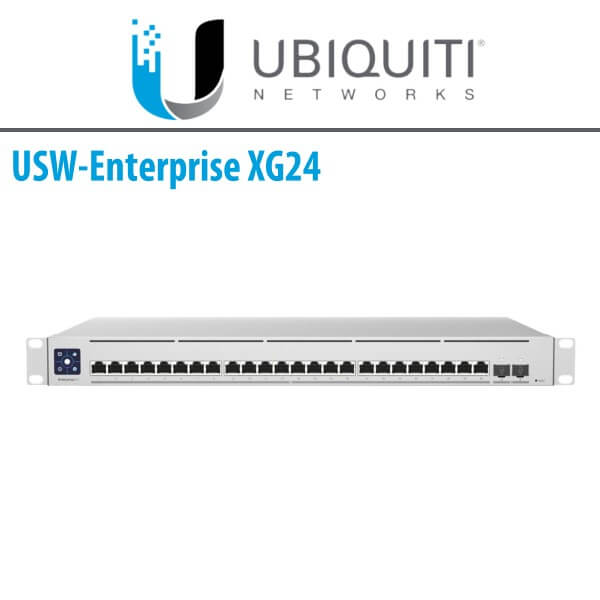

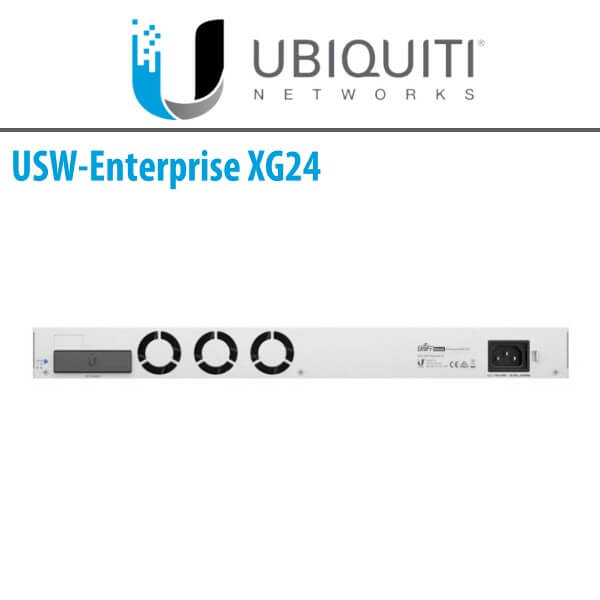

Ubiquiti USW-EnterpriseXG24 Dubai
The Ubiquiti USW-EnterpriseXG24 Dubai represents a fully managed, multigigabit Layer 3 switch, boasting an array of 24 10GbE RJ45 ports and 2 25G SFP28 ports designed for fiber connections. What sets the Ubiquiti USW-EnterpriseXG24 Dubai apart is its inclusion of a 1.3″ LCM color touchscreen, providing a clear and concise display of critical system and connection information.
For enhanced reliability, the Ubiquiti USW-EnterpriseXG24 Dubai also provides comprehensive power supply failure protection when linked with the SmartPower Redundant Power System (USP RPS, available for separate purchase). Furthermore, this switch offers the convenience of remote monitoring and configuration via the powerful and user-friendly UniFi Network web application and mobile app, accessible from anywhere.
The Switch Ubiquiti USW-EnterpriseXG24 Dubai, a high-performing network switch developed by Ubiquiti Networks, features a remarkable twenty-four 10G RJ45 Ethernet ports, delivering an impressive 580 Gb/s (290 Gb/s non-blocking) switching capacity and a swift 431.52 Mpps forwarding rate. This high-performance Layer 3 switch is expertly crafted to facilitate rapid data transfer among computers, servers, network-attached storage, and other compatible wired devices.
Feature
- Centrally manage multiple networks from an intuitive interface
- Real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Powerful Performance
Featuring twenty-four 10G RJ45 Ethernet ports with a 580 Gb/s (290 Gb/s non-blocking) switching capacity and 431.52 Mpps forwarding rate Ubiquiti USW-EnterpriseXG24 Dubai Layer 3 switch is designed to quickly transfer data
UniFi Network web application and mobile app.
Ubiquiti USW-EnterpriseXG24 Dubai allow easy configuration settings using the convenient, built-in 1.3″ LCM color touchscreen or by using the UniFi Network Application on almost any device, from almost anywhere in the world
Specifications
| Interfaces | |
| Ports | · 28 x 10Gb Ethernet (RJ45)
· 2 x 25 Gb/s SFP28 |
| Protocols | |
| Layer Services Supported | Layer 3 Support |
| Performance | |
| Forwarding Rate | 431.52 Mpps |
| Switching Bandwidth | · 580 Gb/s
· 290 Gb/s (Non-Blocking) |
| Electrical | |
| Power Draw | 100.00 W |
| DC Input Power | 11.5 VDC at 8.7 A |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2 A |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 23 to 104°F / -5 to 40°C |
| Operating Humidity | 10 to 95% |
| General | |
| Cooling System | Fan |
| Material of Construction | Steel |
| Rack Form Factor | 1 RU |
| Dimensions | 17.4 x 11.2 x 1.7″ / 442 x 285 x 44 mm |
| Weight | 10.08 lb / 4.57 kg |
| Packaging Info | |
| Package Weight | 12.435 lb |
| Box Dimensions (LxWxH) | 20.4 x 16.1 x 5.5″ |
