Description

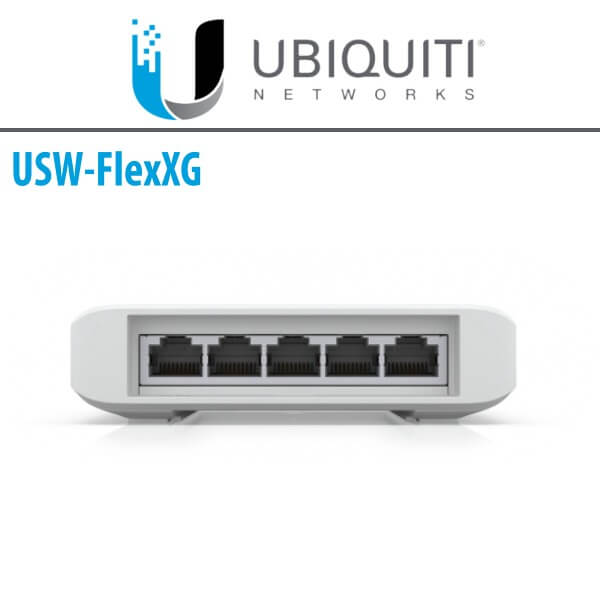

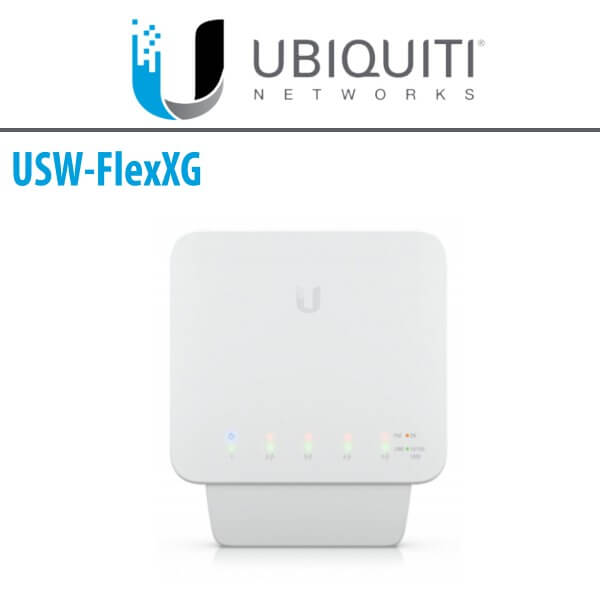

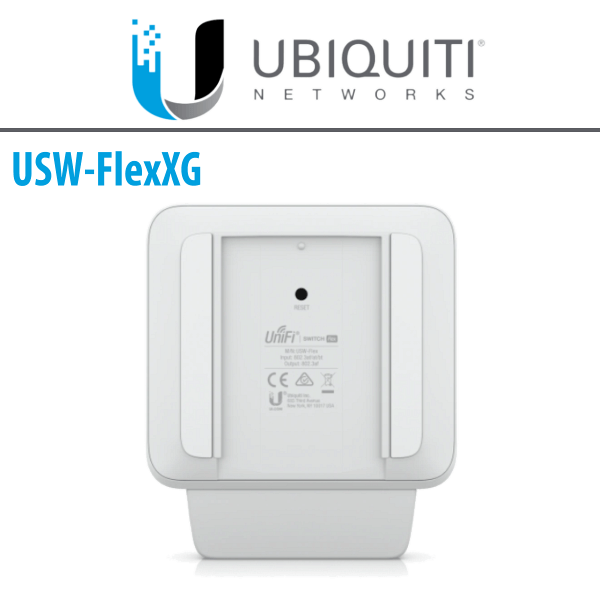

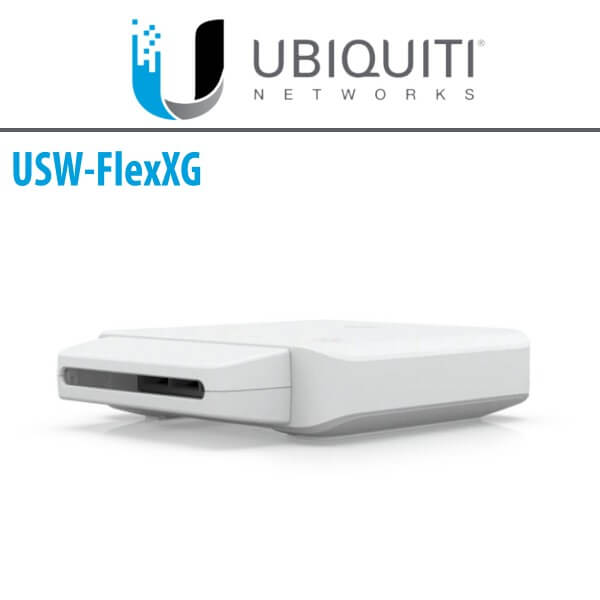

Ubiquiti USW-FlexXG Dubai
The Ubiquiti USW-FlexXG Dubai offers a sleek, compact housing ideal for easy desktop mounting. It serves as a fully managed, multi-gigabit, Layer 2 switch, equipped with (4) 10GbE RJ45 ports and (1) GbE PoE input. What’s more, this switch provides the convenience of remote monitoring and configuration through the powerful and user-friendly UniFi Network web application and mobile app, accessible from anywhere.
Expand your network effortlessly with the UniFi Switch Flex XG (USW-Flex-XG). This highly configurable, managed 10GbE Layer 2 switch boasts five RJ45 Gigabit Ethernet ports, including one PoE Gigabit input and four 10GbE RJ45 Ethernet ports. Designed with a compact, slim profile, the Ubiquiti USW-FlexXG Dubai ensures high-performance switching in various environments and can be centrally managed through the UniFi Network application.
Features:
- (1) GbE, 802.3at PoE+ RJ45 input
- (4) 10GbE RJ45 ports
- Compact, slim housing
- Can be powered with a 5V, 5A USB-C adapter
Technical Specs
| Mechanical | |
| Dimensions | 135 x 185 x 32 mm (5.31 x 7.28 x 1.27″) |
| Weight | 1.2 kg (2.65 lb) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Total Non-Blocking Throughput | 41 Gbps |
| Switching Capacity | 82 Gbps |
| Forwarding Rate | 61.012 Mpps |
| Max Power Consumption | 25W |
| Power Method | (1) 802.3at PoE, 50-57VDC, 25W
(1) USB Type-C, 5VDC, 5A |
| Power Supply | 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8)
AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included) |
| Supported Voltage Range | 90 to 264VAC (Adapter) |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet
(4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet |
| Services | SMB Layer 2 Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Button | Factory Reset |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 – 90% Non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Power, Blue/White
Flashing White : Bootup in Progress Flashing Blue : Firmware Upgrading Steady White : Factory Defaults, Awaiting Adoption Steady Blue : Device is Adopted |
| Ethernet | White : Link or Activity |
