Description

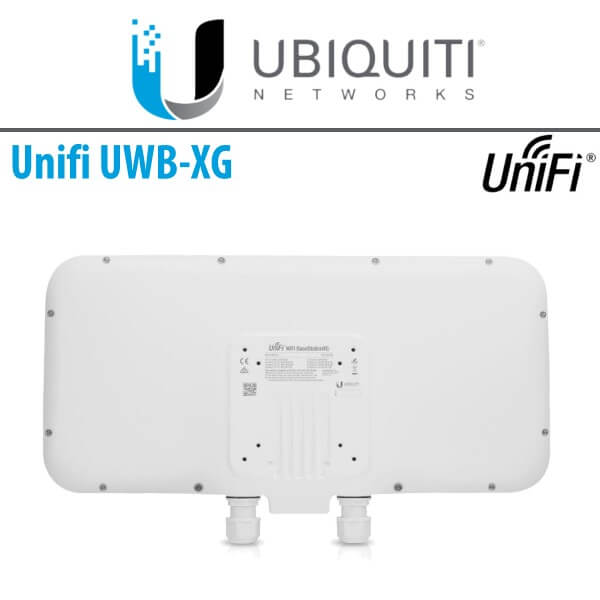

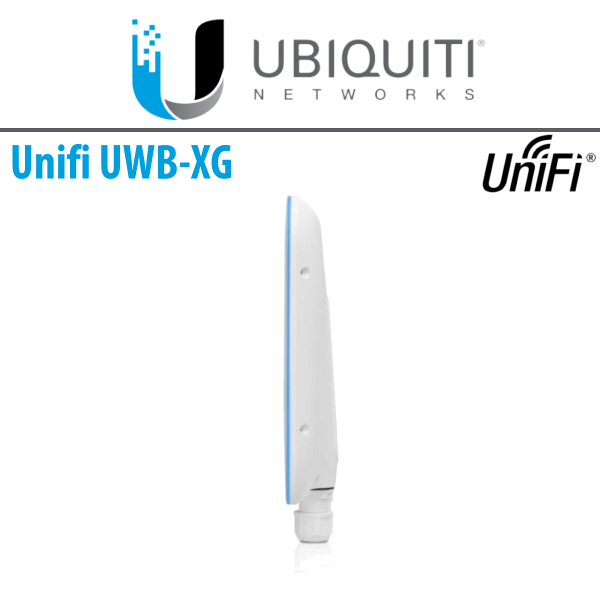

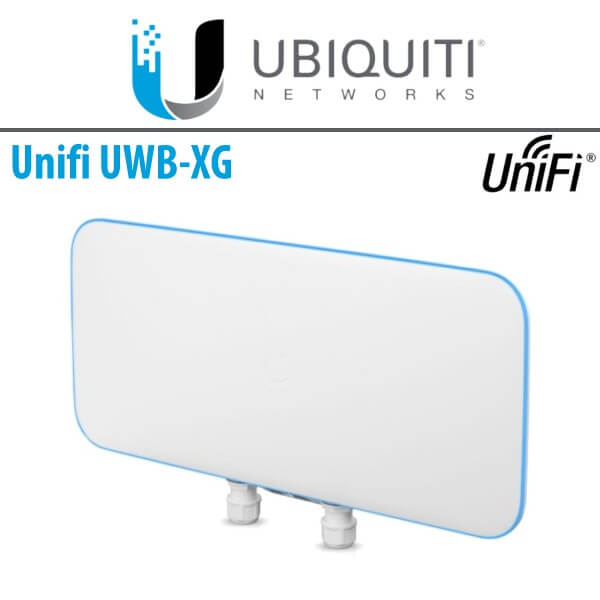

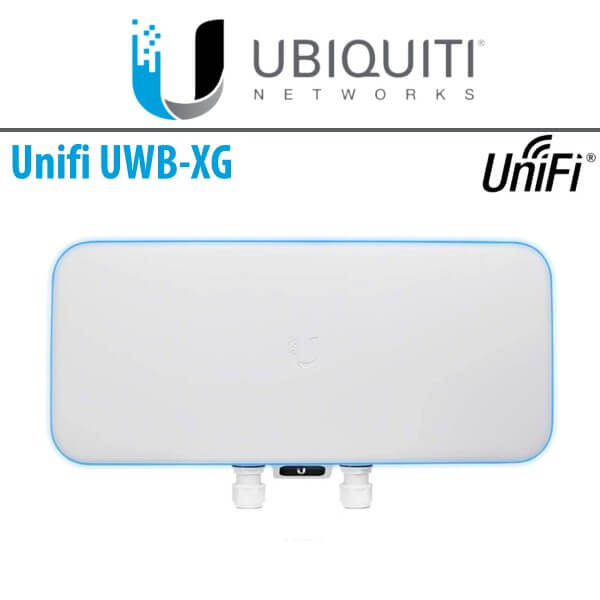

Ubiquiti UWB-XG Dubai

The Ubiquiti UWB-XG Dubai offers an exceptional blend of wireless performance and security, making it an excellent choice for ultrahigh-density environments like event venues, festivals, and medium to large-sized stadiums. This cutting-edge device incorporates the latest Wi-Fi technology, 802.11ac Wave 2 MU-MIMO, alongside dedicated security and Bluetooth radios. The Ubiquiti UWB-XG Dubai is equipped with a built-in, dedicated security and monitoring radio, providing valuable insights into site performance, channel planning, and local interference.

Accessing the Wi-Fi BaseStation XG Dubai is a breeze, as it can be easily managed through any standard web browser or the UniFi mobile app (available for iOS and Android). The UniFi Controller software, a robust engine, is well-suited for high-density client deployments that demand low latency and exceptional uptime performance. This Quad-Radio 802.11ac Wave 2 Access Point features dedicated security and beamforming antennas, supporting simultaneous 5 GHz tri-band 4×4 multi-user MIMO connectivity. It’s tailored for deployments accommodating a large number of users, up to 1500 clients, making it perfect for venues such as stadiums, concert halls, and more.

Features

Intuitive UniFi Controller Software
Dedicated Security Radio with Persistent Threat Management
Simultaneous 5GHz Tri-Band 4×4 Multi-User MIMO
Software-Controlled Coverage Patter for Cell-Size Optimization

Elegant Versatile Design

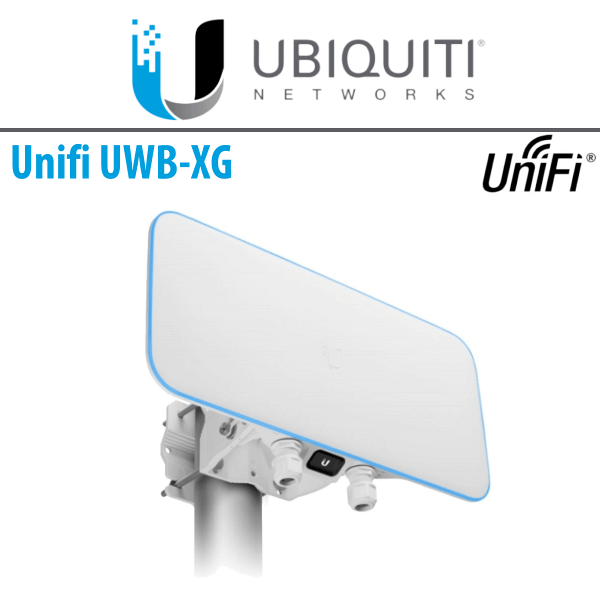

The sleek ubiquiti UWB-XG Dubai is a versatile access point with multiple mounting options to suit your application.

RF Energy Steering
True cellular Wi-Fi using multiple APs – its selectable directional beamforming antenna allows for cell size optimization to maximize coverage.

RF Channel filtering
Ubiquiti Unifi UWB-XG Dubai provides isolation for seamless parallel radio operation.

Highly Secure
The Ubiquiti Unifi UWB-XG Dubai delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the AP constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance.

Specifications

General Properties

Dimensions (Without Mount) : 471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713″)
Weight (Without Mount) : 3.2 kg (7.055 lb)
Networking Interface :
– (1) 10/100/1000 RJ45 Ethernet Port
– (1) 1/10 Gbps ICM Ethernet Port
Button : Reset
LED : RGB, Software-Controllable
Power Method : 802.3bt PoE
Power Supply : 50VDC, 1.2A Gigabit PoE
Power Save : Supported
Beamforming : Supported
Power Consumption : 31W
Supported Voltage Range : 44-57VDC
TX Power : 25 dBm
MIMO : (3) 4 x 4
Operating Frequency : 5 GHz
Antenna : Integrated Dual-Mode Antenna Array
Antenna Gain :
– Small Cell : 15 dBi
– Large Cell : 10 dBi
Antenna Beamwidth :
– Small Cell : 50°
– Large Cell : 90°
Wi-Fi Standards : 802.11 a/n/r/k/v/ac/ac-wave2
Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
Mounting : VESA-Compatible Mount, Pole/Wall (Brackets Included)
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Noncondensing
Dust and Water Resistance : IP67
Certifications : CE, FCC, IC

Advanced Traffic Management

VLAN : 802.1Q
Advanced QoS : Per-User Rate Limiting
Guest Traffic Isolation : Supported
WMM : Voice, Video, Best Effort, and Background
Concurrent Clients : 1500

Supported Data Rates (Mbps)

Standard : 802.11ac
Data Rates : 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80), 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
Standard: 802.11n
Data Rates : 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
Standard : 802.11a
Data Rates : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
