Yealink MVCS90 Dubai

Yealink MVCS90 Dubai

Yealink MVCS90 Dubai

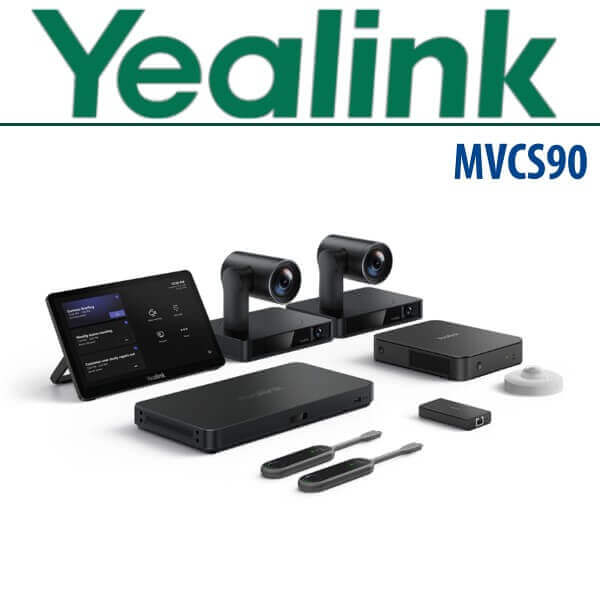

The Yealink MVCS90 Dubai is specifically crafted for large conference rooms, providing a comprehensive set that includes the high-performance MINI-PC MCore Pro, the MTouch Plus touch panel, the intelligent 4K PTZ camera UVC86, and the AVHub for advanced audio and video processing.

Category:

Description

Yealink MVCS90 Dubai

The Yealink MVCS90 Dubai is specifically crafted for large conference rooms, providing a comprehensive set that includes the high-performance MINI-PC MCore Pro, the MTouch Plus touch panel, the intelligent 4K PTZ camera UVC86, and the AVHub for advanced audio and video processing. With the ability to adjust screen layout and support up to 9 connected cameras, the AVHub enables a multi-camera solution with multi-speaker tracking, catering to the needs of expansive meeting rooms, classrooms, and training spaces. The standard Yealink MVCS90 Dubai set comes with two UVC86 cameras, featuring 12x optical zoom capabilities and intelligent follow-up shooting.

Key Features and Benefits Flexible Multi-Camera Solution Using the audio and video processor AVHub, Yealink facilitates a multi-camera setup, supporting up to 9 Yealink cameras. Users can control them independently via the MTouch Plus, splice the output videos, and adjust the layout as needed. The Yealink MVCS90 Dubai series allows for flexible merging and division of conference room systems through network cables.

Enhanced Conference Control Experience The Yealink third-generation MTouch Plus, with an 11.6-inch narrow-frame touch area, supports multiple panels for simultaneous conference control. This allows for versatile deployment of the panels in the conference room, ensuring comprehensive control of the entire conference process.

Intelligent Tracking for Hands-Free Operation The UVC86 intelligent PTZ camera from Yealink supports various tracking functions, including Auto-Framing, Speaker Tracking, and Presenter Tracking. Equipped with a plug-in controller, the camera enables quick switching between preset positions and tracking modes, providing a seamless and intelligent meeting experience.

Adaptable Audio Solutions With options for wired or wireless microphones such as VCM35, VCM38, VCM36-W, and CPW65, Yealink accommodates various deployment scenarios, ensuring crystal-clear voice reproduction. The unique sound processing algorithm dynamically eliminates reverberation and noise, while compatibility with third-party audio devices allows seamless integration with existing equipment.

Effortless Remote Device Management The Yealink Device Management Platform/Cloud Service supports the remote management, monitoring, configuration, updating, and diagnosis of all Yealink audio and video peripherals, ensuring seamless control over the entire system.

Specifications

Package Content

  • MCore Pro, Gen-3 Mini-PC
  • MTouch Plus, Gen-3 touch panel
  • AVHub, audio and video processor
  • 2 x UVC86 USB PTZ camera
  • 2 x WPP30 wireless presentation pod
  • RoomSensor, meeting room sensor

MCore Pro, Gen-3 Mini-PC

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

MTouch Plus

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Adjustable stand (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support wireless BYOD*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted

 RoomSensor

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4 year life

AVHub, audio and video processor

  •  2 x USB-A port
  • 1 x USB-B port
  • 1 x Codec port
  • 7 x Yealink VCH port(RJ-45)
  • 1 x RCA in/out interface
  • 1 x 6.3mm Line in interface
  • 1 x 6.3mm Line out interface
  • 1 x power interface
  • Dividable and merging meeting rooms are supported
  • Support intelligent multi-speaker tracking

 UVC86 USB PTZ Camera

  • 4K Sensor
  • 20.4 × HD zoom (12x optical, 1.7x digital)
  • Angle of view:
    • 90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens)
    • 120° DFOV, 110° HFOV, 78° VFOV (panoramic lens)
  • Auto-framing
  • Speaker tracking
  • Presenter tracking, support area Trigger and gesture control
  • Multi-Focus
  • Picture-in-picture
  • Up to 9 preset positions can be set
  • Horizontal rotation: 200°
  • Vertical Rotation: 130°
  • 1 x HDMI output
  • 1 x Yealink microphone port(RJ-45)
  • 1 x USB 3.0 Type-B port
  • 1 x USB 2.0 Type-A Port
  • 1 x Power Port
  • 1 x Security Lock
  • 1 x Reset Hole
