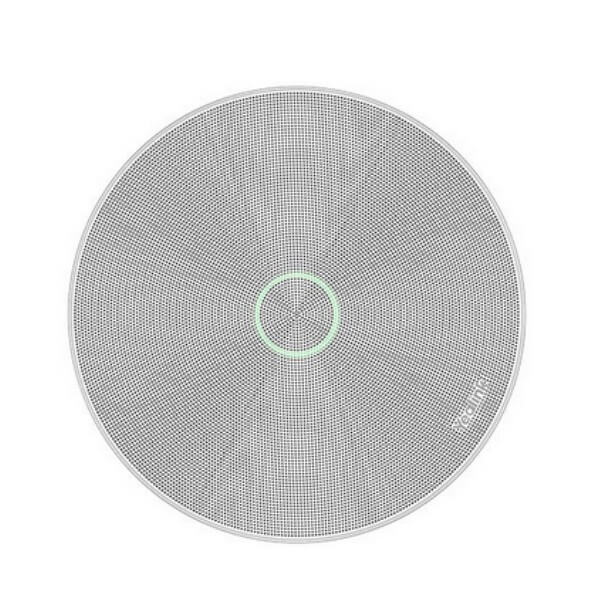

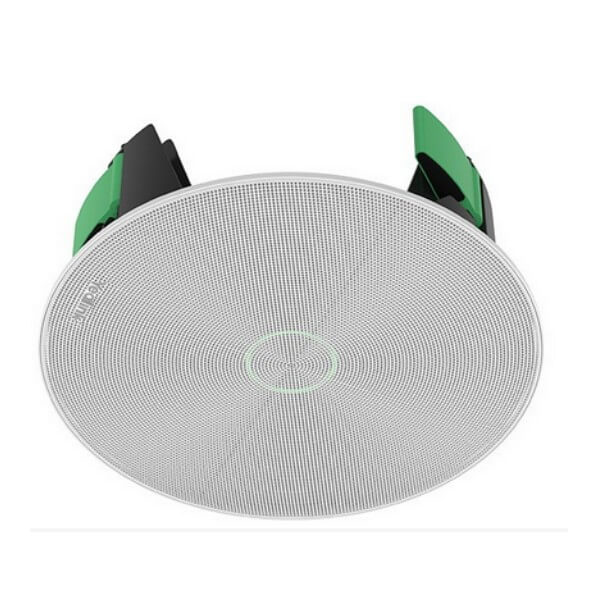

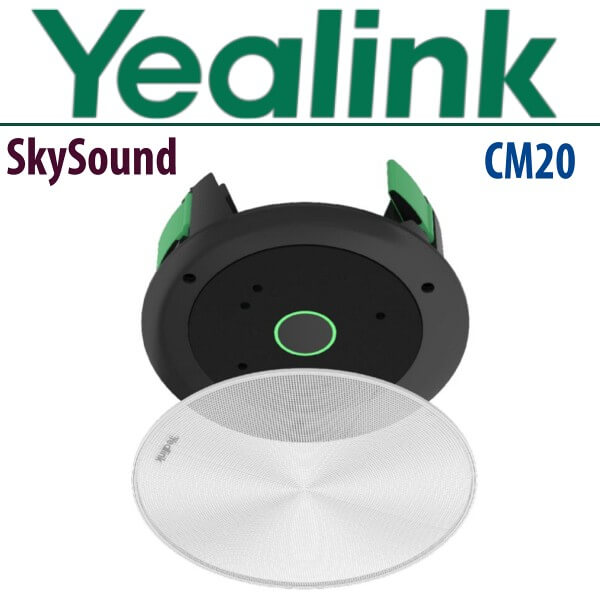

Yealink SkySound CM20 Dubai

The Yealink SkySound CM20 Dubai represents a top-tier ceiling microphone meticulously engineered to elevate audio quality in professional conference environments. Featuring a sophisticated array of 16 omnidirectional microphones, the CM20 adeptly captures sound from all directions, facilitating clear and inclusive discussions. Equipped with integrated DSP, the Yealink SkySound CM20 seamlessly integrates with Yealink MVC systems, eliminating the necessity for external audio processing. Tailored for medium to large conference spaces, this device harmonizes cutting-edge technology with a refined, stylish design, embodying the ideal fusion of functionality and aesthetics.

Yealink SkySound CM20 Features

Advanced Microphone Array: The Yealink SkySound CM20  comes with 16 omnidirectional units, delivering exceptional audio clarity across 8 separate pickup zones.

Superior Coverage: This device can cover areas of up to 60 square meters and offers high-quality 30 square meters full-duplex audio capture, making it perfect for medium to large spaces.

Intelligent Sound Processing: Utilizes Yealink’s advanced technologies to cancel noise, echo, and reverberation, ensuring clear audio quality for all meetings.

Intelligent Tracking: This product has 8 beam outputs to track speakers accurately and can be connected to room cameras for improved camera tracking, enhancing meeting participation.

In-built DSP for Simplicity: The SkySound CM20 comes with a built-in DSP, providing plug-and-play compatibility with Yealink MVC systems and eliminating the requirement for external audio processing.

Network and Deployment Efficiency:  This device is compatible with AES67 for seamless inclusion in audio networks. It is PoE enabled, necessitating only a single Ethernet cable for both power and audio transmission.

Versatile Ceiling Integration: Provides a range of installation choices such as in-ceiling, pendant, and on-ceiling to simplify setup and blending.

 Elegant and Unobtrusive Design: It features a detachable mesh cover with magnetic suction, bringing an element of elegance while also being subtle and simple to upkeep.

Yealink SkySound CM20 Specifications

• Package Content:

• • SkySound CM20 Microphone

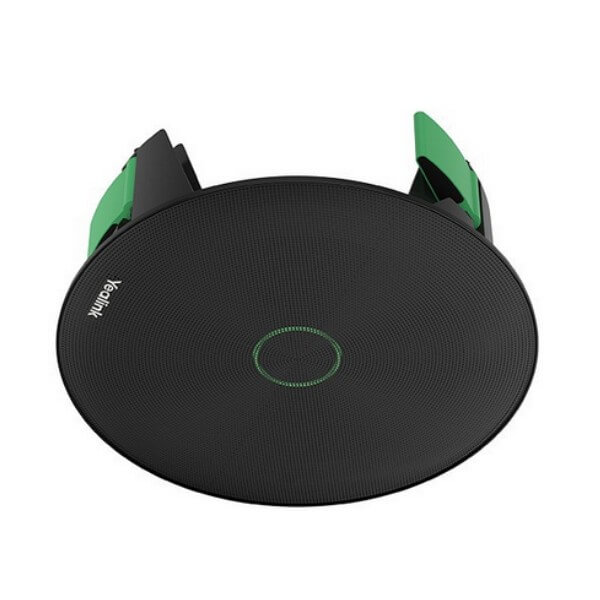

  • White Mesh Cover (Black Optional)
  • Quick Start Guide
  • Assembly Fixing Bracket
  • Dust Cover
  • Length-Adjustable Pole (Optional)
  • Bracing Bridge*1 pair
  • Suspend Pole Adapter (Optional)
  • Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide)
  • Self-tapping Screw*6 (T4*30mm)
  • Machine Screw*5 (3*6PMOZN3+)
  • Bracing Bredge Screw*20 (M3*6PWMHOZN3)

• Audio Specifications

• • Frequency Response: 120Hz-16kHz
  • Maximum SPL: 122dBSPL
  • Signal Noise Ratio: 94dBSPL @1kHz A-Weight
  • Sensitivity: 0 dBV/Pa 94dBSPL@1kHZ
  • Microphone: 16 omni-direction microphones
  • AEC Channel: 1 channel internal

• Physical Features
  • Operating Temperature: 0-50℃
  • Storage Temperature: 0-70℃
  • Operating Humidity: 5%~90%
  • Continuous Power: 5.7W
  • Peak Power: 9W
  • Interface: 1*RJ-45
  • Power Supply: PoE (IEEE 802.3af, class 3)

• Product Specifications
  • Size:
    • • 223*H83mm (with cover mesh)
      • 215*H81mm (without cover mesh)
  • Weight: 615g
  • Product Color: Pearl Light Gray
  • Product Materials: ABS+PC&iron mesh
• Logistic Information
  • Box Size: 398 mm*310 mm*135mm
    • W/CTN: 2.462kg
    • W/CTN: 3.078kg
