Description

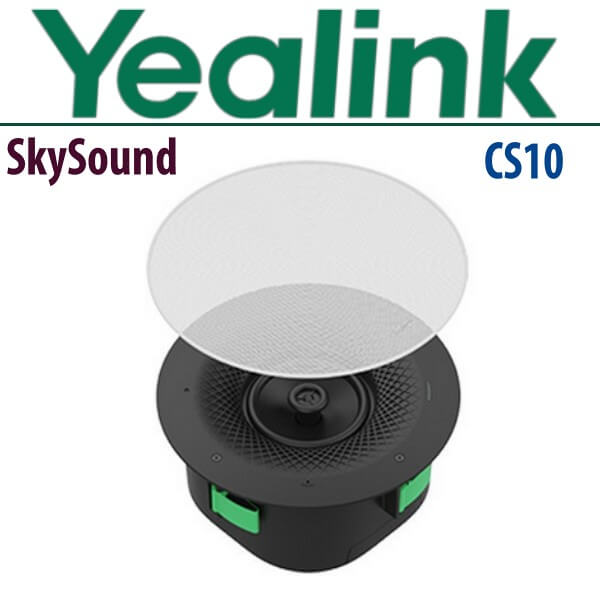

Yealink SkySound CS10 Dubai

The Yealink SkySound CS10 Dubai is a discreet 2-way coaxial network speaker renowned for its outstanding audio quality, particularly in video conferencing settings. Tailored for contemporary meeting spaces, it seamlessly combines top-notch sound with a sleek, minimalist aesthetic, perfectly suited for modern conference rooms. Engineered for versatility and user-friendliness, this PoE-enabled speaker offers optional deployment with various supplementary components, streamlining installation across different ceiling types. Its understated design positions the CS10 as more than just a speaker; it’s a crucial enhancement to your meeting environment, enriching both auditory and visual aspects. Beyond its functional role, the CS10 embodies elegance and technological sophistication, serving as the quintessential audio solution for professional requirements.

Yealink SkySound CS10 Key Features

 Innovative Coaxial Structure: This speaker has a 2-way coaxial configuration with a strong 5.7-inch LF Woofer and a clear 1.1-inch HF Tweeter for precise audio output.

High Performance Acoustics: This speaker has excellent acoustic qualities, featuring a sensitivity of 88 decibels at 1 watt per meter and a maximum sound pressure level of 99 decibels at 20 watts per meter, delivering precise and strong audio.

PoE Enabled Active Speaker: The SkySound CS10 seamlessly combines active speaker features with built-in DAC and PoE technology. This allows for quick digital signal processing from the network, making it easy to set up with low latency, perfect for various professional situations.

Dante Ready for Advanced Audio Networking: The SkySound CS10 comes in two versions: Dante-enabled and standard. It seamlessly integrates into advanced audio networks, offering flexibility for intricate setups and compatibility with Dante audio systems. Opt for the Dante version to leverage its advanced audio networking capabilities.

Versatile Deployment: Provides a range of indoor installation solutions that work with different ceiling types and grid systems, guaranteeing seamless integration with any interior design.

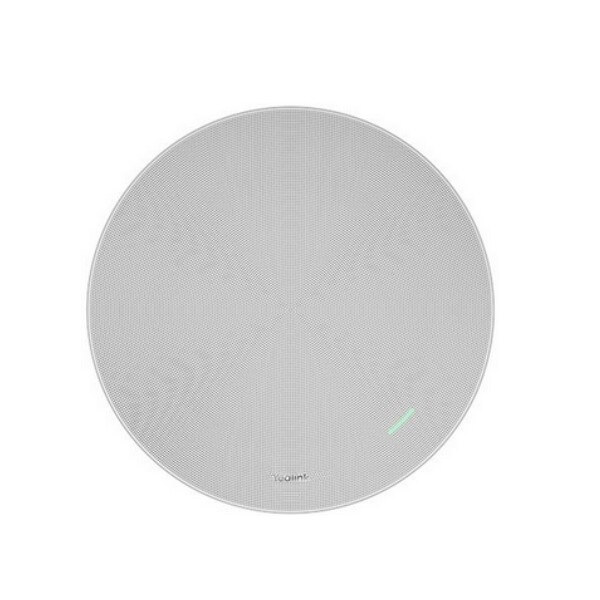

Sophisticated Design: This speaker comes with a removable magnetic grille that can be painted and is available in black or white. The grille enhances the speaker’s sleek and low-profile appearance, measuring 120mm, making it suitable for any contemporary interior.

Yealink SkySound CS10 Specifications

Package Content

• SkySound CS10 Speaker
• White Mesh Cover (Black Optional)
• Quick Star t Guide

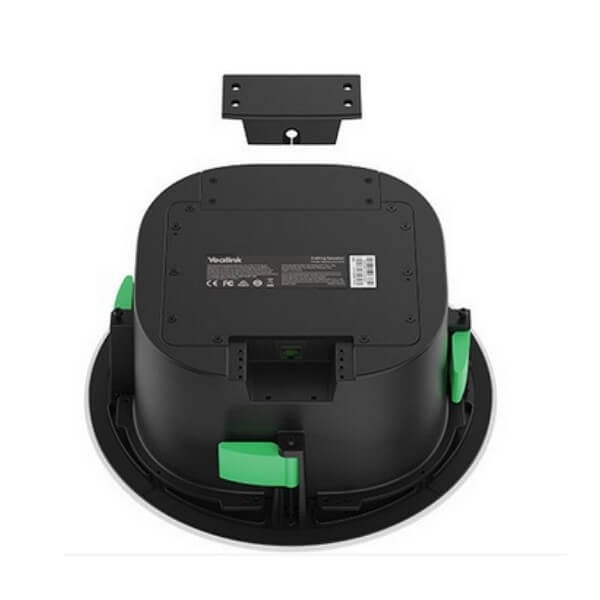

• Assembly Fixing Bracket
• Dust Cover
• Deployment Instruction Template
• Bracing Bridge (Optional)
• Dust Cover Screw*6 (M3*4CMHOZN3)

Audio Specifications

• Frequency Response (6dB): 10020kHz
• Maximum SPL:
  • Continuous: 99dB @20W 1m
  • Sensitivity: 88dB@1m 1W

Speaker Specification

• LF: 5.7inch (145 mm) woofer
• HF: 1.1inch (28 mm) tweeter
• Nominal Impedance: 8Ω
• Nominal Coverage Angle: 120

Product Specifications

• Size:
  • ф294*H125.8mm (with cover mesh）
  • ф2*H125mm (without cover mesh)
• Weight:
  • 2808g (without cover mesh) ；
  • 207g (Cover mesh)
• Product Color: white/black
• Cover Mesh Color: white/black
• Product Materials:
  • Cover Mesh: PC/ABS Welded SPCC
  • Main Body Shell: PA (Polyamide) with 15% GF
  • Bottom Shell: aluminum alloy
  • Cover Plate: PC/ABS and SGCC
  • Plenum Rated UL 2043 (suitable for air handling spaces)

Physical Specifications

• Operating Temperature: 050℃
• Storage Temperature: 050℃
• Operating Humidity: 5%~90%
• Peak Power: 20 W
• Power Supply: PoE+ (IEEE 802.3at class 4)
• Interface: 1*RJ45

Logistic Information

• Canton Size: 398 mm*355 mm*185 mm
• W/CTN: 4.628 kg
• W/CTN: 5.597 kg
