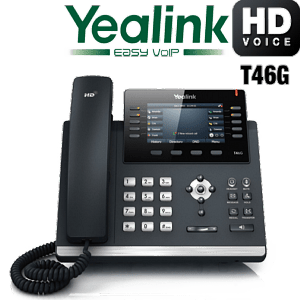

YEALINK T46G Features and Functions

• Revolutionarily new design
• Yealink Optima HD voice
• Dual-port Gigabit Ethernet
• 4.3″ 480 x 272-pixel color display with backlight
• Built-in a USB port, support Bluetooth headset (Through USB Dongle)
• Up to 6 SIP accounts
• Paper label free design
• PoE support
• Headset, EHS support
• Supports expansion modules
• Stand with 2 adjustable angles
• Wall mountable
• Simple, flexible and secure provisioning options

YEALINK T46G Specification

Audio Features

• HD voice: HD handset, HD speaker
• Codecs: G.722, G.711(A/μ), G.723, G.729AB, G.726, GSM
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 6 VoIP accounts
• Call hold, Mute, DND
• One-touch speed dial, Hotline
• Call forward, Call waiting, Call transfer
• Group listening, SMS, Emergency call
• Redial, Call return, Auto answer
• Call history: dialed/received/missed/forwarded
• 3-way confernecing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial Plan, XML Browser, Action URL

Directory

• Loal phonebook up to 1000 entries
• Broadsoft Contacts: Custom/Enterprise/Personal/Common/Search/Speed Dial
• Black list
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export

IP-PBX and BroadSoft Features

• Busy lamp field (BLF), BLF list
• Bridged line apperance(BLA)/SCA
• Anonymous call, Anonymous call rejection
• DND & forward synchronization
• BroadWorks Anywhere
• N-Way Calling, Remote Office
• Network Call Logs – Basic
• Broadsoft call center features
• Message waiting indicator (MWI)
• Voice mail,Call park, Call pickup
• Intercom, paging, Music on hold
• Call completion, Call recording

Display and Indicator

• 4.3″ 480 x 272-pixel color display with backlight
• 16 bit depth color
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Wallpaper
• Intuitive user interface with icons and soft keys
• National language selection
• Caller ID with name, number and photo

Interface

• Dual-port Gigabit Ethernet
• Built-in a USB port, support Bluetooth headset (Through USB Dongle)
• 1xRJ9 (4P4C) handset port
• 1xRJ9 (4P4C) headset port
• 1XRJ12 (6P6C) EXT port: Supports up to 6 Expansion Modules for an attendant console application
• Power over Ethernet (IEEE 802.3af), Class 3

Other Physical Features

• Stand with 2 adjustable angles
• Wall mountable
• External Universal AC Adapter (optional): AC 100~240V input and DC 5V/2A output
• Power consumption (PSU): 1.8W-5.4W
• Dimension(W*D*H*T): 244mm*213mm*185mm*54mm
• Operating humidity: 10~95%
• Storage temperature: -10~50°C

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• BroadSoft device management
• Zero-sp-touch, TR-069, SNMP
• Provisioning server redundancy supported
• Phone lock for personal privacy protection
• Reset to factory, Reboot
• Package tracing export, System log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• NAT transverse: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
• IPv6

Package Features

• Qty/CTN: 5 PCS
• N.W/CTN: 8.1KG
• G.W/CTN: 9.16K
• Giftbox size: 274mm*258mm*142mm
• Carton Meas: 732mm*286mm*266mm
