Description

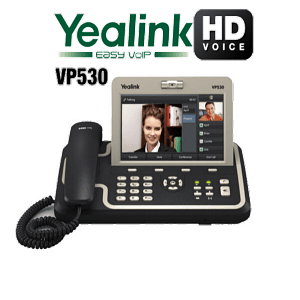

YEALINK VP530
The Yealink VP530 touchscreen video phone is ideal for executives and managers in fields across Healthcare, Hospitality, and Education. The 7″ resistive touchscreen has an icon driven based menu for easy navigation, an Open API for customizable third party applications for industries that require new and ever-evolving apps. 3-way video conferencing, wideband HD voice, a full duplex speaker, an HD handset and a 2.5mm headset jack allow you to conduct your business calls in whatever way you need to connect.
The VP530 has 27 DSS keys including 4 soft keys, IP PBX and Broadsoft features, directory support, and PoE capability. This video phone from Yealink has enterprise-grade, web-based, intuitive configuration methods that make it easy for IT administrators to deploy, provision, and maintain several VP530’s in a large environment. Utilize the Yealink VP530 to it’s fullest extent by viewing your IP camera security system on the 7″ display.
YEALINK VP530 Features and Functions
- TI DaVinci dual-core chipset, 2M CMOS camera
- 7” 800×480 digital LCD, Touch screen
- HD Voice, full-duplex speakerphone
- 4 VoIP accounts, 3-way video conferencing
- BLF, Intercom, 18 one-touch soft DSS keys
- Total directory solution
- Door phone application
YEALINK VP530 Specification
Phone Features
- 4 VoIP accounts, Video/Voice call
- 20 one-touch soft DSS keys, Speed dial
- Dial/answer call type selection (video or voice)
- Call forward, Call waiting, Call transfer, Call hold
- Call manager, Mute, Redial, Auto answer
- DND, Caller ID display, Call history, Call statistics
- Voice mail, Local 3-way audio conference
- Direct IP call without SIP proxy
- Phonebook with contact picture,
- Group manager, Black list
- Picture dial, XML/LDAP remote phonebook
- New message and missed call notification
- Volume control, Ring tone selection
- Wall paper, Video/Photos screen saver
- Video/photo/wallpaper/ringtone manager
- Set date time manually or automatically
- National language selection
- Backlight time selection
- Icon-driven menu
PBX Integration Features
- Busy lamp field (BLF), BLF list
- Message waiting indicator (MWI)
- Intercom, Music on hold
- Call park, Call pickup
- Anonymous call, Anonymous call rejection
- DND & forward synchronization
- Dial Plan, Dial-now
Audio Features
- HD voice: HD codec, HD handset, HD speaker
- Wideband codec: G.722
- Narrowband codec: G.711(A/μ), G.723.1, G.729AB
- DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
- Full-duplex hands-free speakerphone with AEC
- Voice activity detection
- Comfort noise generation
- Adaptive jitter buffers
- Packet loss concealment
Video Features
- Video codec: H.264 and H.263
- Image codec: JPEG, GIF, PNG, BMP
- Video capacity: up to D1 (720×480)@30fps
- Video call format: VGA/CIF/QCIF
- Bandwidth selection: 128kbps~1Mbps
- Frame rate selection: 10~30fps
- Adaptive bandwidth adjustment
- I-frame adjustable
- Picture-in-Picture (PIP)
- Full screen for remote side
- Video control of local side
- TV output with PAL/NTSC format
- Door phone and IP camera application
Network and Security
- SIP v1 (RFC2543), v2 (RFC3261)
- NAT transverse: STUN mode
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: static/DHCP/PPPoE
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV(RFC 3263)
- QoS: 802.1p/Q tagging (VLAN),Layer 3 ToS, and DSCP
- SRTP for voice and video
- Transport Layer Security (TLS)
- HTTPS certificate manager
- AES encryption for configuration file
- Digest authentication using MD5/MD5-sess
- Admin/user mode
Management
- Configuration: browser/phone/auto-provision
- Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
- Auto-provision with PnP
- TR069 Protocol optional
- BroadSoft device management
- Zero-sp-touch
- Reset to factory, Reboot
- Package tracing export, System log
Physical Features
- TI DaVinci dual-core chipset, Resistive touch screen
- 7″ digital TFT-LCD with 800×480 pixels resolution
- Rotatable CMOS sensor camera with 2M pixels
- 128MB flash and 256MB DDR2 memory
- 27 keys including 4 soft keys
- 6 feature keys: Mute/Camera/Phonebook/ Transfer/Redial/Hands-free
- 2xLEDs for power and status indication
- 2xRJ45 Ethernet 10/100M ports
- 1xUSB2.0 port, 1xSD card slot
- PSTN optional, 2.5mm headset port
- A/V out: RCA style stereo audio and composite video output
- Power adapter: AC 100~240V input and DC 5V/3A output
- Power over Ethernet (PoE) optional: IEEE 802.3af, Class 0
- Power consumption: 4~10W
- Net weight: 1.2Kg
- Dimension: 286x89x45mm
- Operating humidity: 10~95%
- Storage temperature: up to 60°C
